Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of EVAP Canister Vent Solenoid Valve Electrical Connector
    GM1652166Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the evaporative emission (EVAP) canister harness electrical connector (2) from the EVAP vent solenoid valve.
  3. Clean away any debris that may be present around the EVAP canister vent solenoid valve.

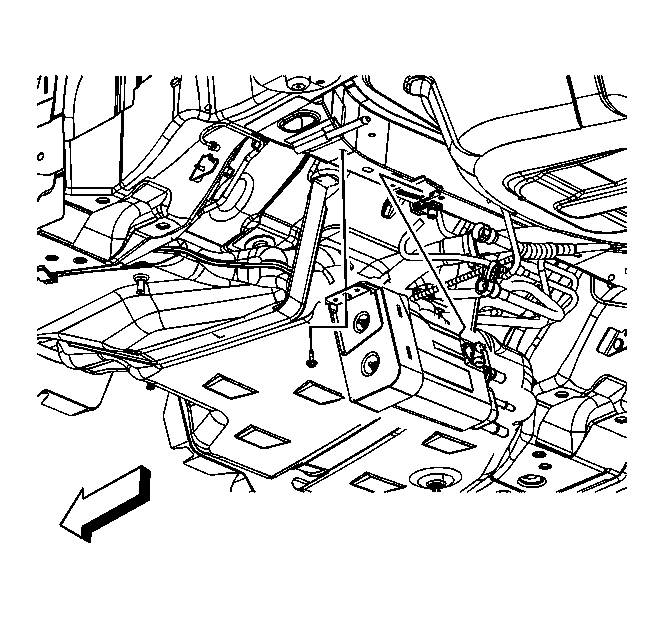

    4. Fig 2: View Of EVAP Canister Bolt
    GM1652165Courtesy of GENERAL MOTORS CORP.
  4. Remove the EVAP canister bolt.
  5. Lower the EVAP canister.
    6. Fig 3: Identifying EVAP Canister Vent Valve
    GM1742796Courtesy of GENERAL MOTORS CORP.
  6. Rotate the EVAP canister vent solenoid valve counterclockwise in order to release it from the locked position.
    7. Fig 4: Identifying EVAP Canister
    GM1742802Courtesy of GENERAL MOTORS CORP.
  7. Remove the EVAP canister vent solenoid valve from the canister.
