Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of EVAP Canister Bolt
    GM1652165Courtesy of GENERAL MOTORS CORP.
  1. Insert the retaining tab on the EVAP canister into the slotted bracket on the vehicle underbody.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the EVAP canister bolt and tighten to 10 N.m (89 lb in).

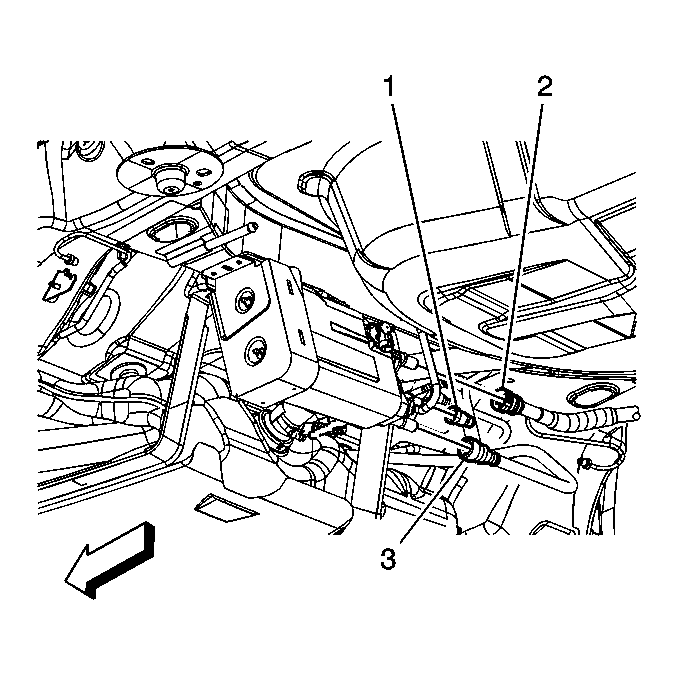

    3. Fig 2: View Of Fuel Tank EVAP Line Quick Connect Fittings
    GM1651435Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel tank EVAP line quick connect fittings (1, 3) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Connect the fuel fill vent pipe quick connect fitting (2) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
    5. Fig 3: View Of EVAP Canister Vent Solenoid Valve Electrical Connector
    GM1652166Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP canister harness electrical connector (1) to the fuel tank pressure sensor.
  6. Connect the EVAP canister harness electrical connector (2) to the EVAP canister vent solenoid valve.
  7. Lower the vehicle.
