Evaporative Emission Canister Purge Solenoid Valve Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

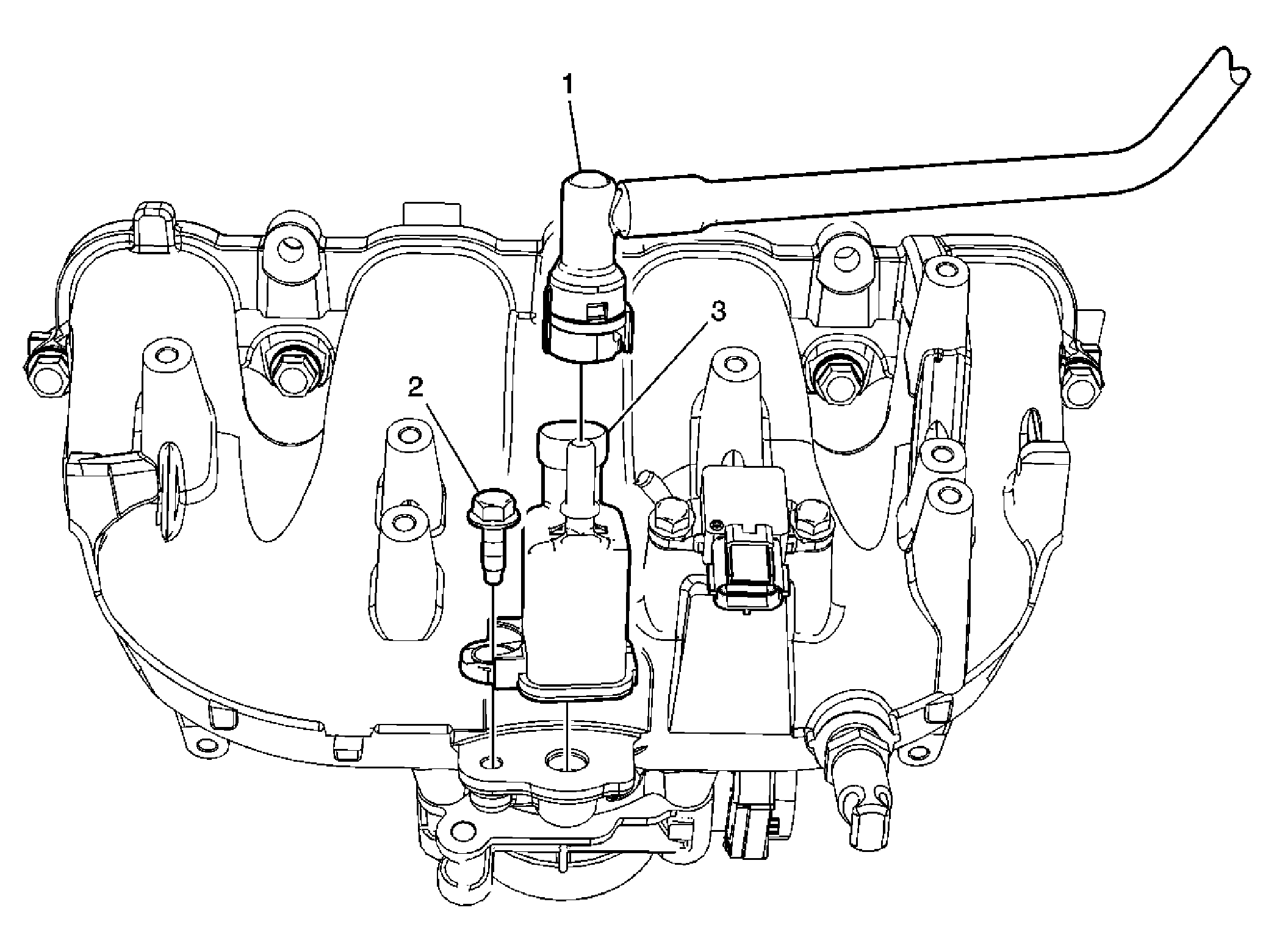

| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission Canister Purge Tube Refer to Plastic Collar Quick Connect Fitting Service . |
| 2 | Evaporative Emission Canister Purge Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Evaporative Emission Canister Purge Solenoid Valve Procedure: Disconnect the electrical connector. |
