Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying CKP Sensor
    GM1578475Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring seal with clean engine oil.
  2. Install the CKP sensor.
    CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor bolt and tighten to 10 N.m (89 lb in).

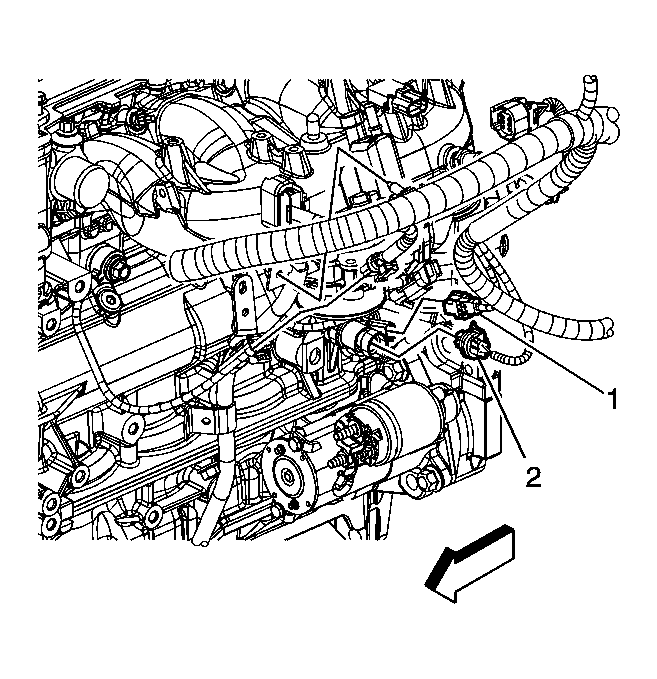

    4. Fig 2: CKP Sensor Electrical Connector
    GM1716603Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the CKP sensor.
  5. Install the starter. Refer to Starter Replacement .
