Charge Air Bypass Valve Vacuum Tank Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

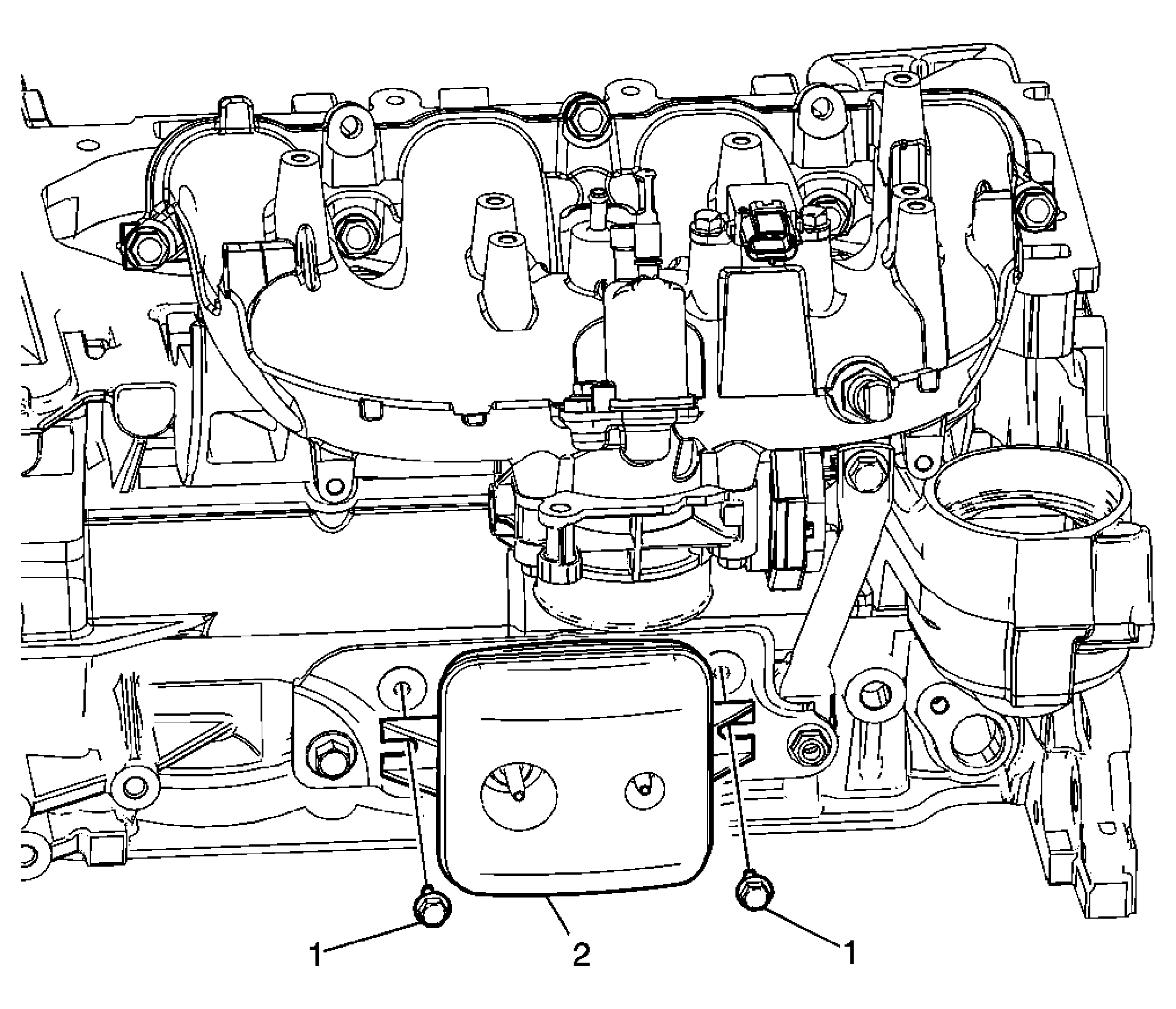

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the charge air cooler outlet pipe from the intake manifold. Refer to Charge Air Cooler Outlet Pipe Replacement . |
|
| 1 | Charge Air Bypass Valve Vacuum Tank Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Procedure: Disconnect the vacuum hoses. Tighten: 10 N.m (89 lb in) |
| 2 | Charge Air Bypass Valve Vacuum Tank |
