Charge Air Bypass Valve Solenoid Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

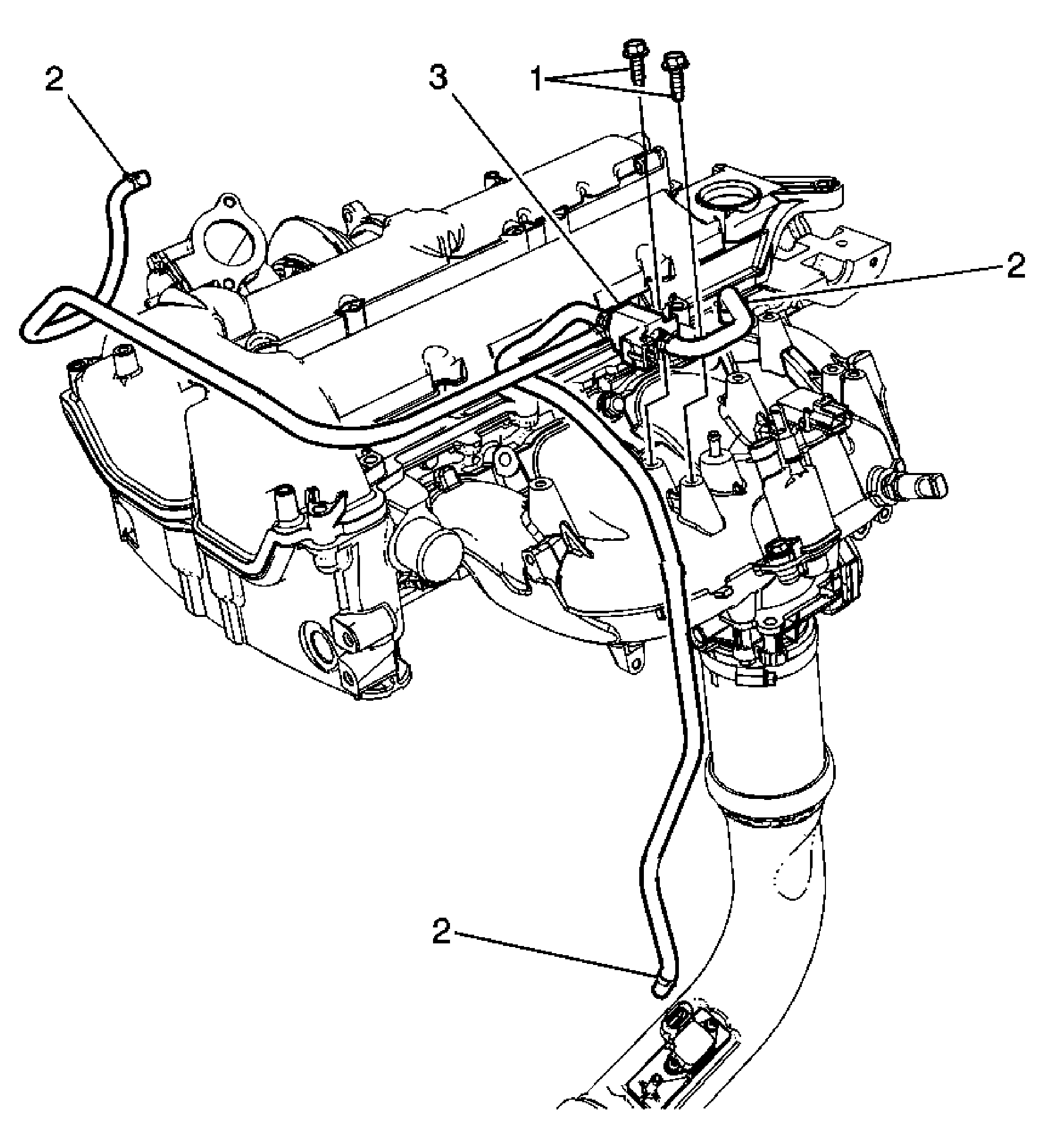

Fig 1: Identifying Charge Air Bypass Valve Solenoid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Charge Air Bypass Valve Solenoid Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Charge Air Bypass Solenoid Vacuum Hose Clamp (Qty: 3) Procedure: Reposition the clamps in order to remove the hoses. Tip: Note the hose locations for proper reinstallation.
3	Charge Air Bypass Valve Solenoid Procedure: Disconnect the electrical connector.
