Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Intake & Exhaust Camshaft Position Actuators
    GM2034041Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the solenoid valve O-ring seals with clean engine oil.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the intake (2) CMP actuator solenoid valve and bolt, as required.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Install the exhaust (1) CMP actuator solenoid valve and bolt, as required.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

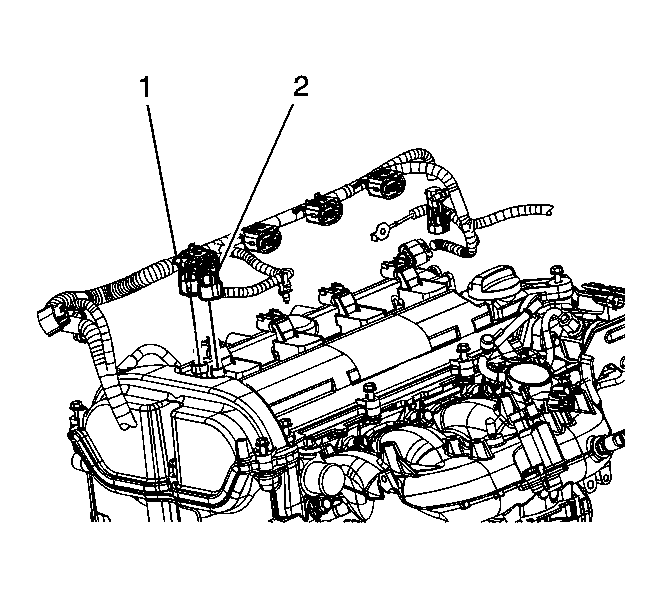

    4. Fig 2: View Of Intake & Exhaust Camshaft Position Actuator Solenoid Valve
    GM2034040Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector to the intake (1) or exhaust (2) camshaft position actuator solenoid valve, as required.
