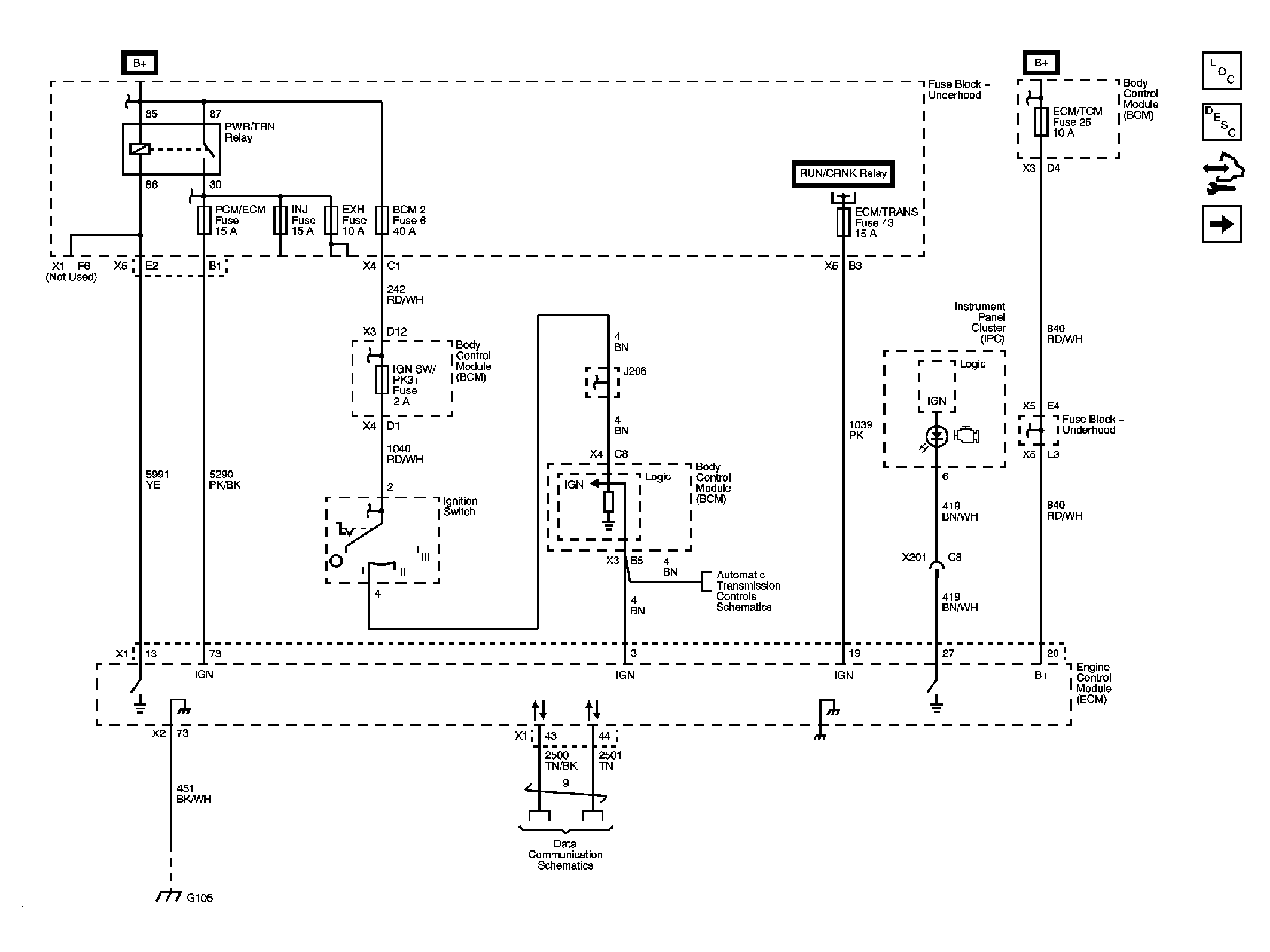

Fig 1: Power, Ground, MIL, Communication
Courtesy of GENERAL MOTORS CORP.

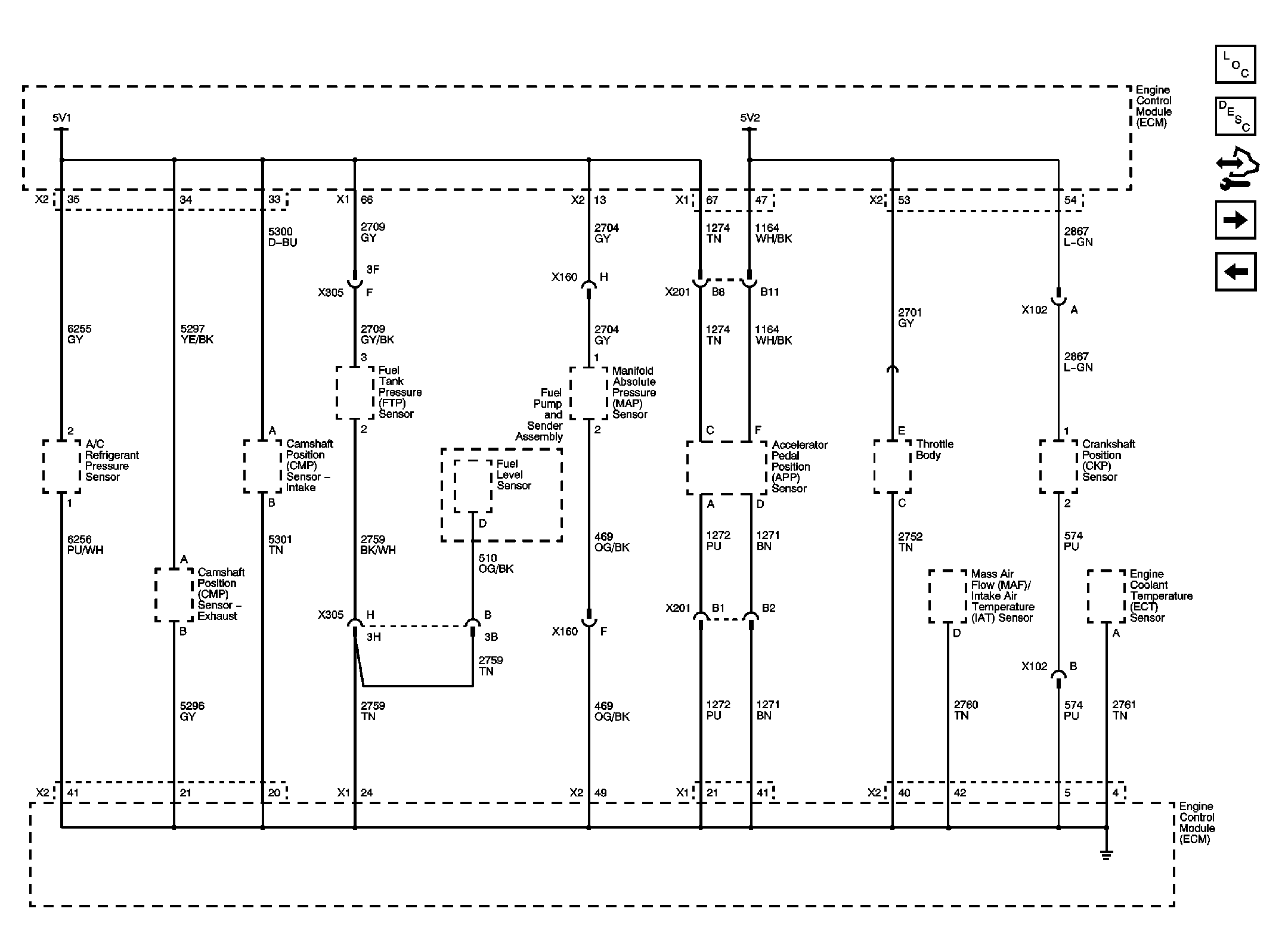

Fig 2: 5-Volt and Low Reference Bus
Courtesy of GENERAL MOTORS CORP.

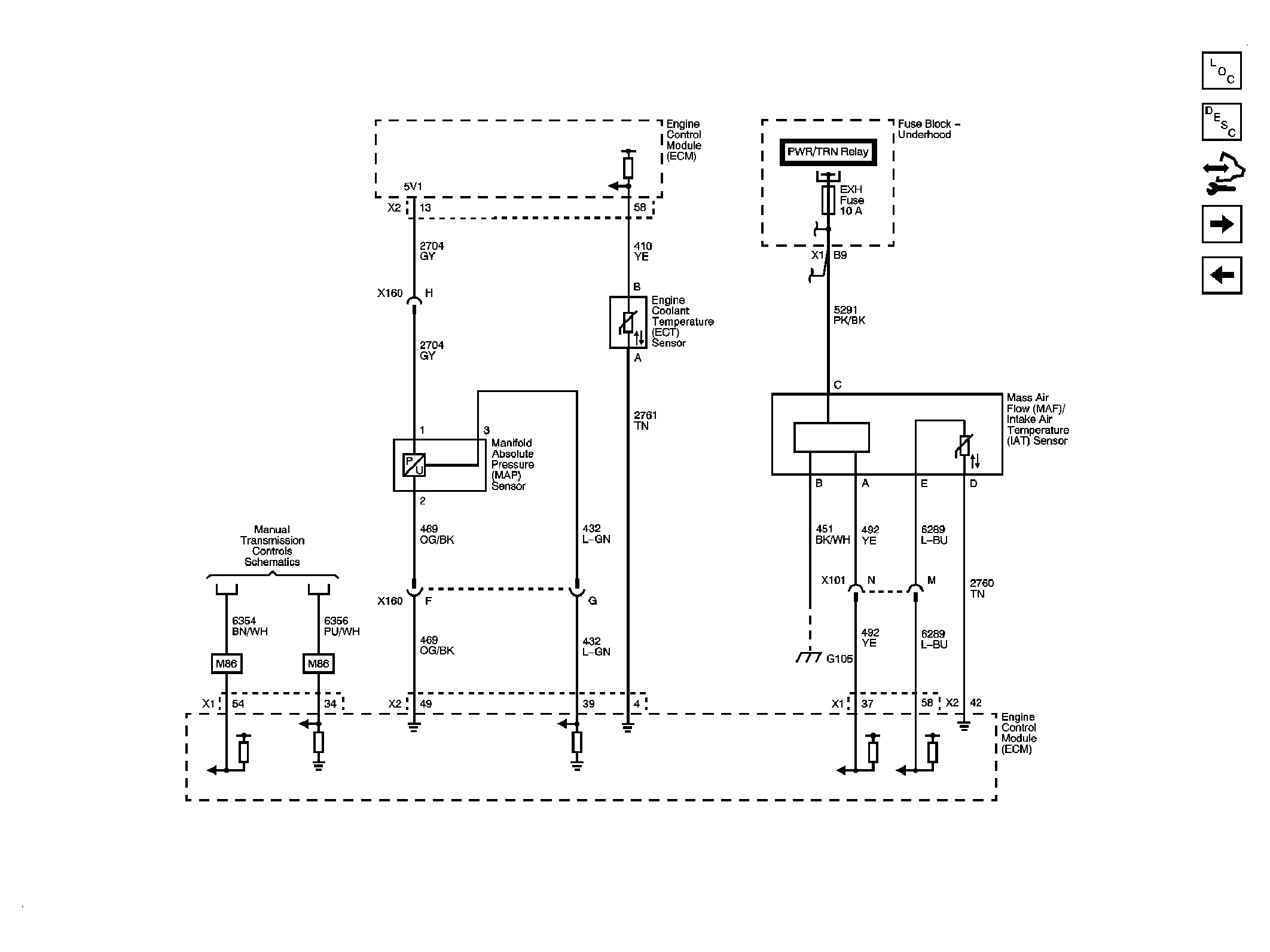

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF/IAT
Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Data Sensors - HO2S
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors - APP, TAC
Courtesy of GENERAL MOTORS CORP.

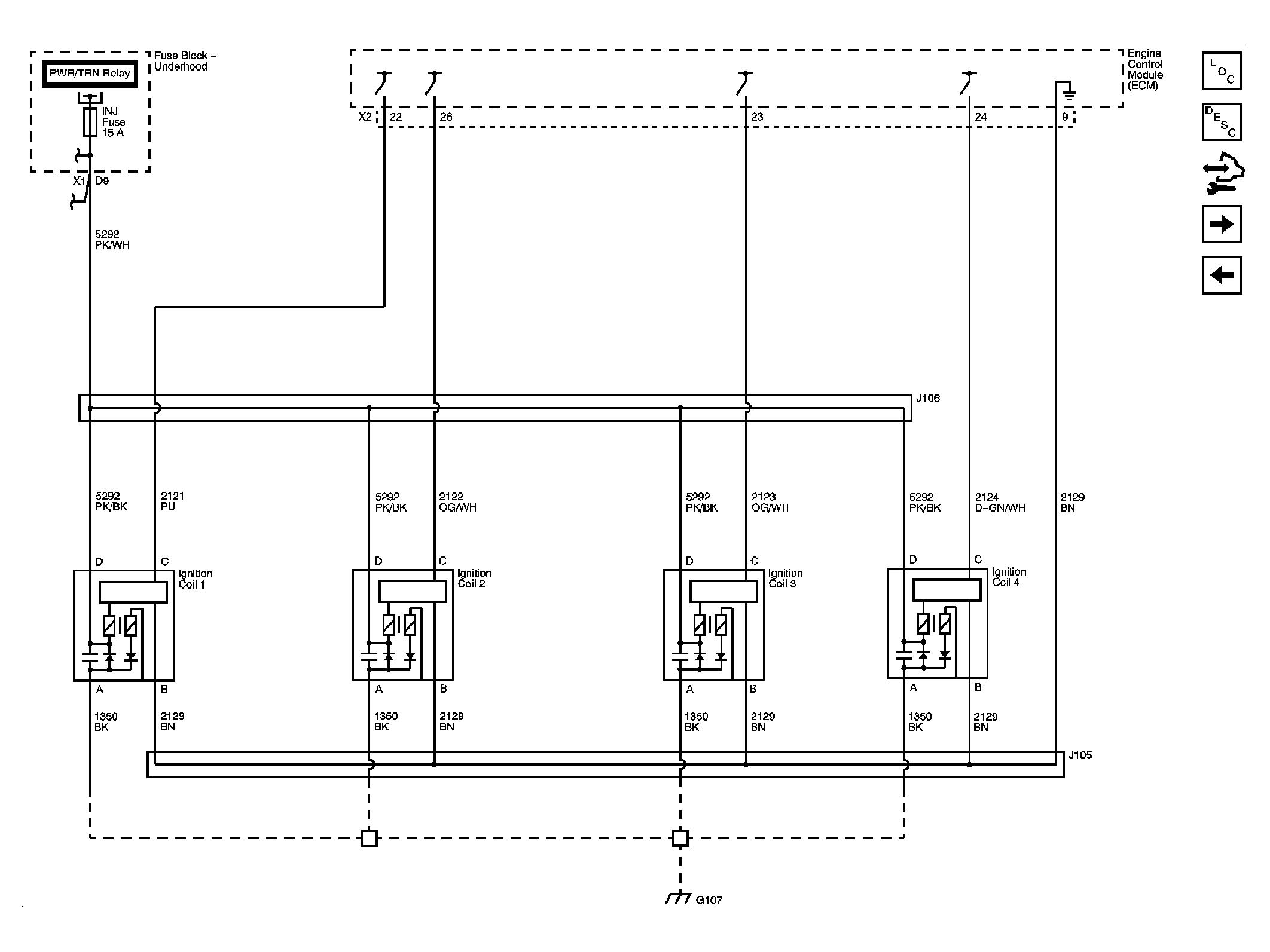

Fig 6: Ignition Controls - Ignition System
Courtesy of GENERAL MOTORS CORP.

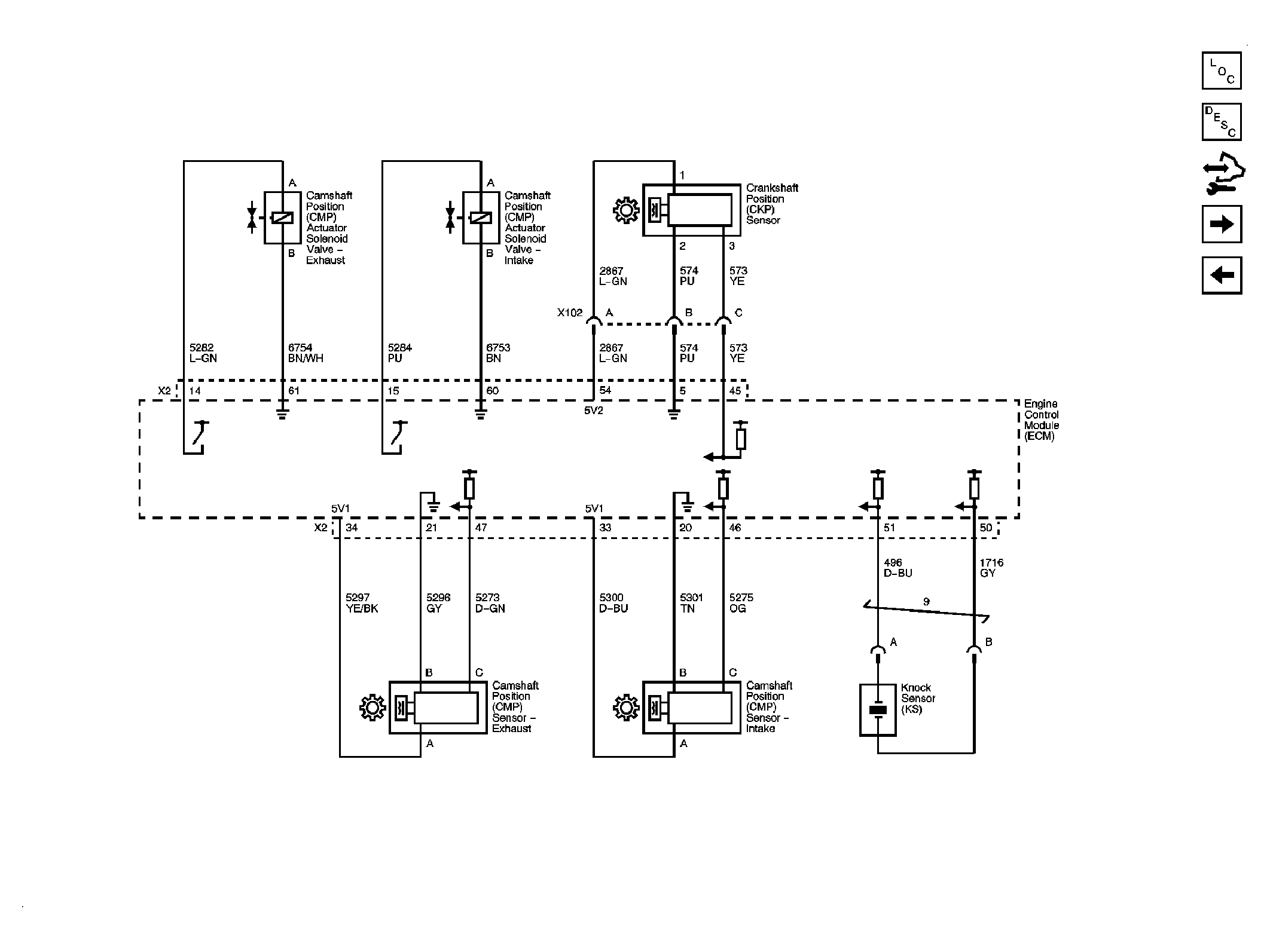

Fig 7: Ignition Controls - Sensors
Courtesy of GENERAL MOTORS CORP.

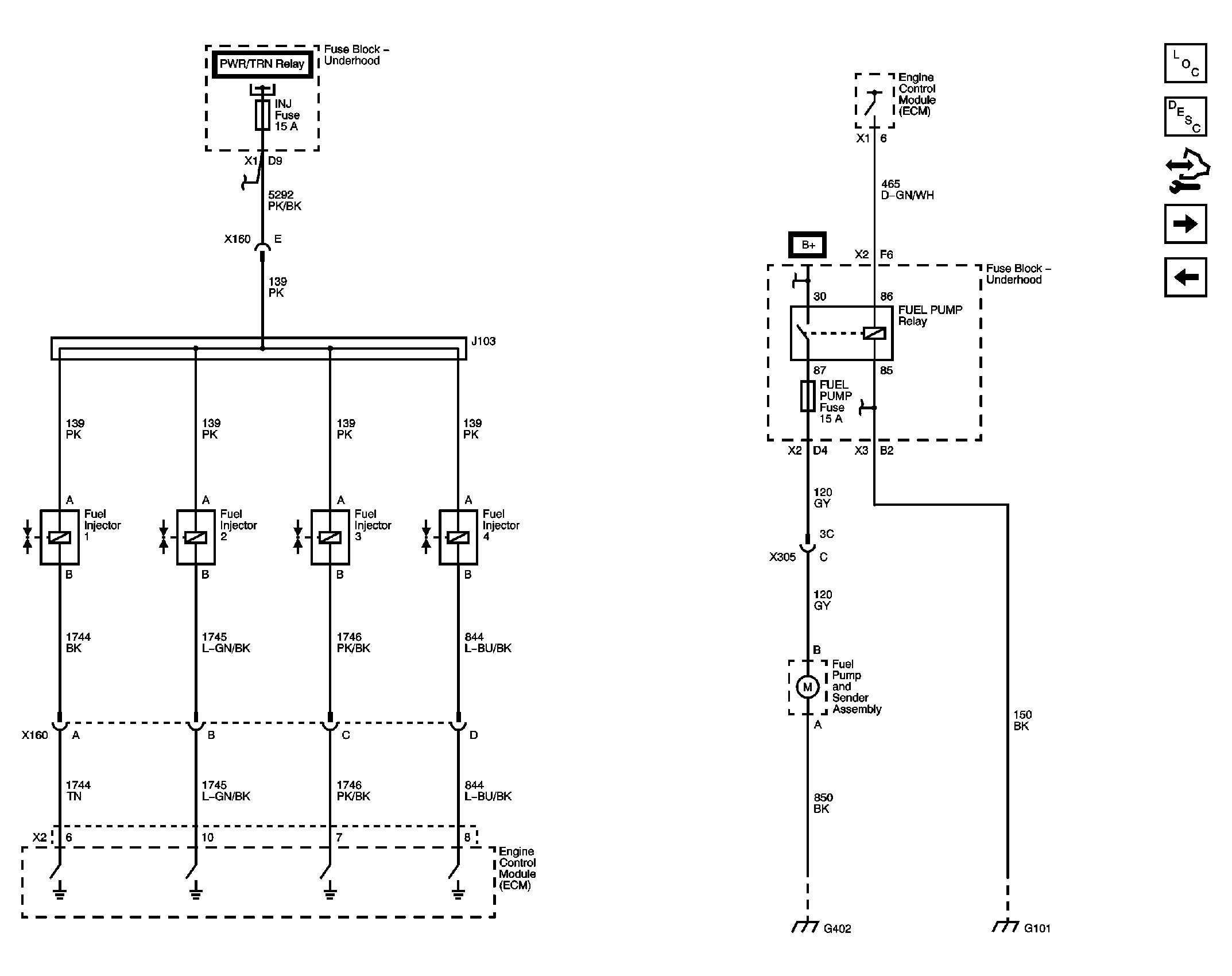

Fig 8: Fuel Controls - Fuel Injectors
Courtesy of GENERAL MOTORS CORP.

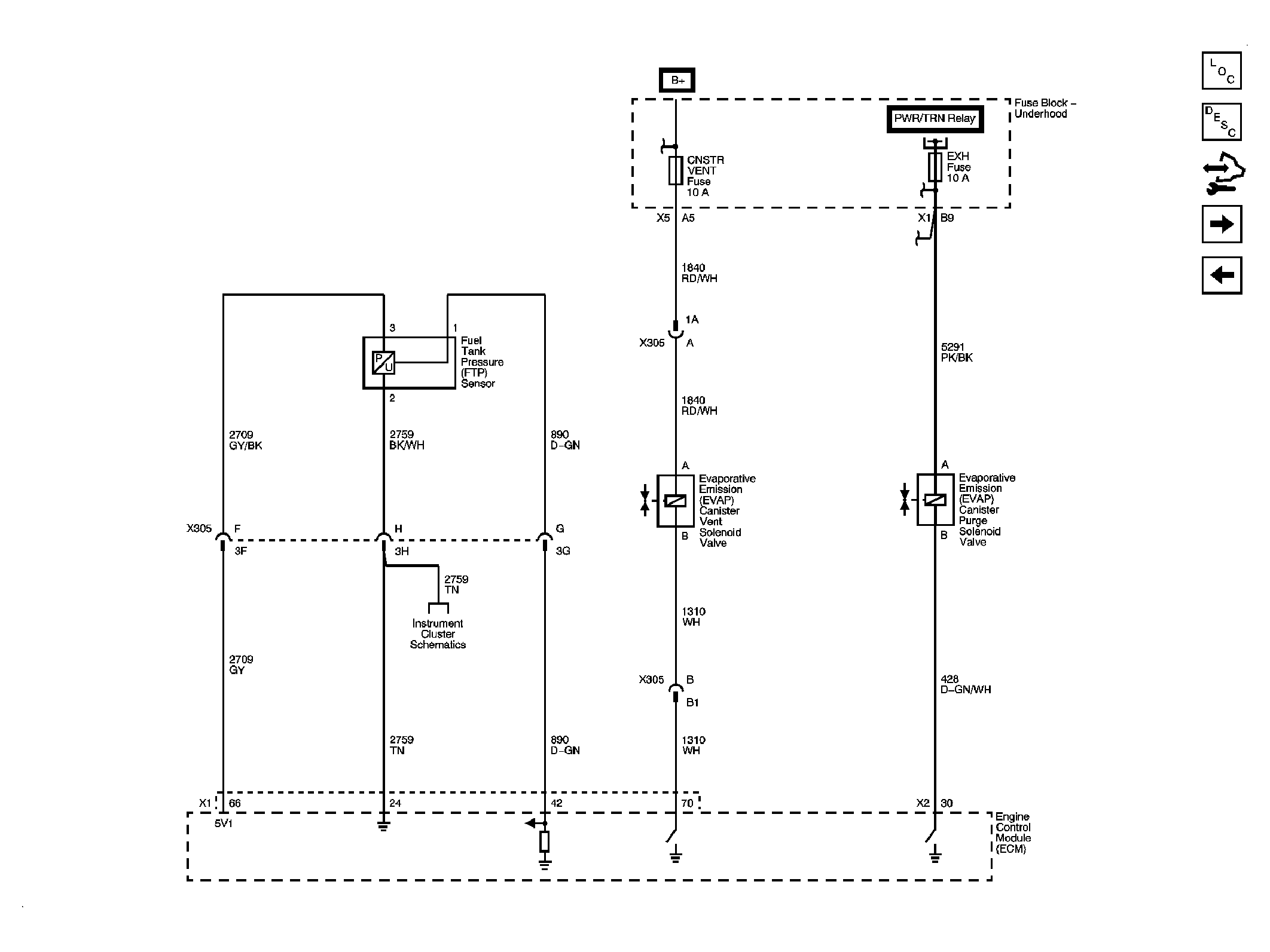

Fig 9: Fuel Controls - EVAP Controls
Courtesy of GENERAL MOTORS CORP.

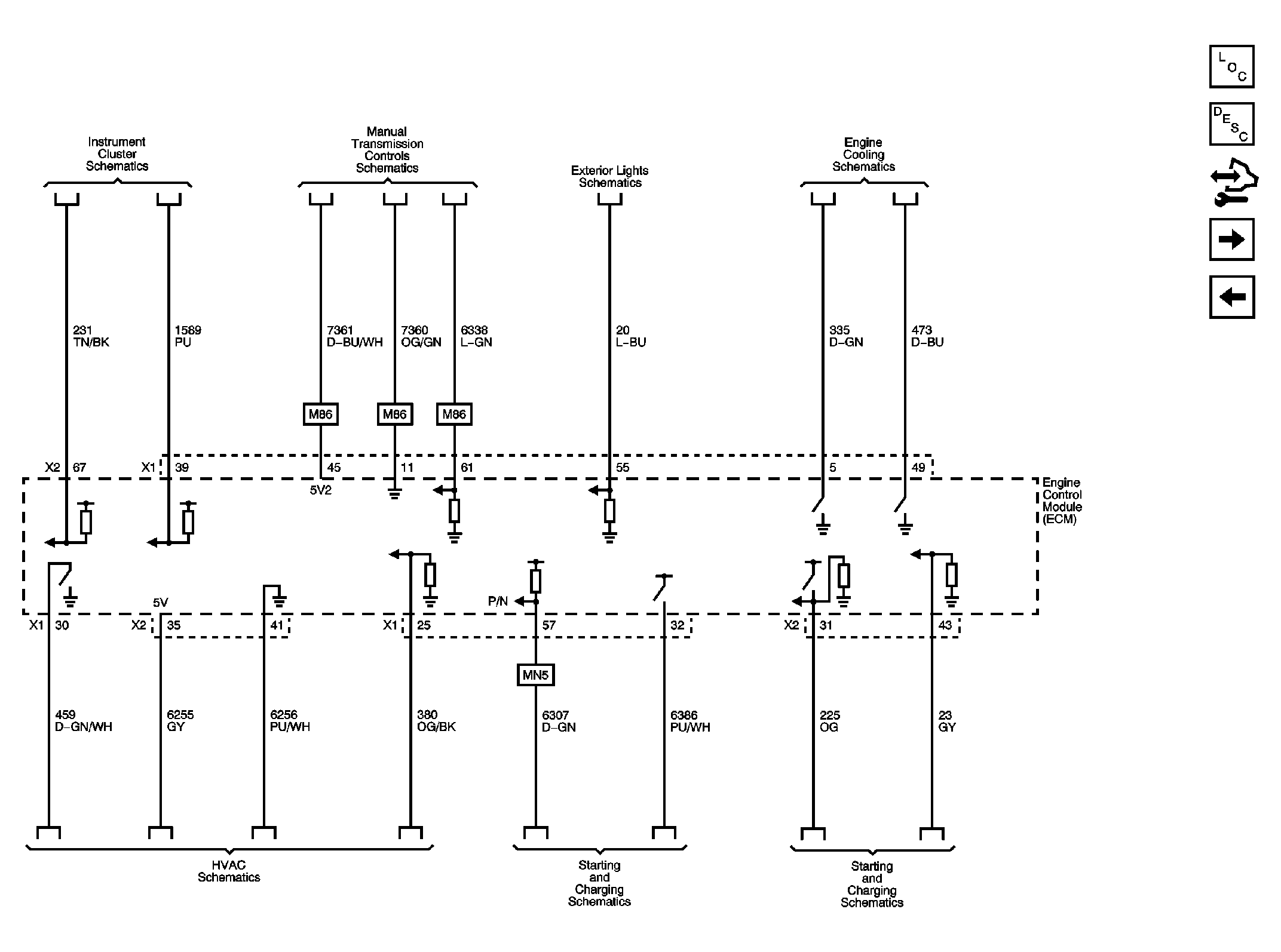

Fig 10: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.

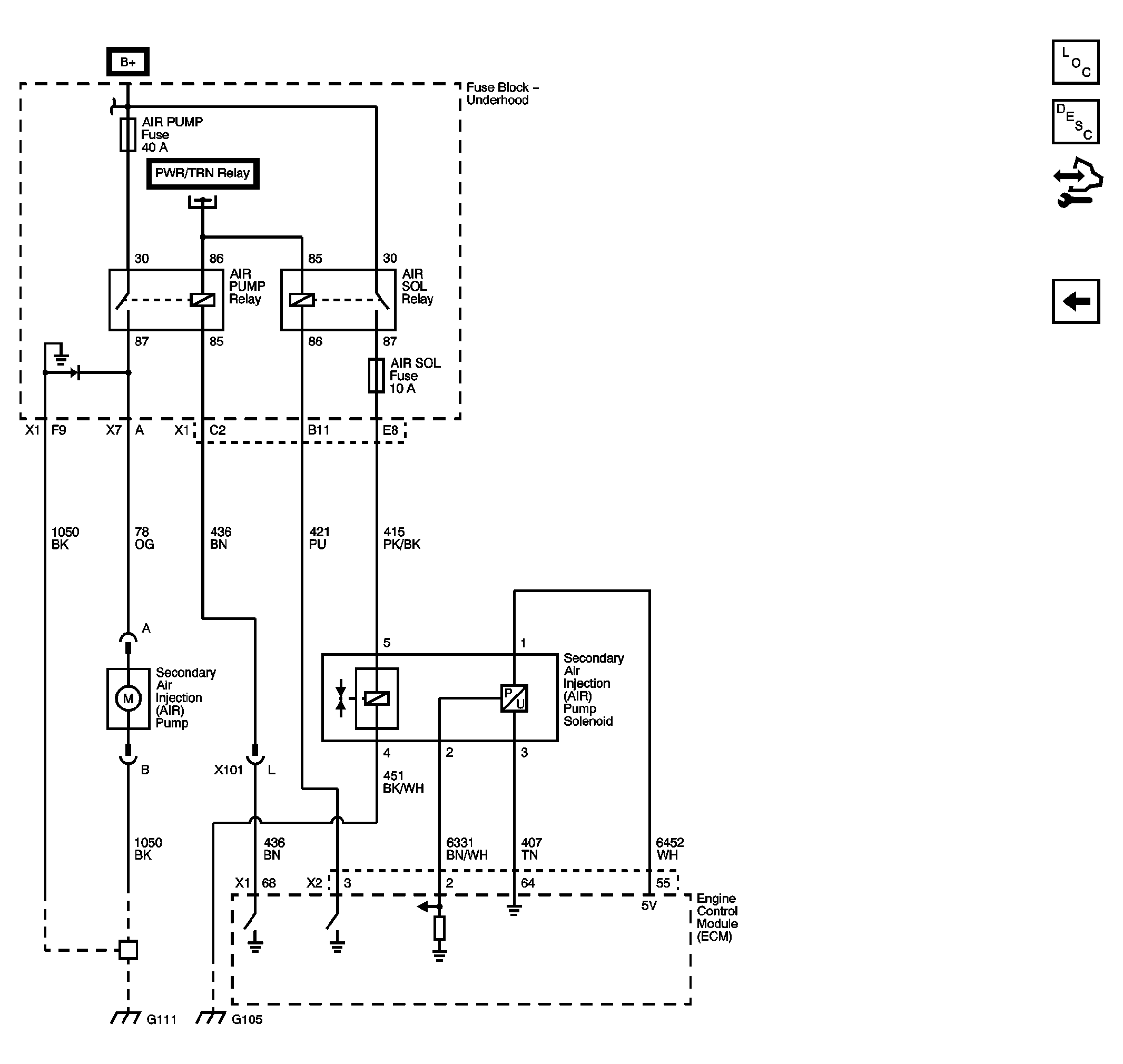

Fig 11: Secondary Air Injection (AIR) System (NU6)
