Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

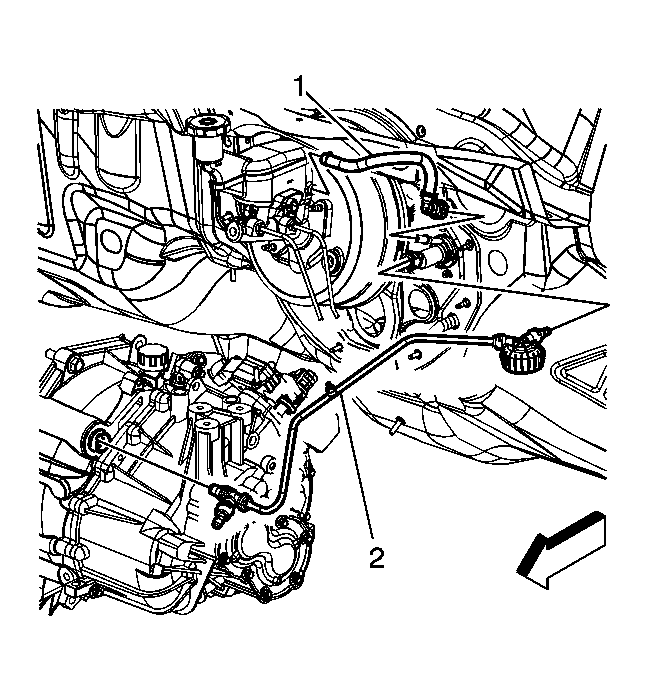

    Fig 1: Clutch Line To Clutch Master Cylinder
    GM1549846Courtesy of GENERAL MOTORS CORP.
  1. Remove the UBEC. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
    2. CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
  2. Place a shop towel under the clutch master cylinder and brake master cylinder reservoir in order to catch any additional fluid loss.
  3. Disconnect the clutch hose (1) from the clutch master cylinder and brake master cylinder reservoir.
  4. Disconnect the clutch line (2) at the clutch actuator cylinder and the transaxle and drain the fluid into a suitable container.
