Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Clutch Cover And Clutch Disc
    GM100733Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch disc and the clutch cover.
  2. Hand start the clutch cover to flywheel bolts, leaving the clutch cover loose enough to reposition for alignment.

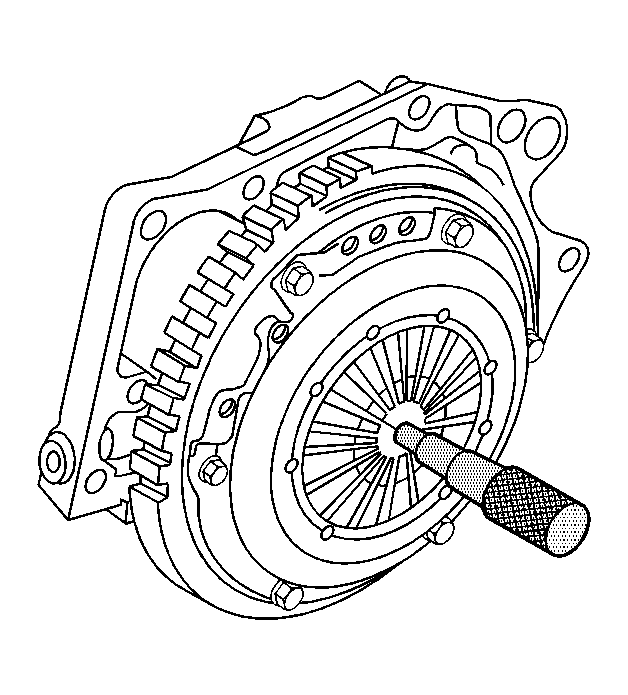

    3. Fig 2: View Of J 43482 Supporting The Clutch Cover
    GM892789Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43482  in order to support the clutch cover to the flywheel assembly. See Special Tools .
    4. Fig 3: Identifying Clutch Cover-To-Flywheel Bolt Tightening Sequence
    GM100744Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Tighten the clutch cover to flywheel bolts in the sequence shown to 30 N.m (22 lb ft).
  5. Recheck each bolt torque using the tightening sequence.
  6. Remove the J 43482  . See Special Tools .
  7. Install the transmission. Refer to Transmission Replacement .
  8. Bleed the hydraulic system. Refer to Hydraulic Clutch System Bleeding .
  9. Connect the negative battery cable.
