Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

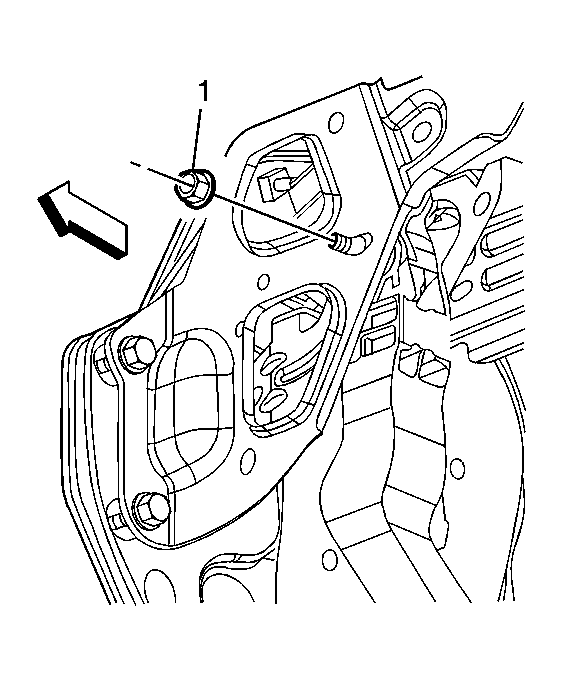

Fig 1: Identifying Clutch Pedal Pivot Nut

Courtesy of GENERAL MOTORS CORP.

Remove the clutch pedal pivot nut (1).

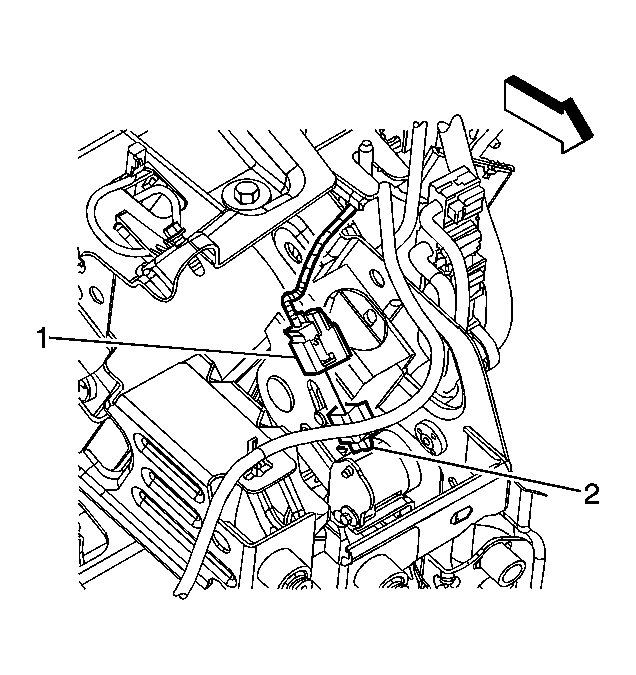

Fig 2: Identifying Clutch Position Sensor & Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector (1) from the clutch position sensor (2)

Fig 3: View Of Clutch Master Cylinder Pushrod & Retainer

Courtesy of GENERAL MOTORS CORP.

Depress the tabs of the clutch master cylinder pushrod retainer and release the clutch pedal from the pushrod.

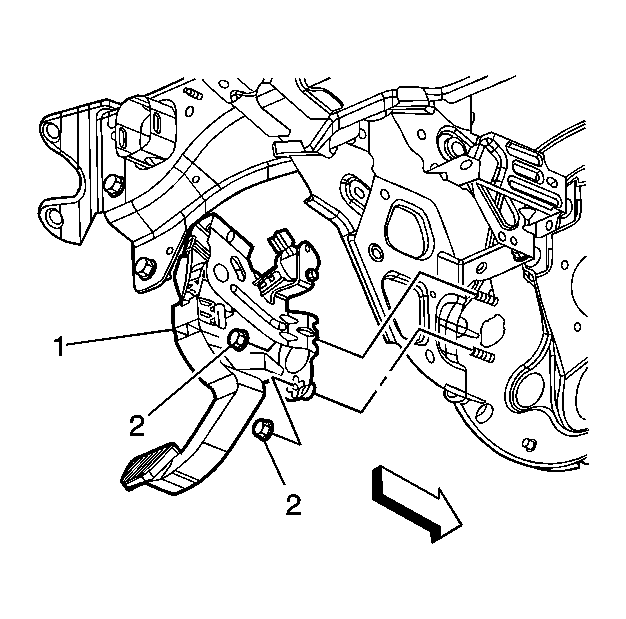

Fig 4: View Of Clutch Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the clutch pedal bracket to front of dash nuts (2).
Remove the steering column mounting bolts. Move the steering column enough to have clearance to remove the clutch pedal and pedal bracket assembly. Refer to Steering Column Replacement .
Remove the clutch pedal assembly (1).
