Clutch Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

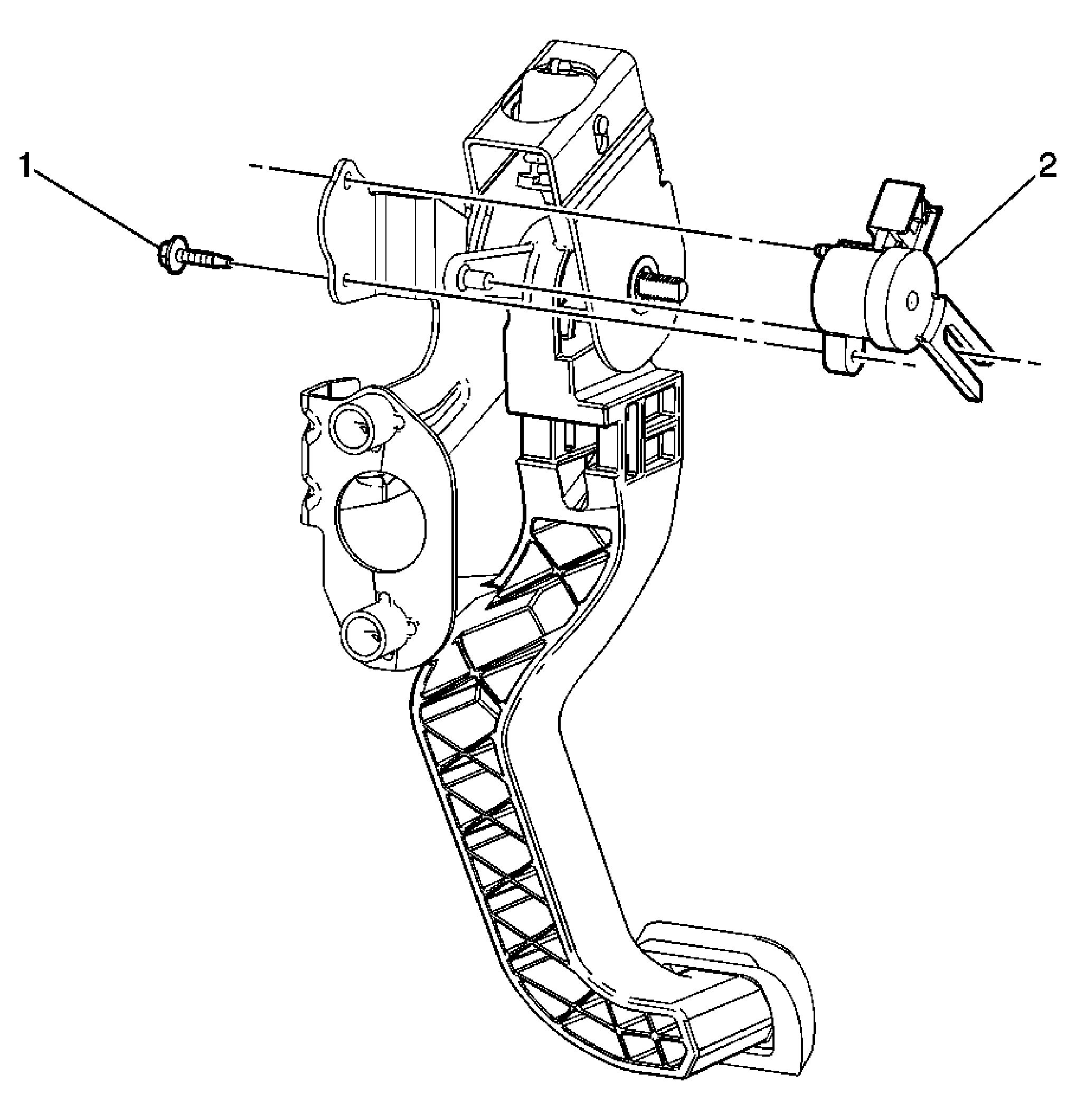

Fig 1: Identifying Clutch Pedal Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Clutch Pedal Position Sensor Procedure Disconnect the clutch pedal position switch electrical connector. WARNING: Replacement or reprogramming of the ECM, or replacement of the clutch pedal position sensor (CPPS) or clutch pedal requires that a CPPS learn procedure be performed. Failure to perform the CPPS learn procedure may result in personal injury or damage to the vehicle or its components if the vehicle is in gear and the starter motor is accidentally engaged. Perform the clutch pedal position sensor learn procedure. Refer to Clutch Pedal Position Sensor Learn for Getrag 5 speed transmission or Clutch Pedal Position Sensor Learn for MU3 transmission.

Callout

Component Name

Clutch Pedal Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Clutch Pedal Position Sensor

Procedure

Disconnect the clutch pedal position switch electrical connector.

WARNING: Replacement or reprogramming of the ECM, or replacement of the clutch pedal position sensor (CPPS) or clutch pedal requires that a CPPS learn procedure be performed. Failure to perform the CPPS learn procedure may result in personal injury or damage to the vehicle or its components if the vehicle is in gear and the starter motor is accidentally engaged.

Perform the clutch pedal position sensor learn procedure. Refer to Clutch Pedal Position Sensor Learn for Getrag 5 speed transmission or Clutch Pedal Position Sensor Learn for MU3 transmission.
