Removal Procedure
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the clutch pedal retainer from the front of the clutch pedal assembly.
- Pull the clutch pedal upward in order to disengage the clutch master cylinder pushrod from the clutch pedal.
- Remove the UBEC. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
- Place a shop towel under the clutch master cylinder in order to catch any fluid loss.

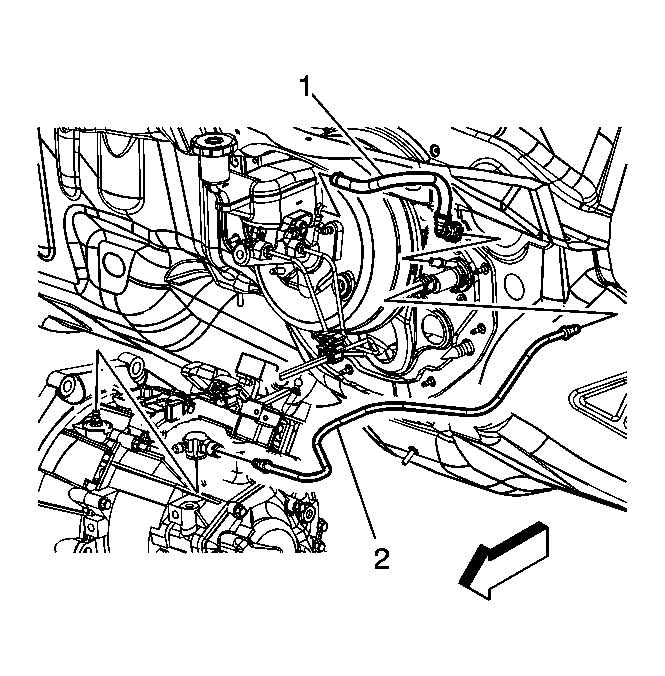

- Disconnect the clutch hose (1) from the clutch master cylinder.
- Disconnect the clutch line (2) from the clutch master cylinder.
- Cap the reservoir and hydraulic lines in order to prevent fluid loss and contamination.

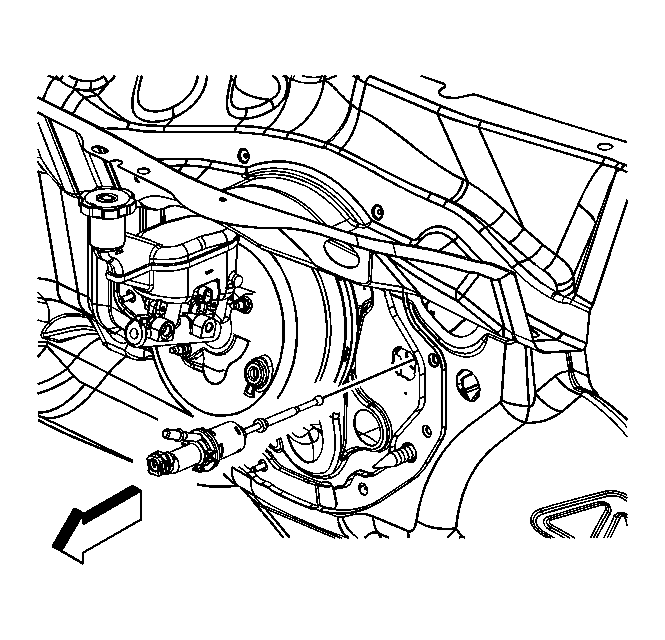

- Rotate the clutch master cylinder one 1/4 turn clockwise and remove the cylinder from the vehicle.
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution
.
