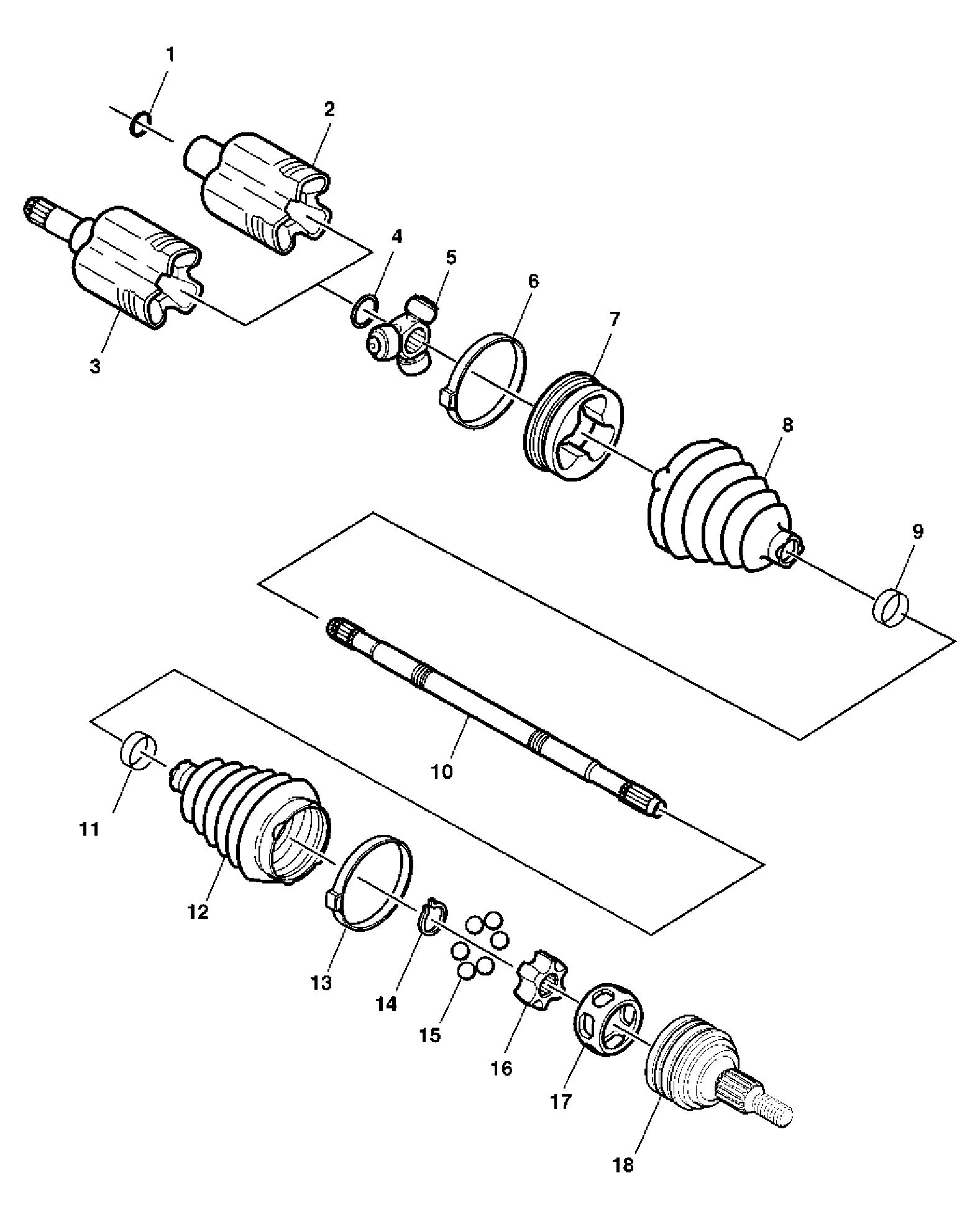

Wheel Drive Shafts Disassembled Views (Front)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Retaining Ring |
| 2 | Housing Assembly |
| 3 | Retainer and Housing Assembly |
| 4 | Spacer Ring |
| 5 | Tripot Joint Spider Assembly |
| 6 | Boot Retaining Clamp |
| 7 | Trilobal Tripot Bushing |
| 8 | Tripot Joint Boot |
| 9 | Swage Ring |
| 10 | Halfshaft Bar |
| 11 | Swage Ring |
| 12 | CV Joint Boot |
| 13 | Boot Retaining Clamp |
| 14 | Race Retaining Ring |
| 15 | Chrome Alloy Ball |
| 16 | CV Joint Inner Race |
| 17 | CV Joint Cage |
| 18 | CV Joint Outer Race |
