Hydraulic Brake Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

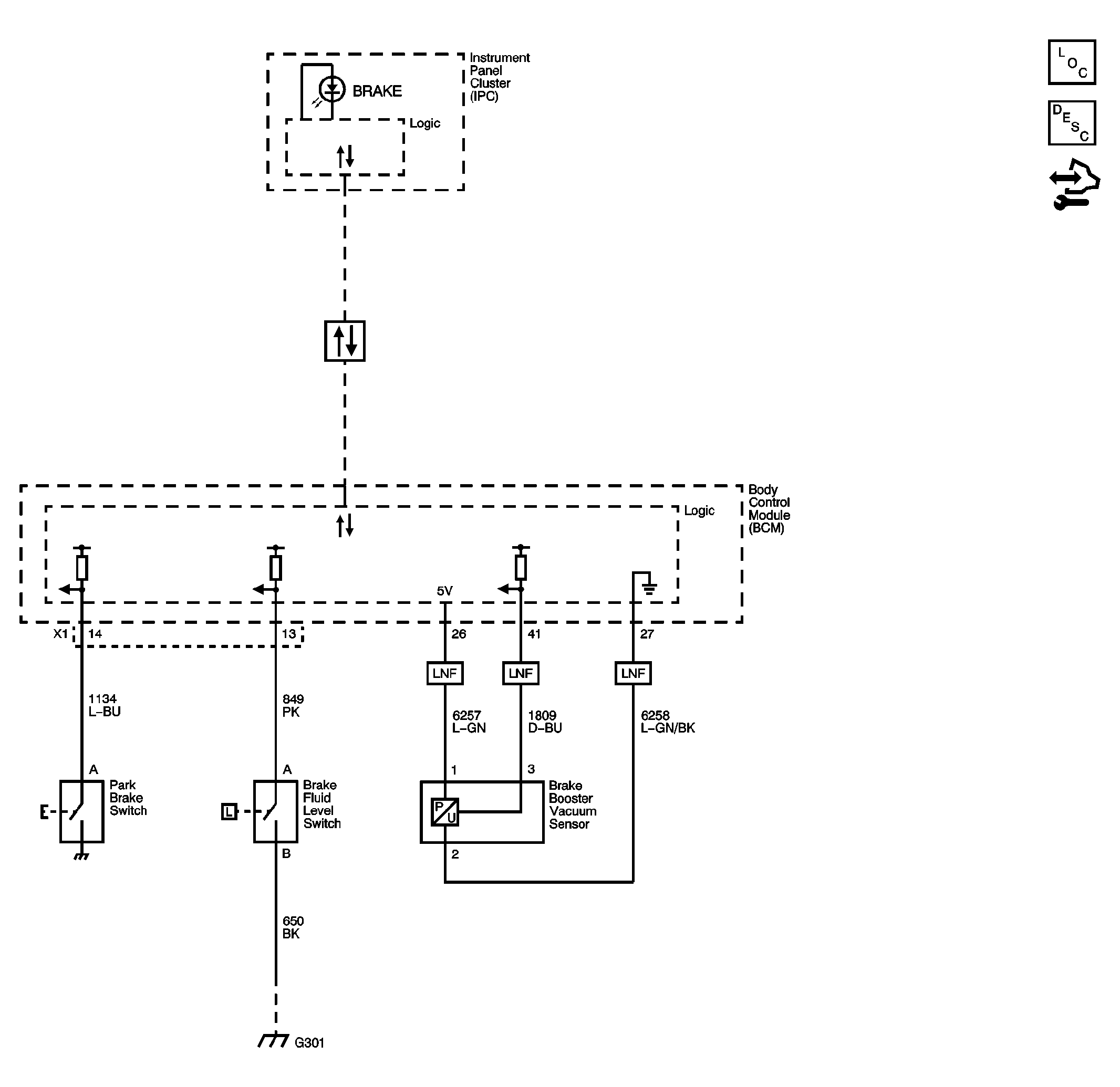

Fig 1: Park Brake Switch, Brake Warning
GM2248381Courtesy of GENERAL MOTORS CORP.
