Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

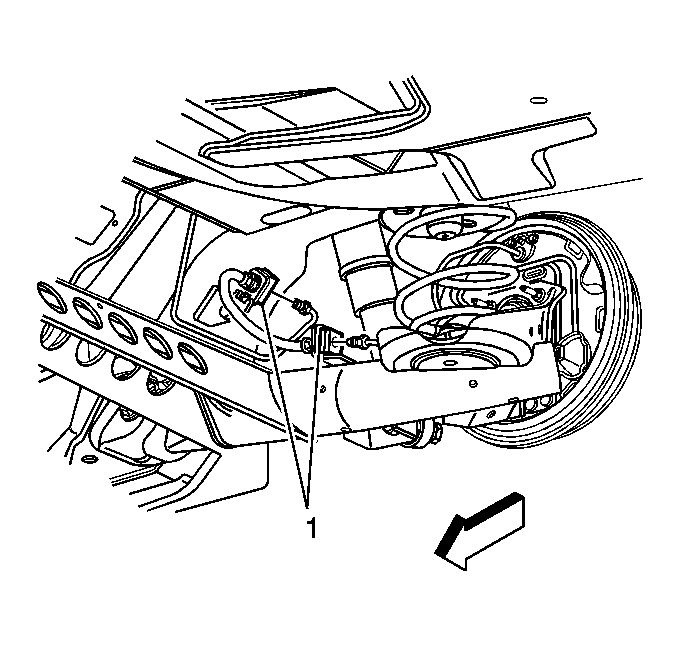

    Fig 1: Locating Brake Hose Retaining Clips
    GM891935Courtesy of GENERAL MOTORS CORP.
  1. Install the brake hose to the brake hose mounting brackets. Align the hose fittings with the notch in the brackets.
  2. Install the hose retaining clips (1) onto the hose fittings at the hose brackets.
    3. CAUTION: Refer to Fastener Caution .
  3. Using a backup wrench on the hose fitting, connect the brake pipe fittings at the rear brake hose.

    Tighten:  Tighten the fittings to 21 N.m (15 lb ft).

  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  5. Ensure that the hose does not make contact with any part of the suspension. If the hose makes contact, remove the hose and correct the condition.
  6. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Rear Brake Caliper - Cobalt SS)  or Hydraulic Brake System Bleeding (Manual)  or Hydraulic Brake System Bleeding (Pressure) .
  7. Lower the vehicle.
