Master Cylinder Reservoir Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

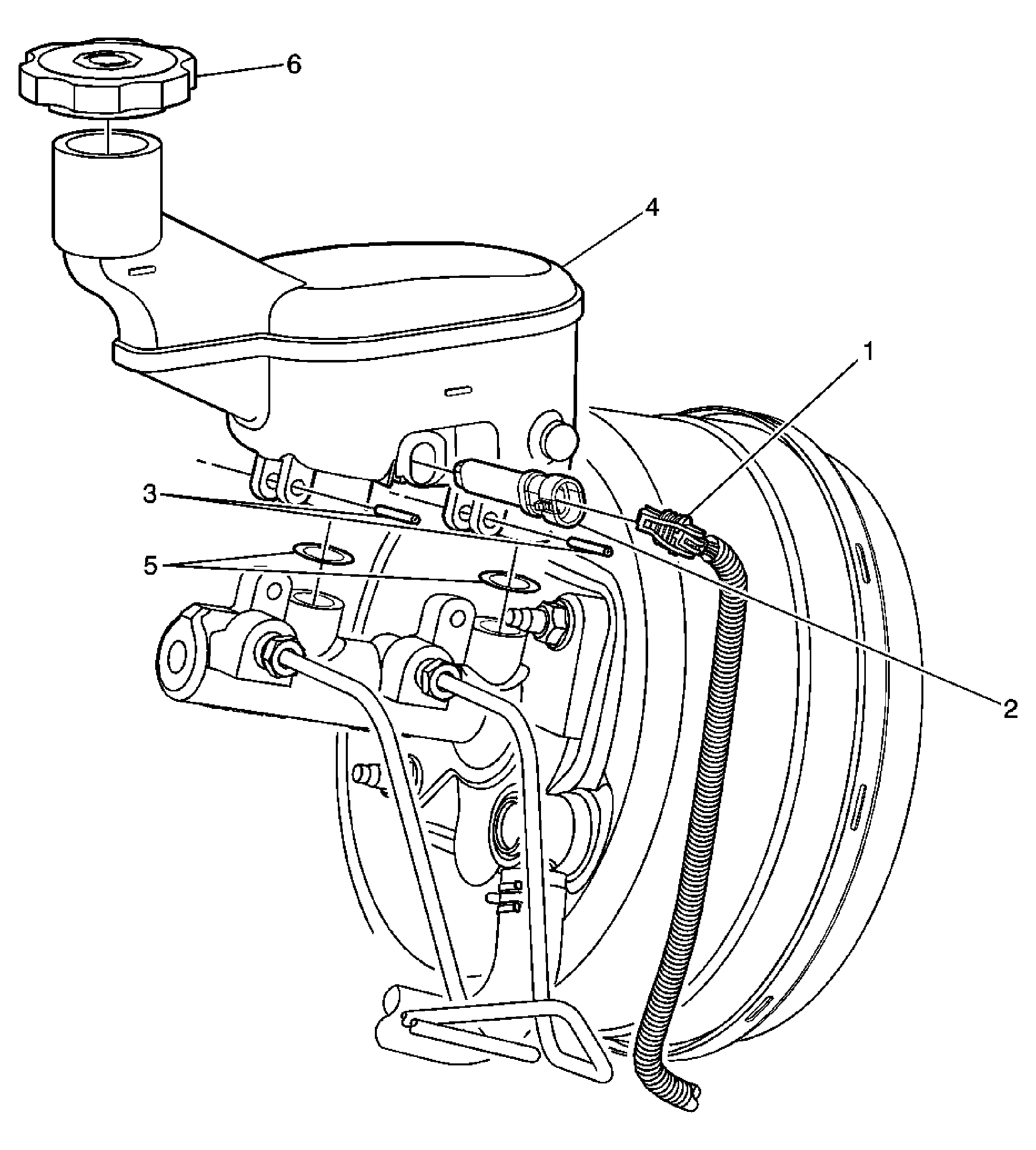

Fig 1: View Of Master Cylinder Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedure: Remove the brake master cylinder. Refer to Master Cylinder Replacement (Automatic Transmission) or Master Cylinder Replacement (Manual Transmission) .
1	Brake Fluid Indicator Switch Connector
2	Brake Fluid Level Indicator Switch
3	Brake Master Cylinder Reservoir Pin (Qty: 2)
4	Brake Master Cylinder Reservoir Tip: Drain the brake fluid from the reservoir. Secure the reservoir mounting flange in a vise.
5	Brake Master Cylinder Reservoir Seal (Qty: 2) Tip: Apply a small amount of clean Dot 3 brake fluid to the seals.
6	Brake Master Cylinder Reservoir Cap
