Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Brake Dust Warning .
WARNING: Refer to Brake Fluid Irritant Warning .
CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

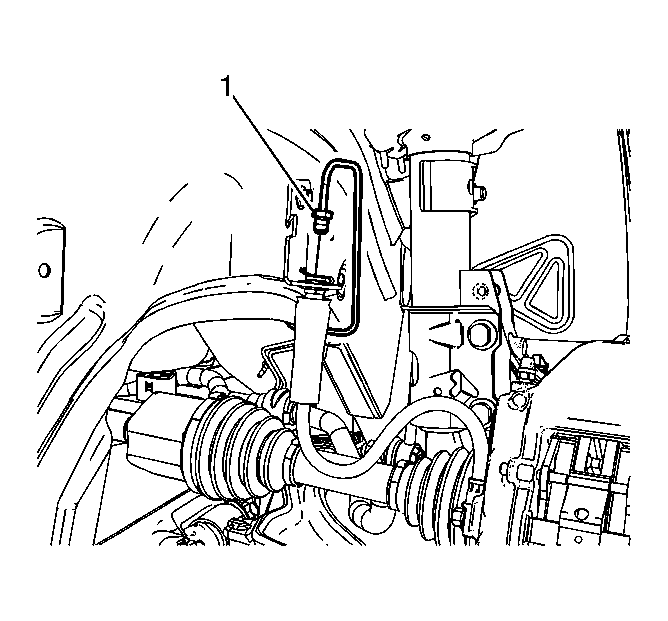

    3. Fig 1: View Of Front Brake Pipe Fitting
    GM1989058Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the front brake pipe fitting (1).

    Cap the brake pipe fitting to prevent brake fluid loss and contamination.

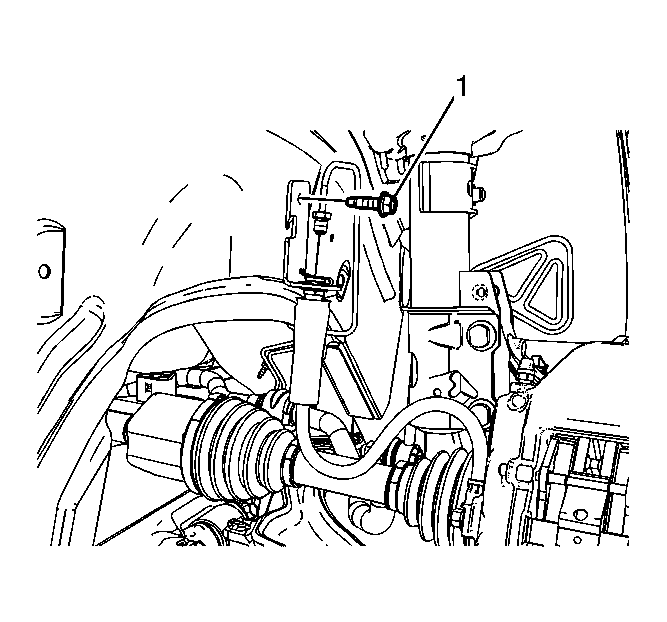

    4. Fig 2: Identifying Front Brake Hose Bracket Bolt
    GM1989059Courtesy of GENERAL MOTORS CORP.
  4. Remove the front brake hose bracket bolt (1).

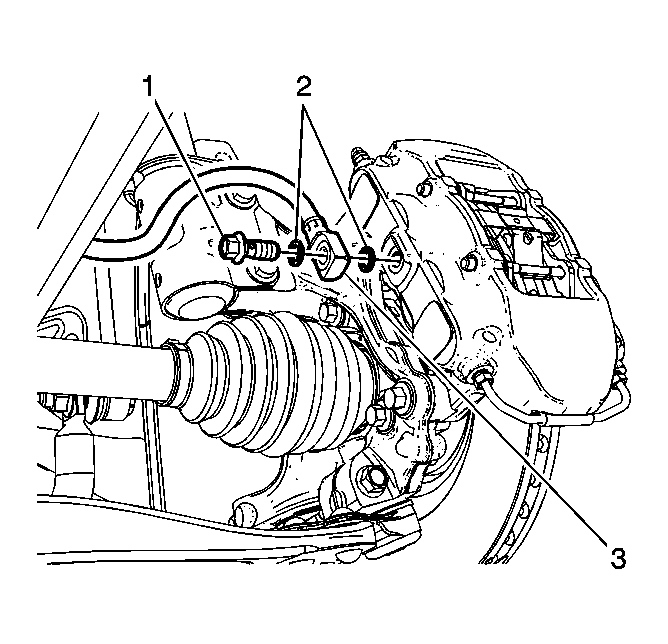

    5. Fig 3: Identifying Brake Hose, Fitting & Gaskets
    GM1989060Courtesy of GENERAL MOTORS CORP.
  5. Remove the brake hose fitting bolt (1).
  6. Remove the brake hose fitting gaskets (2) from the brake hose (3).

    Discard the brake hose fitting gaskets.

  7. Remove the brake hose.
