Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the brake drum. Refer to Brake Drum Replacement .

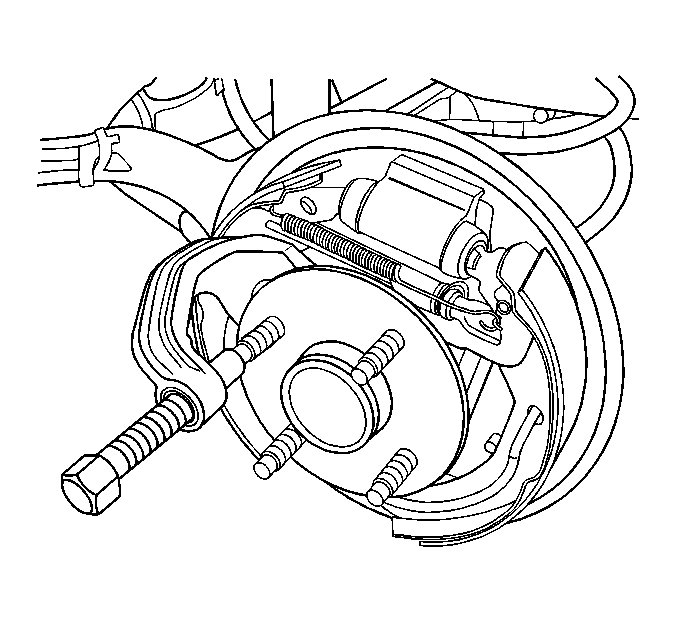

    4. Fig 1: Removing Wheel Stud
    GM890722Courtesy of GENERAL MOTORS CORP.
  4. Using the J 43631  , remove and discard the wheel stud.
