Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the wheel. Refer to Tire and Wheel Removal and Installation .

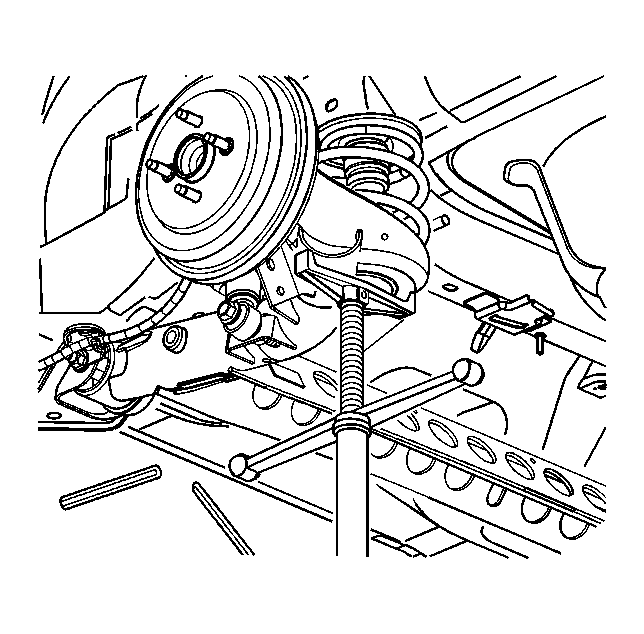

    3. Fig 1: Supporting Rear Axle With Tall Jack Stand
    GM855070Courtesy of GENERAL MOTORS CORP.
  3. Support the rear axle with a tall jack stand near the shock absorber.
    4. Fig 2: View Of Shock Absorber
    GM855039Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper and lower shock bolts.
  5. Remove the shock from the vehicle.
