Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

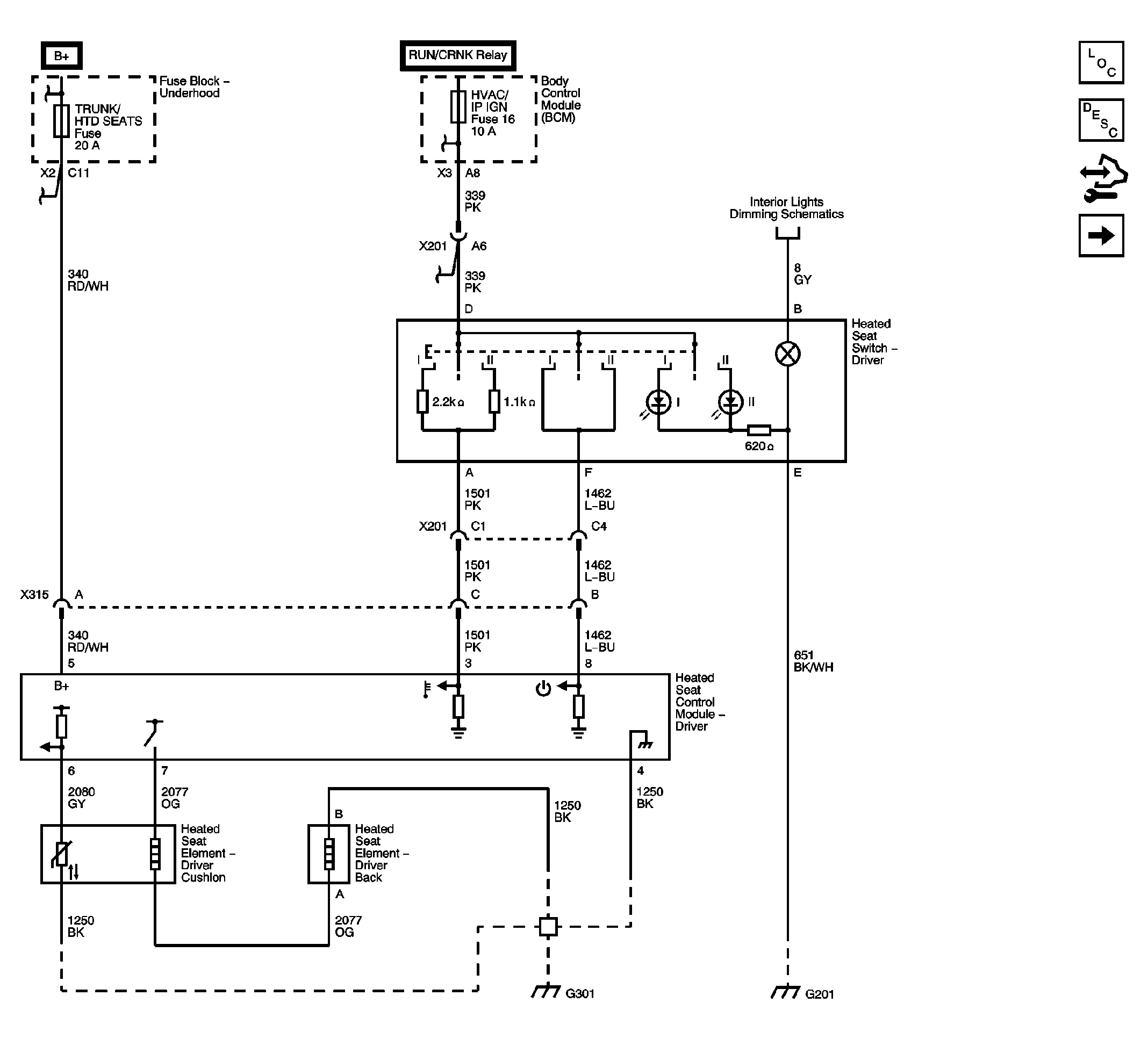

Fig 1: Heated Seat - Driver Schematic

Courtesy of GENERAL MOTORS CORP.

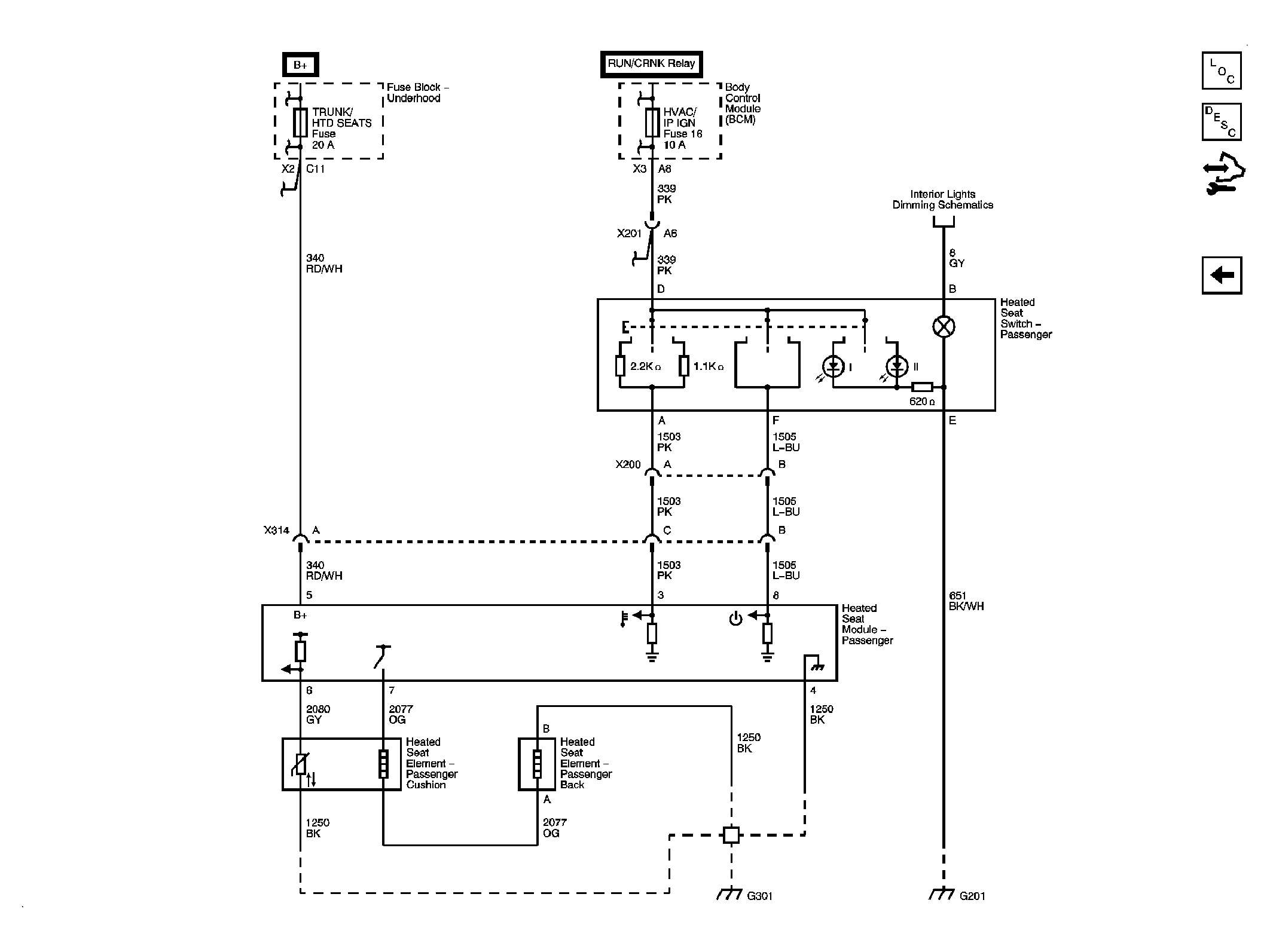

Fig 2: Heated Seat - Passenger Schematic

Courtesy of GENERAL MOTORS CORP.
