Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Rear Transaxle Mount To Frame Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear transaxle mount to frame bolts. Hand tighten the bolts.

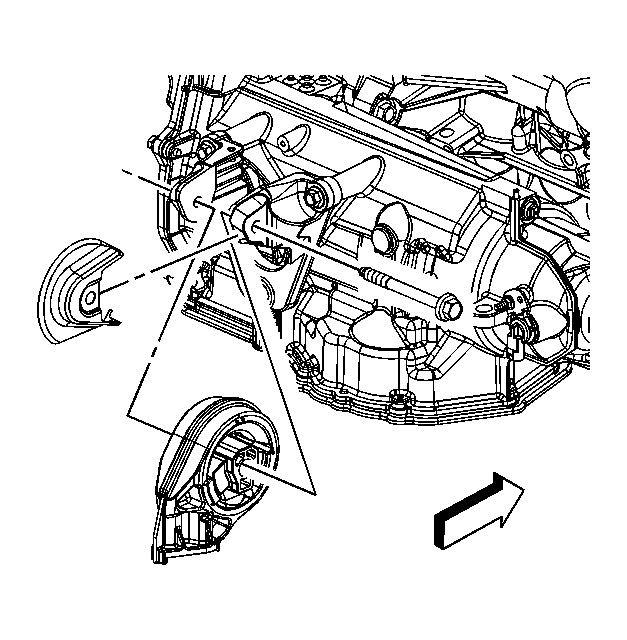

Fig 2: Rear Transaxle Mount

Courtesy of GENERAL MOTORS CORP.

Install the rear transaxle mount, heat shield and the thru bolt to the transmission bracket. Hand tighten the bolt.

Fig 3: View Of Rear Transaxle Mount To Frame Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Tighten the rear transaxle mount to frame bolts.
Tighten: Tighten the bolts to 60 N.m (44 lb ft).

NOTE:

Rotate the rear transaxle mount heat shield clockwise until the tab is seated on the mount bracket.
The front and rear transmission mounts must be allowed to settle with the thru bolts loosened.

Fig 4: View Of Front Transaxle Mount Through Bolt

Courtesy of GENERAL MOTORS CORP.

Loosen the front transaxle mount thru bolt but do not remove the bolt.

Fig 5: Rear Transaxle Mount

Courtesy of GENERAL MOTORS CORP.

Tighten the rear transmission mount thru bolt.
Tighten: Tighten the thru bolt to 100 N.m (74 lb ft).

Fig 6: View Of Front Transaxle Mount Through Bolt

Courtesy of GENERAL MOTORS CORP.

Tighten the front transmission mount thru bolt.
Tighten: Tighten the thru bolt to 100 N.m (74 lb ft).
Lower the vehicle.
