Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Position a drain pan under the transaxle cooler pipes.
    3. Fig 1: View Of Transaxle Oil Cooler Pipes
    GM1523657Courtesy of GENERAL MOTORS CORP.
  3. Remove the transaxle oil cooler pipes retaining nut from the transaxle.
  4. Remove the transaxle oil cooler pipes from the transaxle.

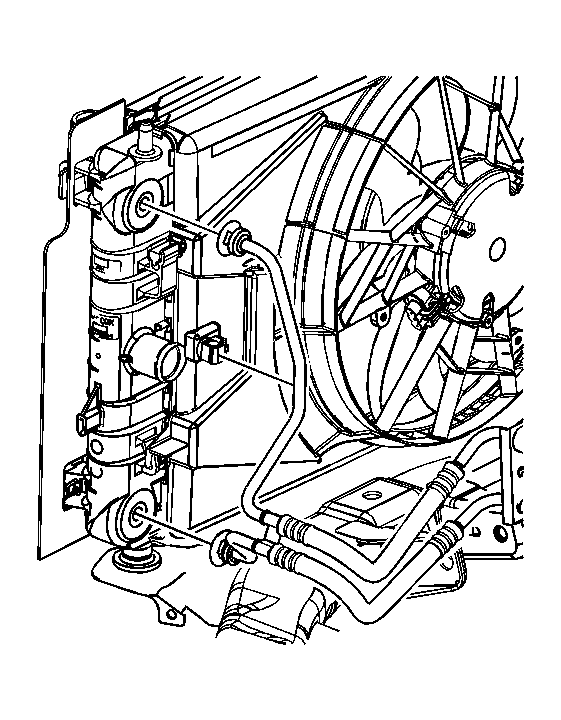

    5. Fig 2: Identifying Transaxle Oil Cooler Pipe
    GM1523656Courtesy of GENERAL MOTORS CORP.
  5. Using J 41623-B  remove the transaxle oil cooler pipes from the fittings at the radiator. See Special Tools .
  6. Remove the transaxle oil cooler pipe from the retaining clip at the radiator.
  7. Remove the transaxle oil cooler pipes from the vehicle.
