Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Rear Transaxle Mount Bracket
    GM851622Courtesy of GENERAL MOTORS CORP.
  1. Install the rear transaxle mount to transaxle.
    2. CAUTION: Refer to Fastener Caution .
  2. Using the following sequence, install the rear transaxle mount bracket bolts:
    1. Tighten the middle bolt to 60 N.m (44 lb ft).
    2. Tighten the lower bolt to 60 N.m (44 lb ft).
    3. Tighten the upper bolt to 60 N.m (44 lb ft).

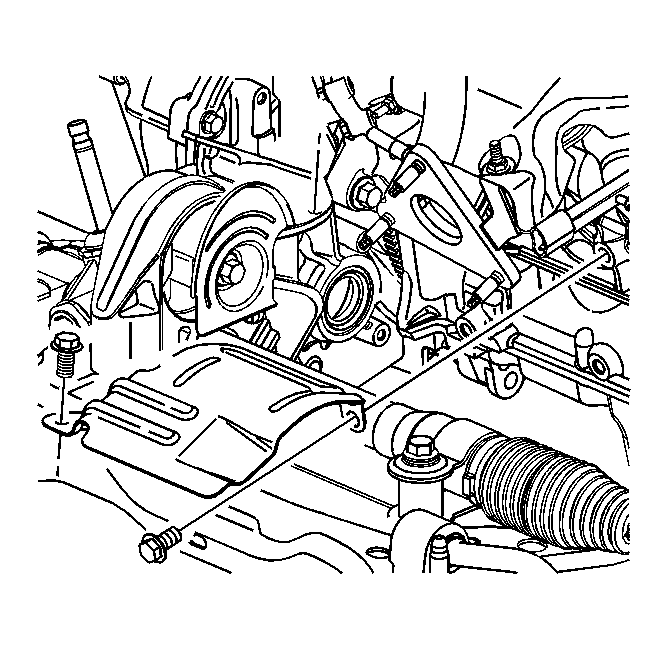

    3. Fig 2: View Of Axle Boot Heat Shield
    GM851621Courtesy of GENERAL MOTORS CORP.
  3. Install the axle boot heat shield.
  4. Install the axle boot heat shield bolts.
    • Tighten the heat shield to transmission mount bracket bolt to 10 N.m (89 lb in).
    • Tighten the heat shield to engine bolt to 30 N.m (22 lb ft).
  5. Install the rear transaxle mount. Refer to Transmission Rear Mount Replacement .
