Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

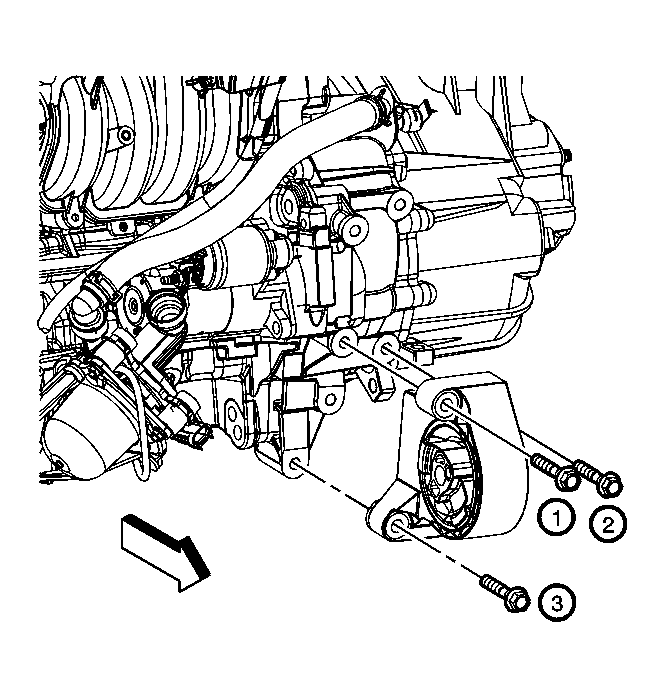

Fig 1: View Of Front Transaxle Mount

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

NOTE: The transaxle bolts must be torqued in a mandatory sequence as shown.

Install the front transaxle mount and transaxle bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).

Fig 2: View Of Front Transaxle Mount Through Bolt

Courtesy of GENERAL MOTORS CORP.

Hand start the front transaxle mount through bolt.

NOTE: The front and rear transaxle mounts must be allowed to settle with the through bolts loosened.

Loosen the rear transaxle mount through bolt.
Tighten the transaxle mount through bolts in the following order:
Tighten:
1. Tighten the rear bolt to 100 N.m (74 lb ft).
2. Tighten the front bolt to 100 N.m (74 lb ft).
Lower the vehicle.
