Steering Wheel Horn Contact Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

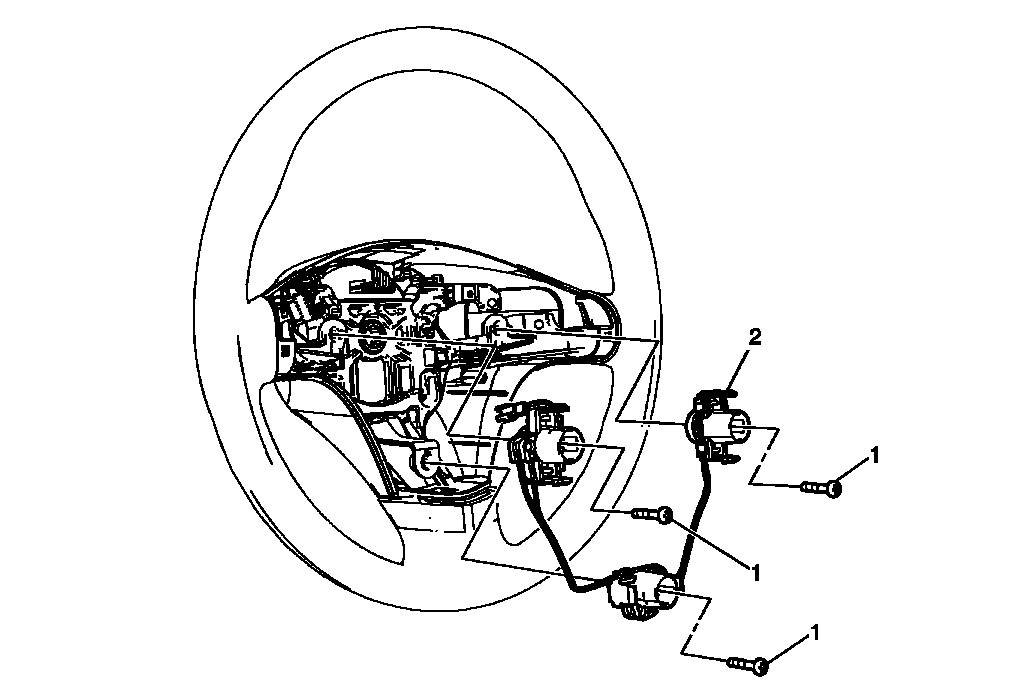

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement . |
|
| 1 | Steering Wheel Horn Contact Bolt/Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Steering Wheel Horn Contact Procedure: Disconnect electrical connectors. |
