Outside Rearview Mirror Motor Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

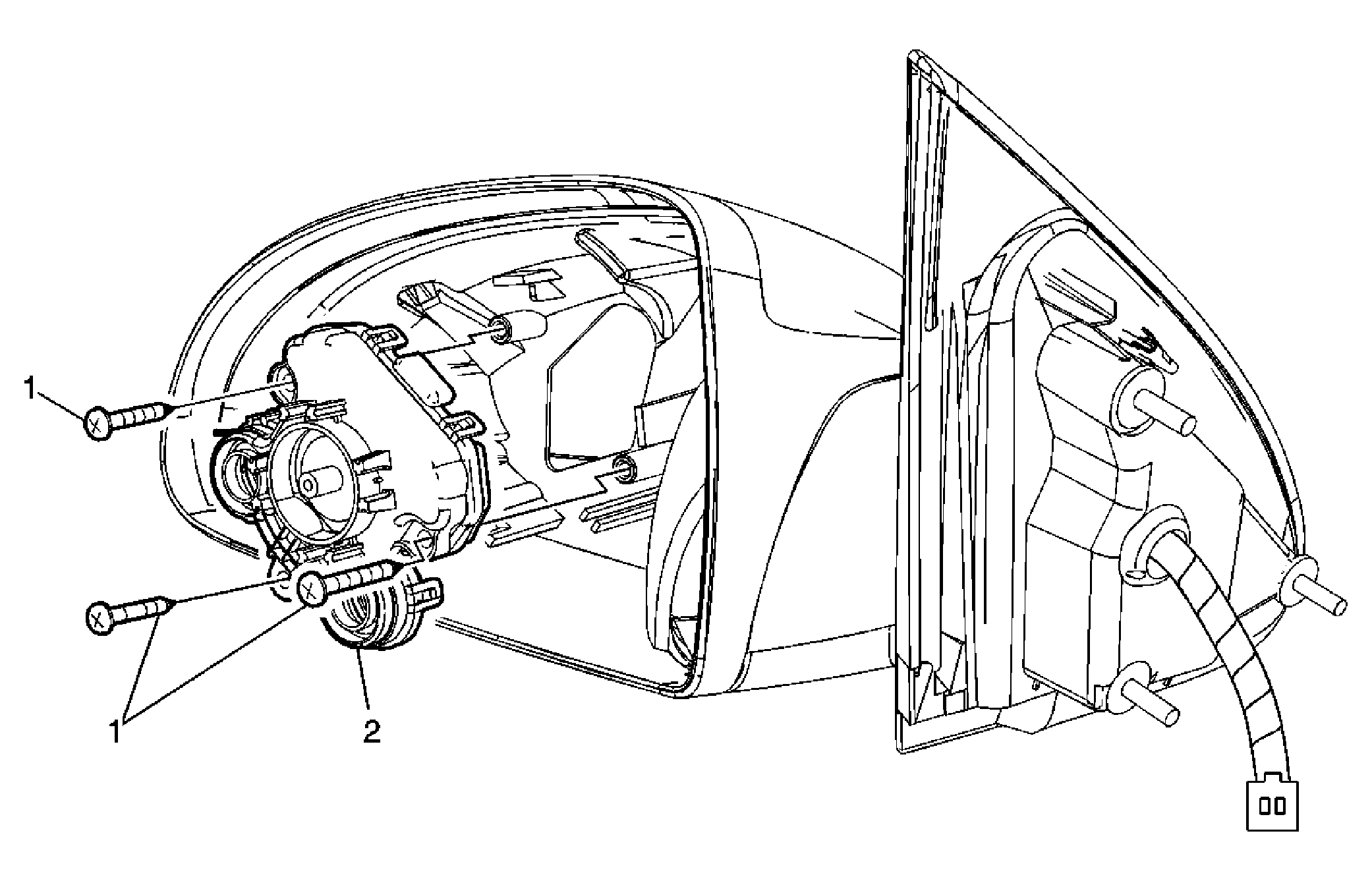

Fig 1: View Of Outside Rearview Mirror Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the outside rearview mirror lens. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Motor (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Outside Rearview Mirror Motor Tip: Disconnect the electrical connector.
