Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to Glass and Sheet Metal Handling Warning .

Insert the J 38778 (or equivalent) between the mirror backing plate and the housing.

Fig 1: Identifying Door Trim Pad Remover

Courtesy of GENERAL MOTORS CORP.

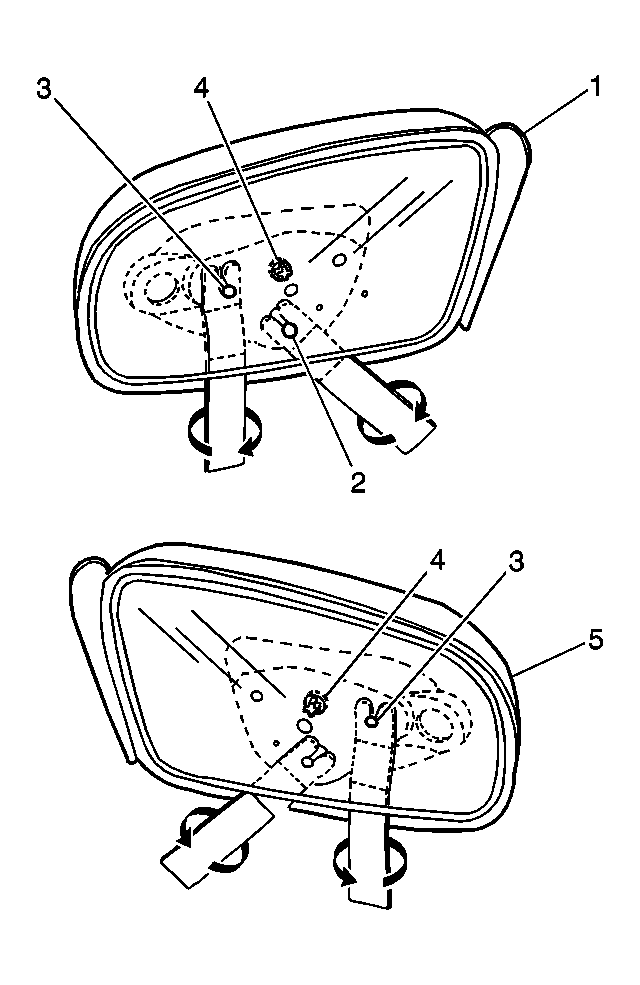

Remove the mirror from the backing plate.
- For the left mirror (1), twist the J 38778 counterclockwise.
- For the right mirror (5), twist the J 38778 clockwise.

Fig 2: Aligning Mirror Backing Plate Jackscrews

Courtesy of GENERAL MOTORS CORP.

If the jackscrews (2) came off in the mirror backing plate, press them to the side opposite the key (on the ball end) in order to remove them.
