Air Temperature and Driver Information Center

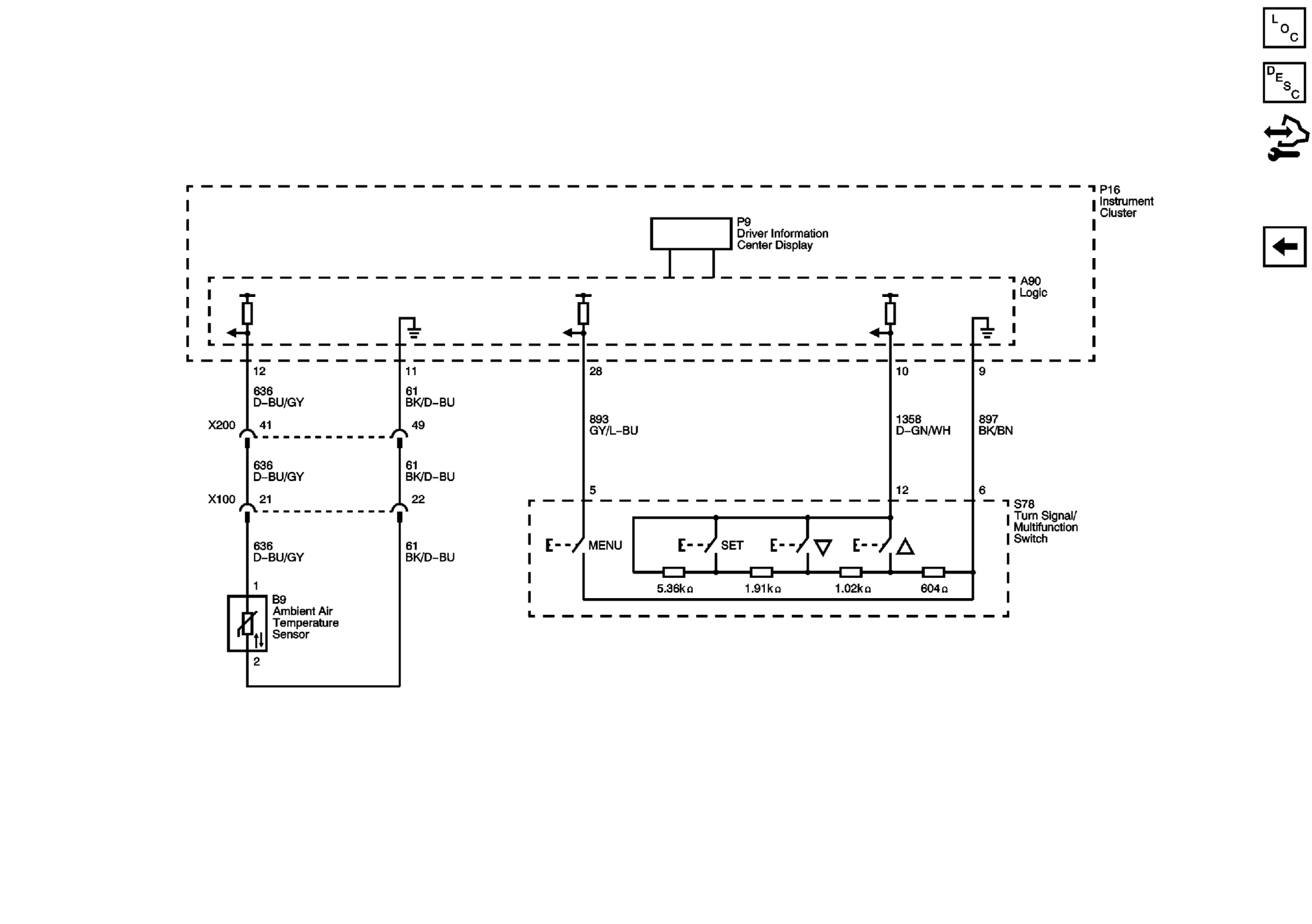

Fig 1: Air Temperature and Driver Information Center Wiring Schematic

GM2587572

Courtesy of GENERAL MOTORS COMPANY
