Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Lower and support the rear of the exhaust.
- Install a drain pan under the vehicle.

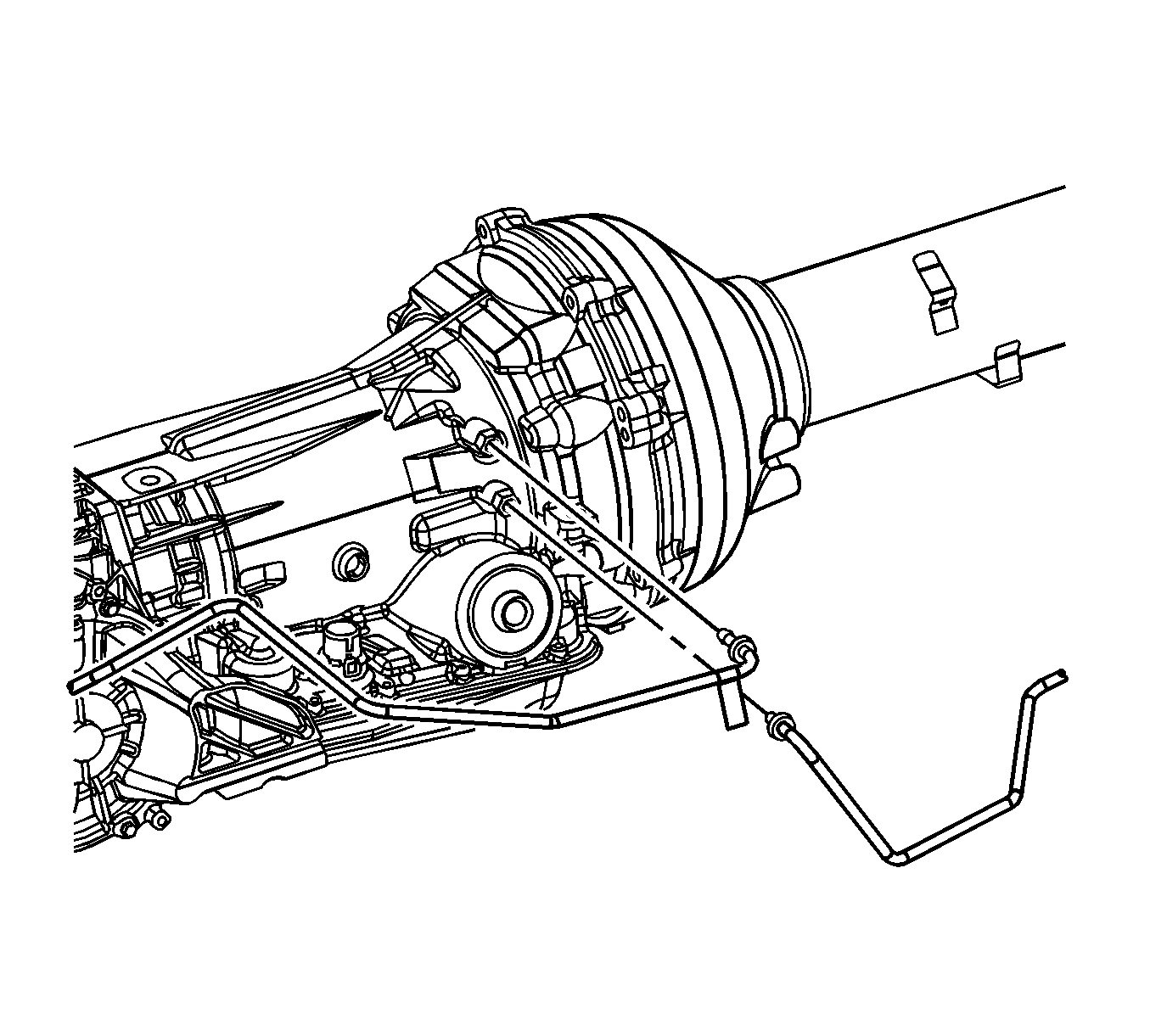

- Disconnect the rear transmission fluid cooler upper pipe from the transmission. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Remove the transmission fluid cooler pipes clip.
- Disconnect the rear transmission fluid cooler upper pipe from the differential oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Remove the rear to differential cooler transmission fluid cooler upper pipe from the vehicle.
IMPORTANT:
Cap or plug the open transmission fluid cooler pipes immediately to prevent system contamination.
