Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission fluid pan. Refer to Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement .
  2. Remove the transmission assembly from the vehicle. Refer to Transmission Replacement .

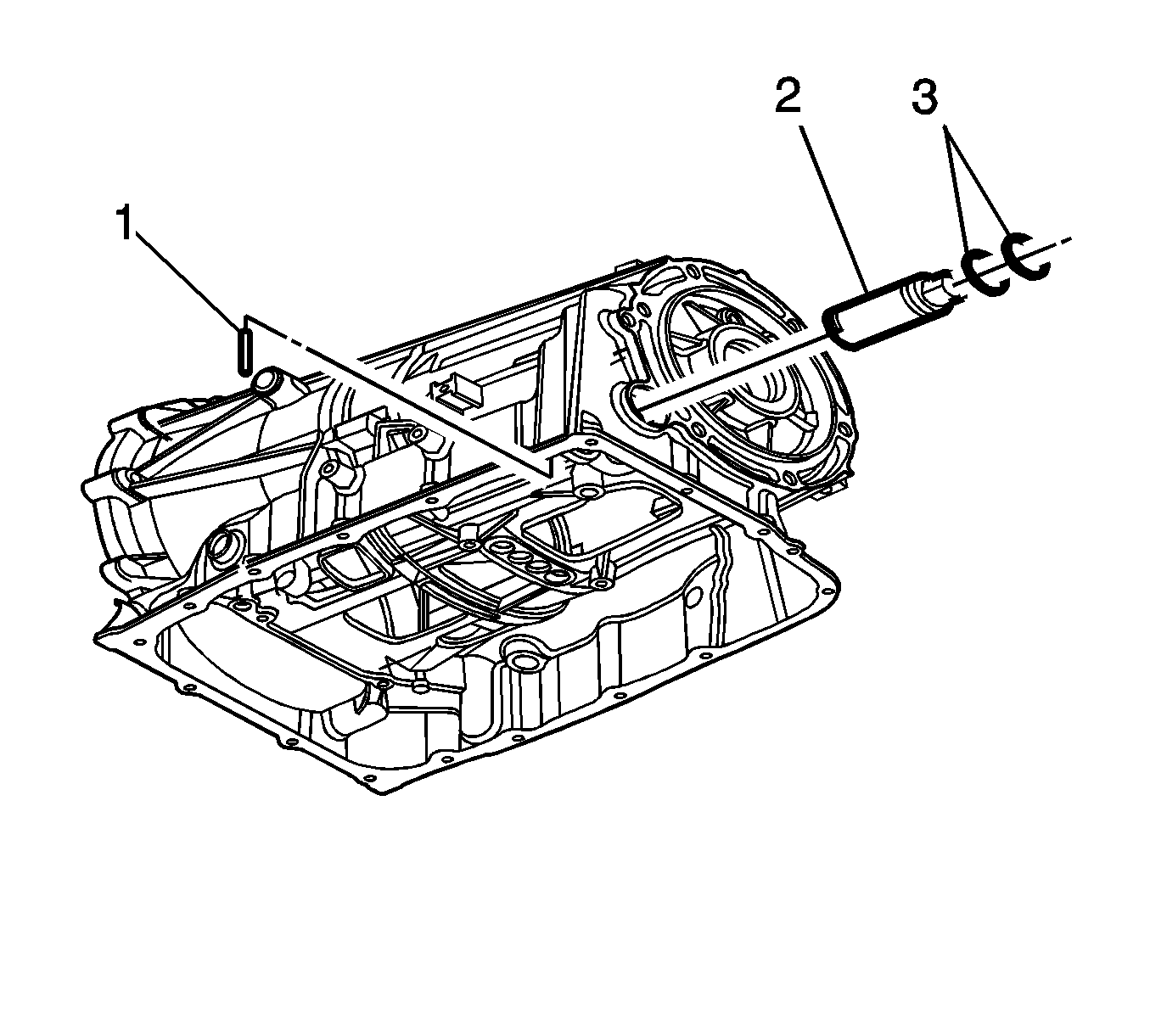

    3. Fig 1: Park Pawl Actuator Guide And Guide Pin
    GM2699067Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Walk the pin out using side cutters or equivalent, then discard the pin.

  3. Remove the park pawl actuator guide pin (1).
  4. Remove the park pawl actuator guide (2).
  5. Remove and Discard the park pawl actuator guide seals (3).
