Manual Shift Detent Lever and Park Pawl Actuator Replacement

WARNING: This page is about a different variant/trim than selected.

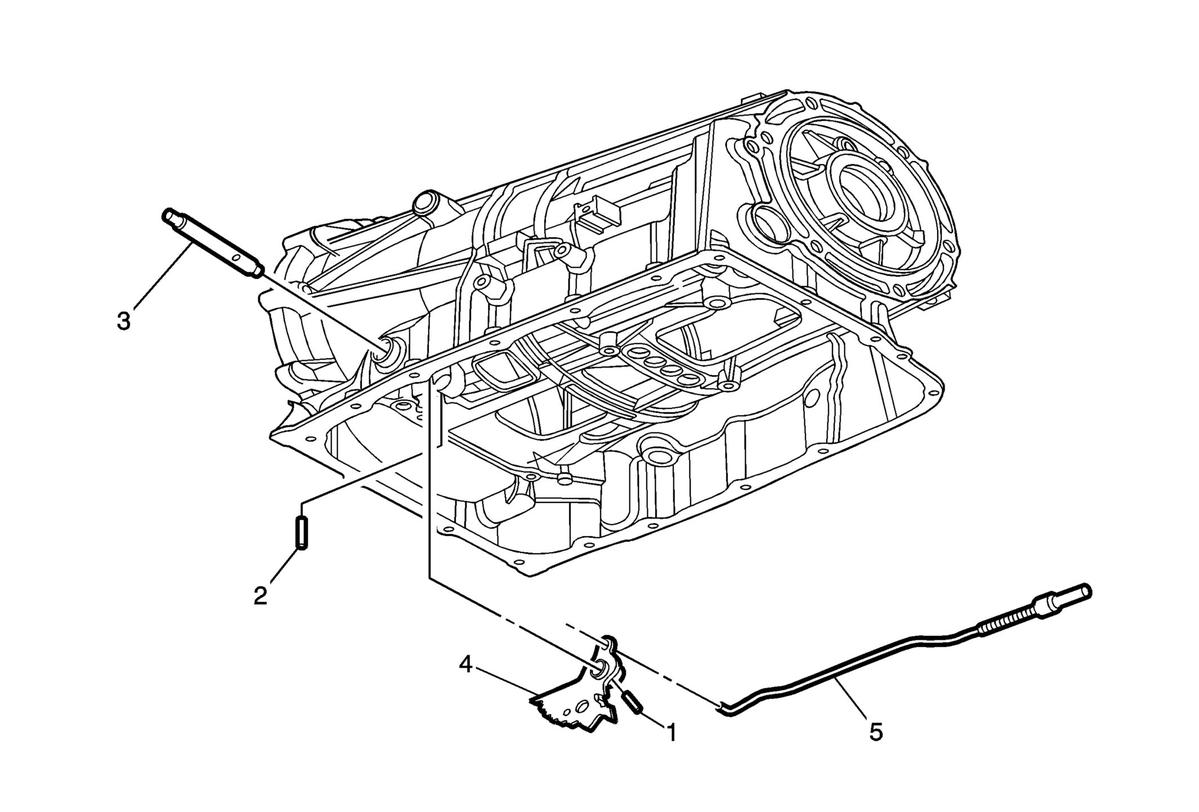

Fig 1: Manual Shift Detent Lever and Park Pawl Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the valve body. Refer to Control Valve Lower Body and Upper Body Replacement .
1	Manual Shaft Detent Lever Hub Pin NOTE: Discard the pin. Replace with NEW pin. "Walk" the pin out using side cutters.
2	Manual Shift Shaft Pin NOTE: Discard the pin. Replace with NEW pin. "Walk" the pin out using side cutters.
3	Manual Shift Shaft
4	Manual Shaft Detent Lever Assembly
5	Park Pawl Actuator Assembly
