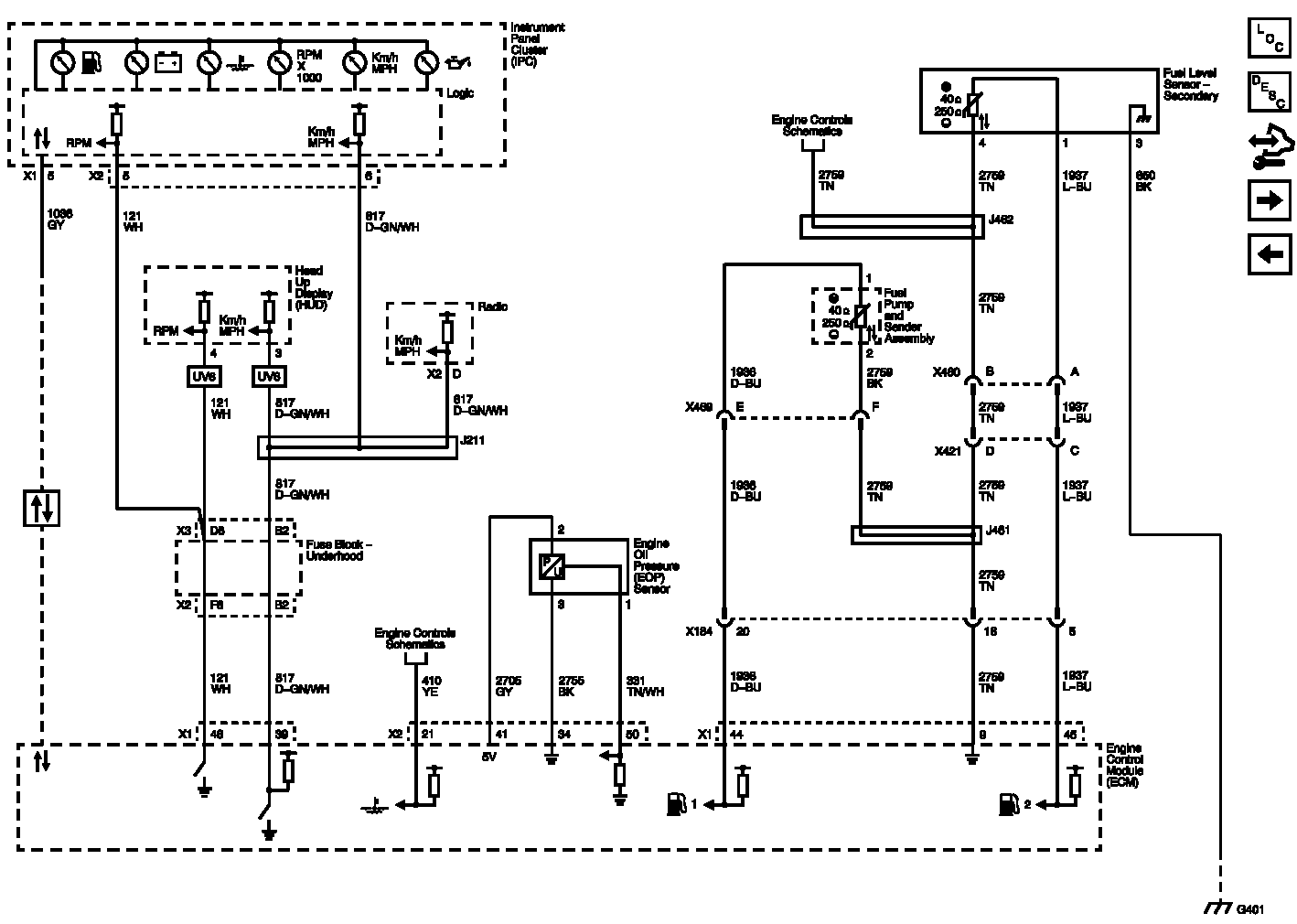

Home >> Chevrolet >> 2012 >> Corvette ZR-1, Trans Mfr CD 6L95M/MH3 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Gauges (LS9) Wiring Schematics
