Evaporative Emission Canister Purge Solenoid Valve Replacement (6.2L LS9 - With Supercharger)

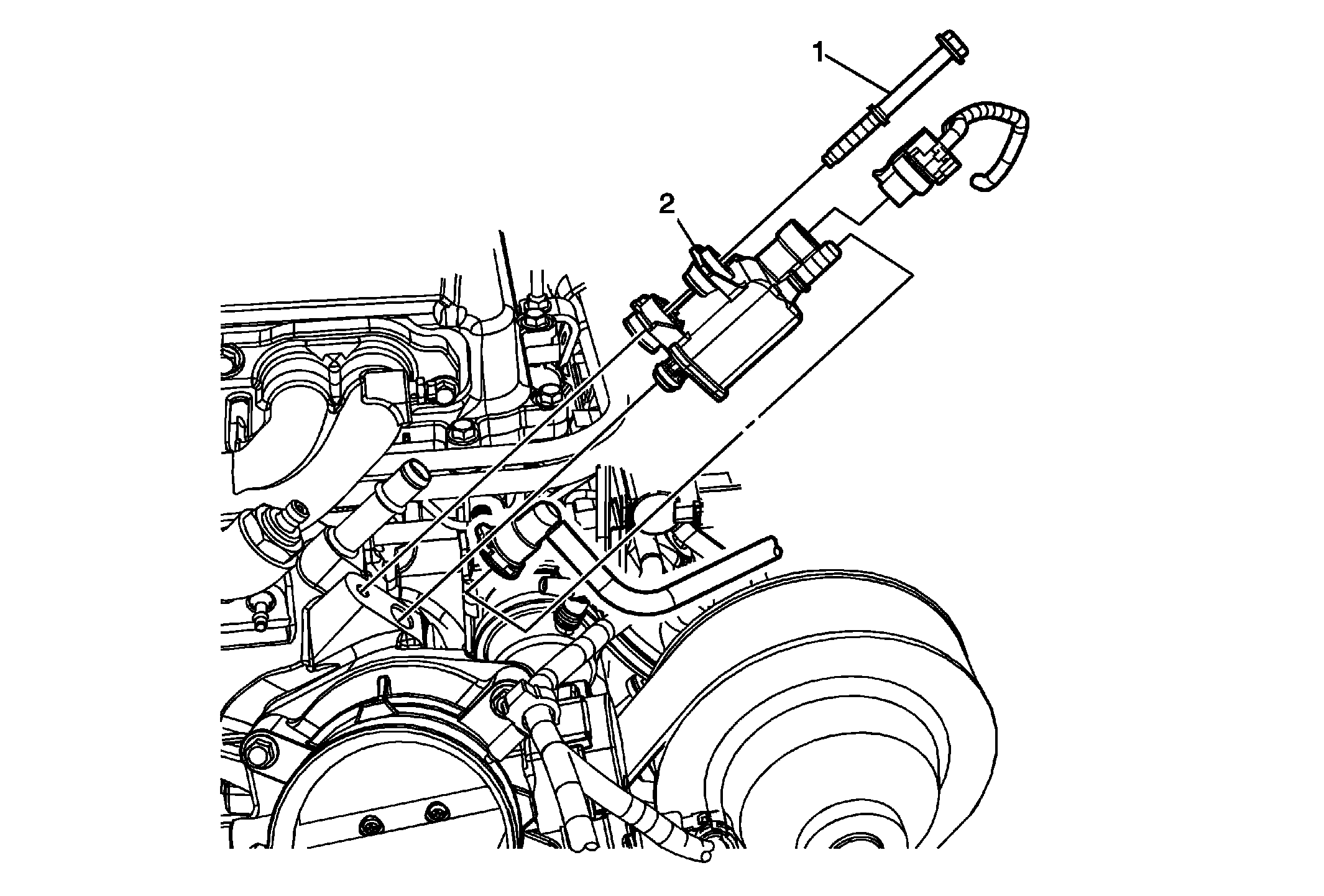

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (6.2L LS9 - With Supercharger)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the upper intake cover. Refer to Upper Intake Manifold Sight Shield Replacement (6.2L LS9 - With Supercharger)
1	Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Valve Procedure Disconnect the EVAP canister purge valve harness connector. Disconnect the EVAP canister purge tube from the purge valve.

Callout

Component Name

Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Valve

Procedure
