Fuse Block - Instrument Panel




Harness Routing Views

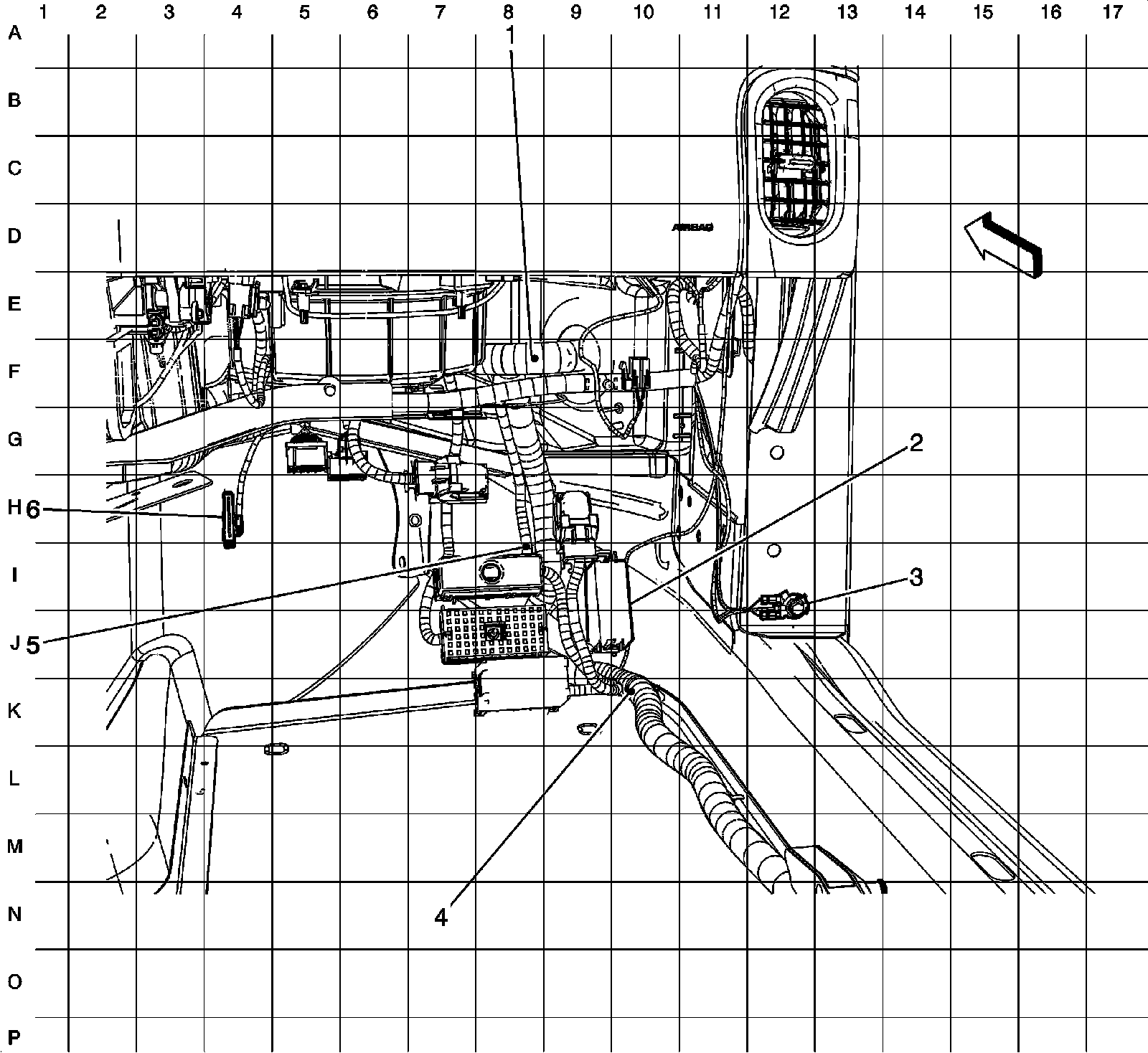

Instrument Panel Harness Routing Splices- Near the Passenger Floor





1 - J217 (LS3)

2 - Fuse Block- Instrument Panel

3 - G202

4 - J234

5 - J202

6 - JX208
