Harness Locations

Harness Routing Views

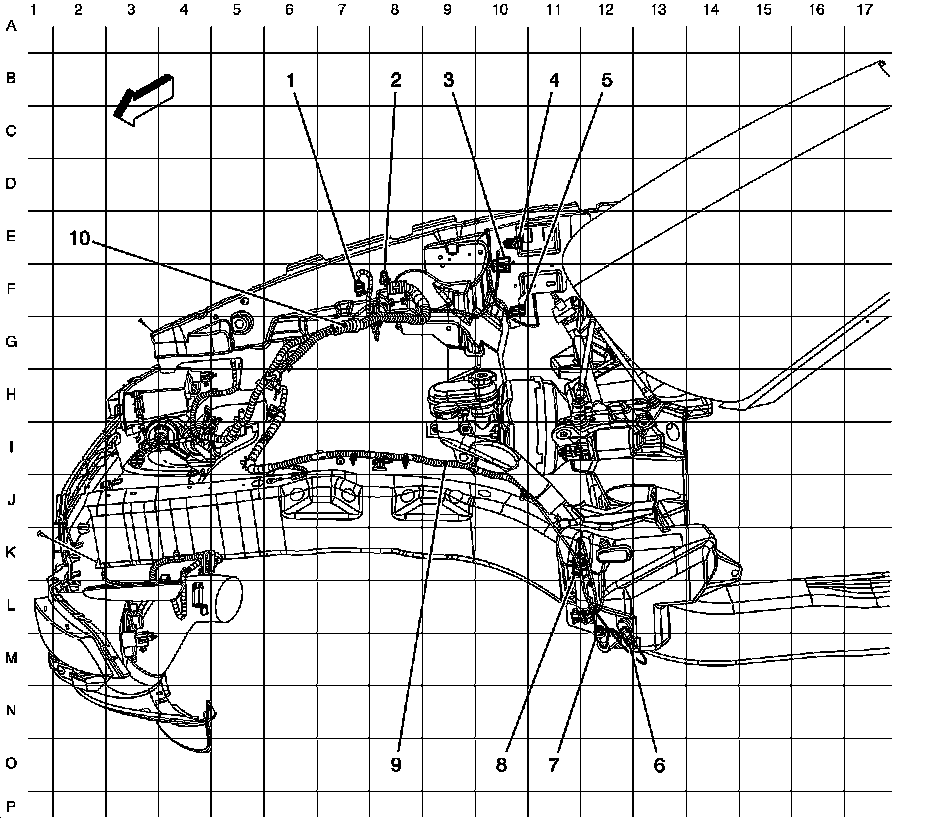

Forward Lamp Harness Routing (2 of 2)





1 - A/C Refrigerant Pressure Sensor

2 - Hood Ajar Switch (UA2)

3 - X166

4 - X186

5 - X168 (LS3/LS7 with F55)

6 - Windshield Washer Fluid Level Switch

7 - Windshield Washer Fluid Pump

8 - Headlamp Washer Fluid Pump (CE4)

9 - J101

10 - J103
