Fuel Pump Relay: Locations

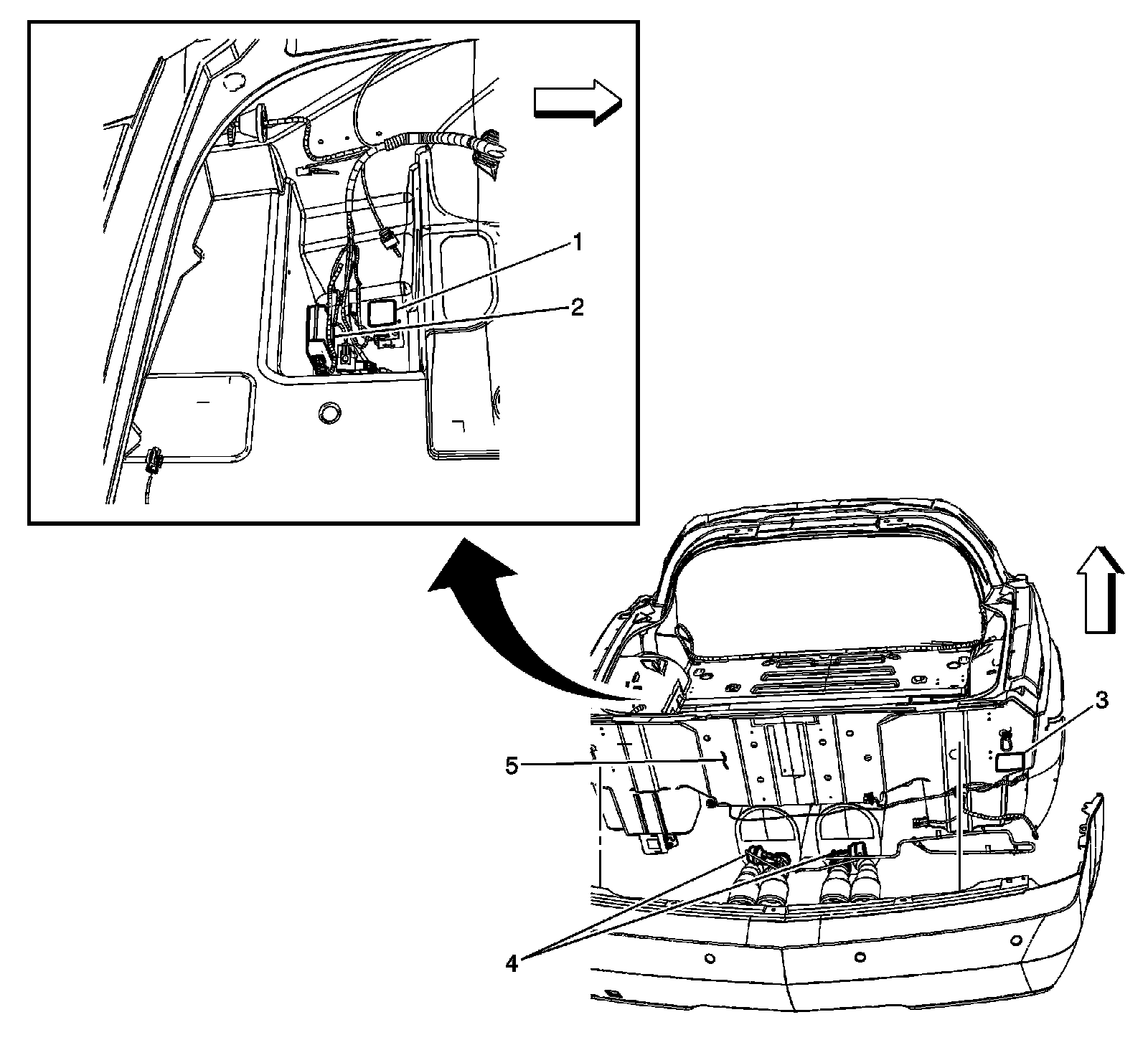

Luggage Compartment/Rear of Vehicle Component Views

Rear of Vehicle Exhaust Components (LS3 with NPP, LS7 or LS9)





1 - Fuel Pump Flow Control Module Relay

2 - Exhaust Tail Pipe Flow Valve Control Module

3 - Exhaust Tail Pipe Flow Control Valve Solenoid

4 - Exhaust Control Valves

5 - Rear Compartment Panel
