Instrument Panel Harness Routing- Inside Left I/P

Harness Routing Views

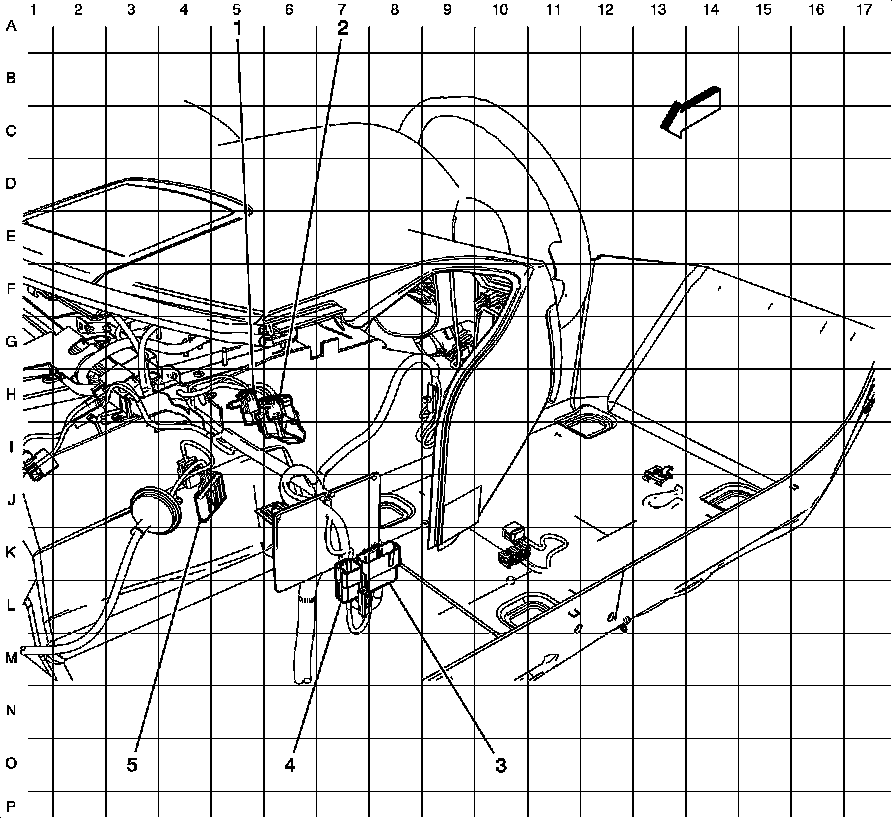

Instrument Panel Harness Routing- Inside Left I/P

1 - X275

2 - X231

3 - X501

4 - X503 (U65)

5 - JX205
