6. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal (6L50/80/90)

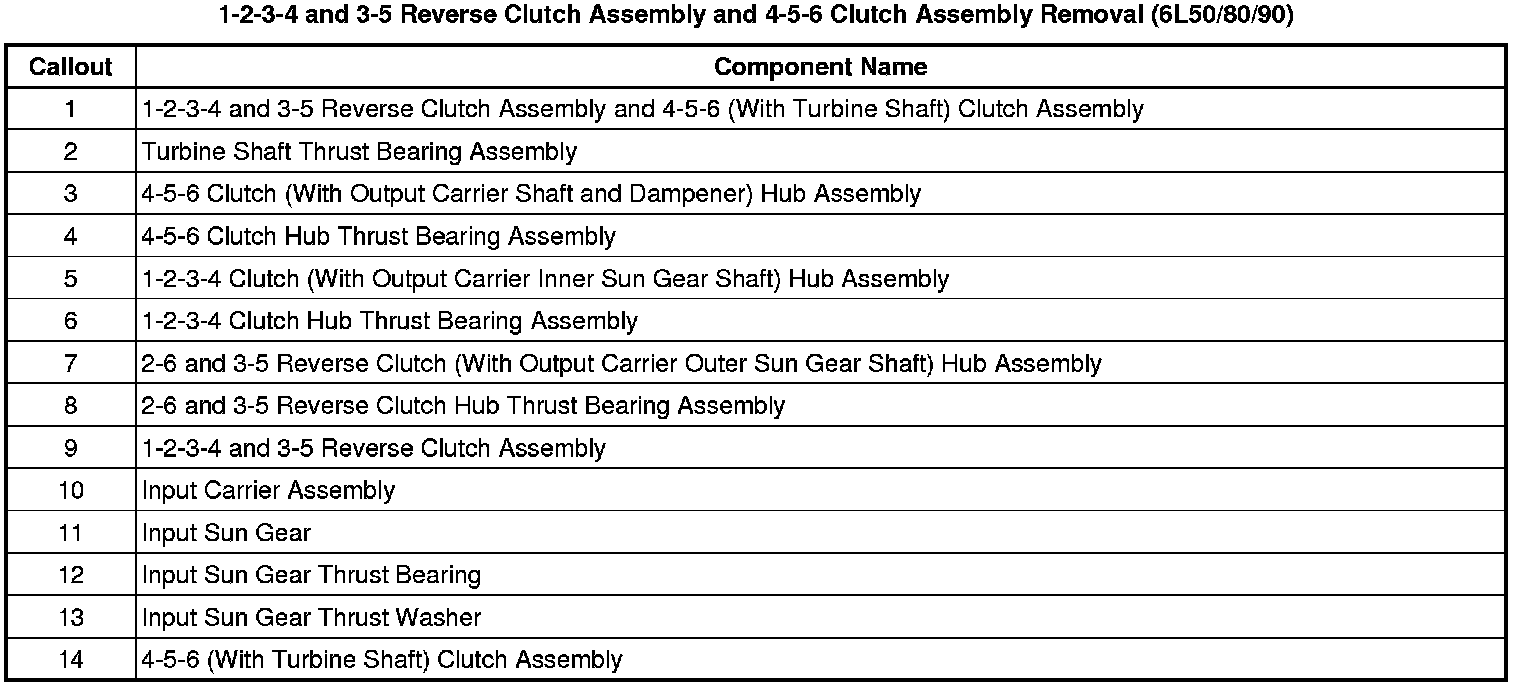

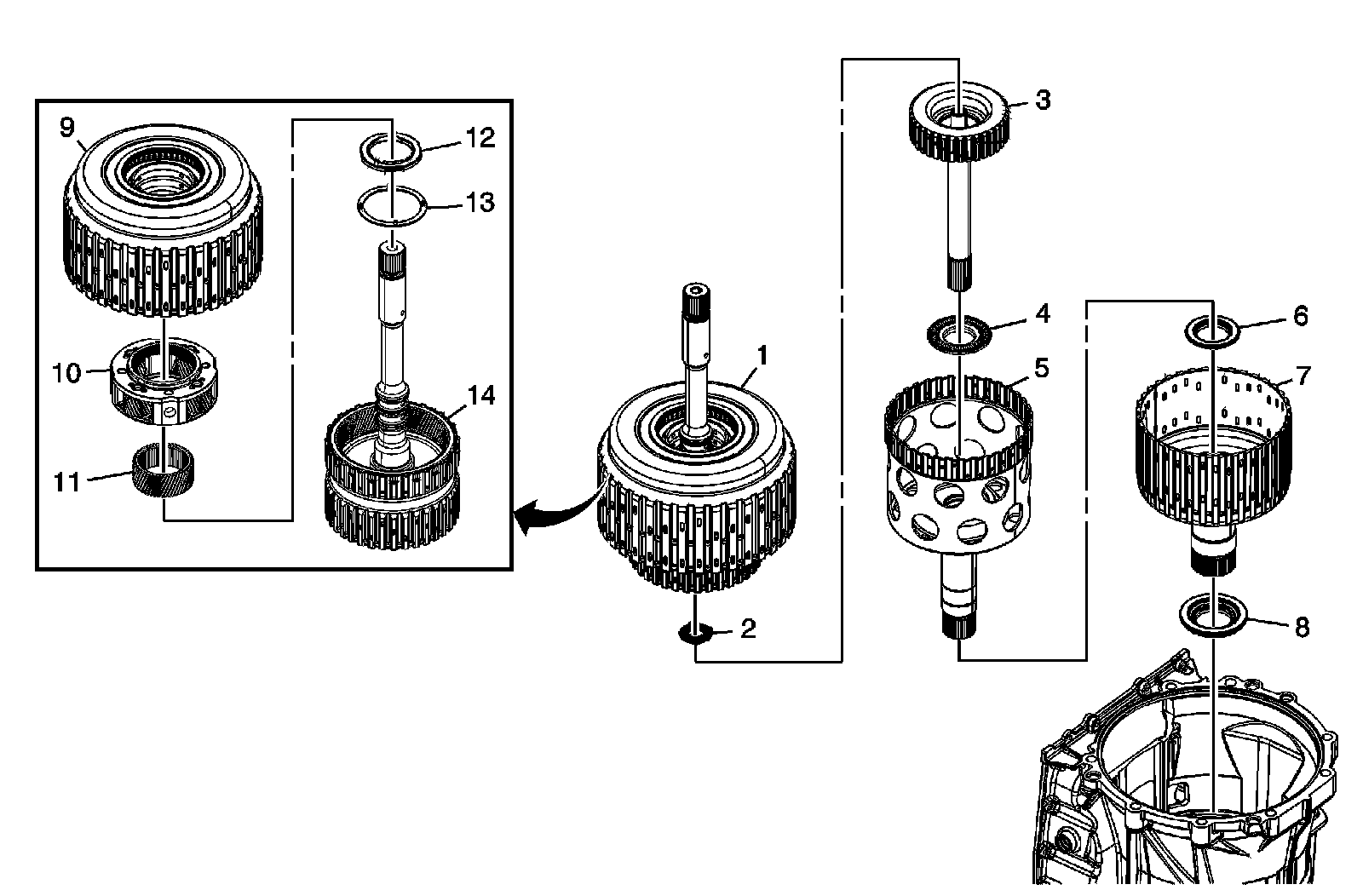

1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal (6L50/80/90)
