24. 1-2-3-4 and 3-5 Reverse Clutch Overhaul (6L50/6L80/6L90)




1-2-3-4 and 3-5 Reverse Clutch Overhaul (6L50/6L80/6L90)

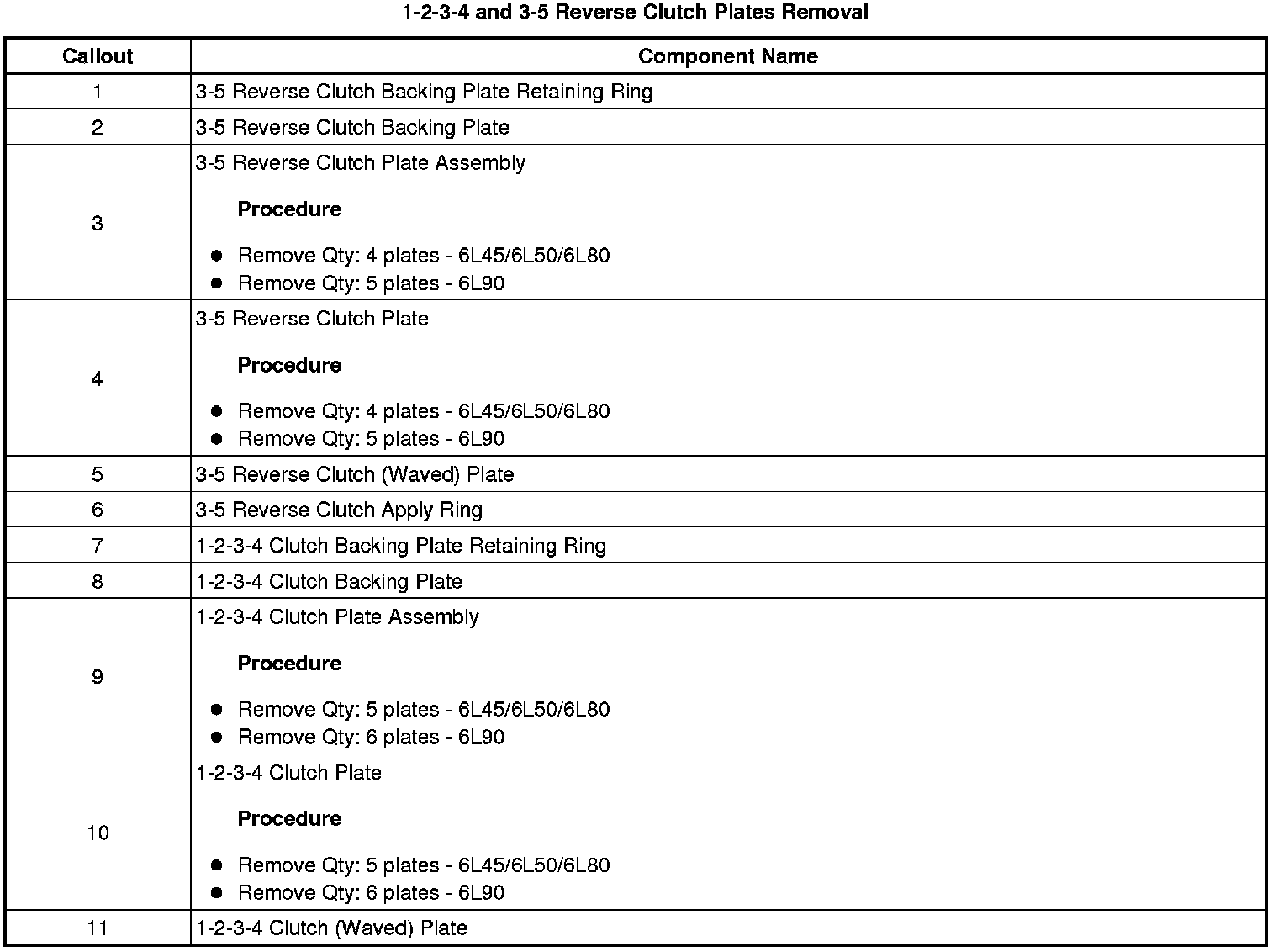

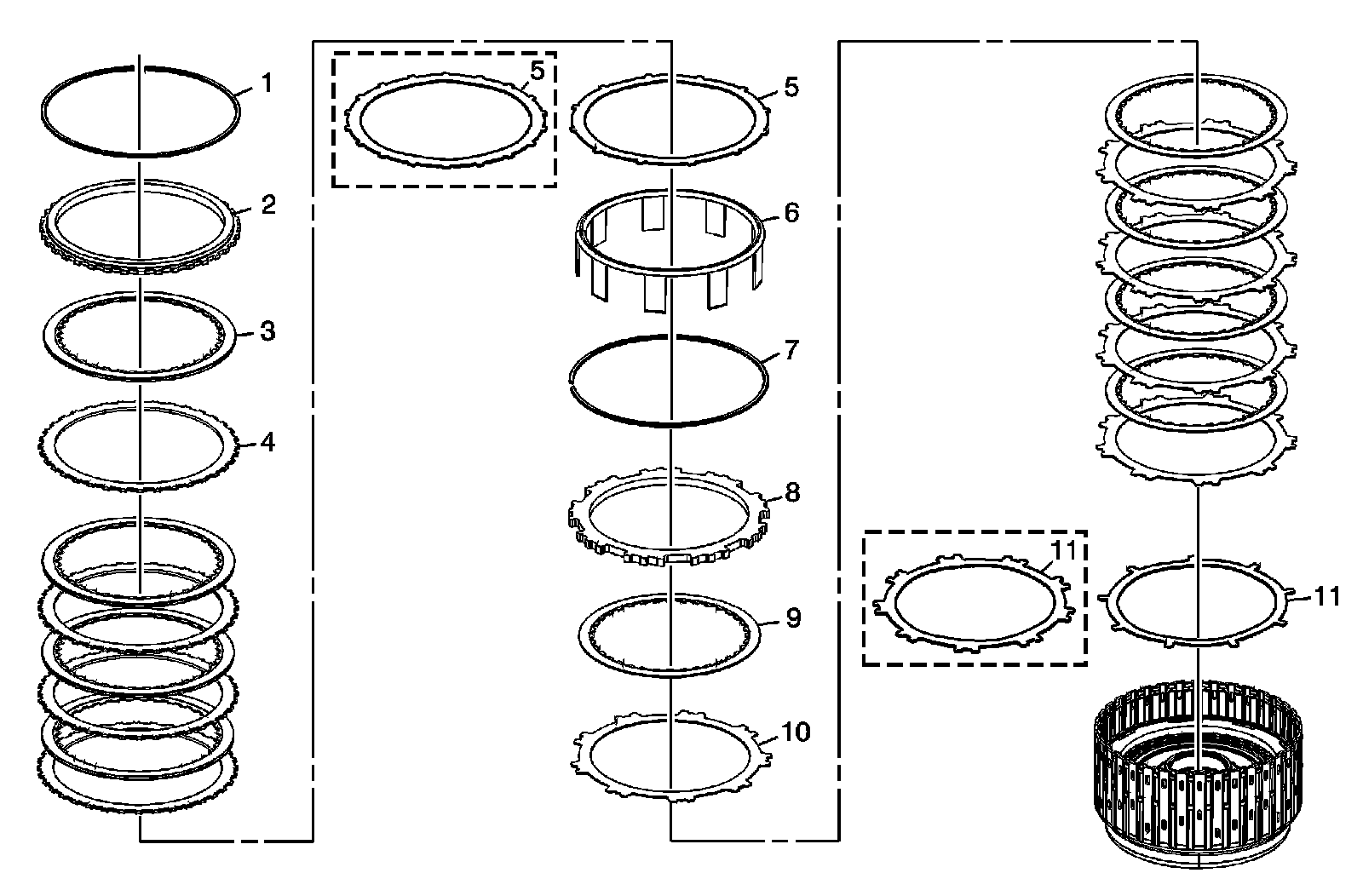

1-2-3-4 and 3-5 Reverse Clutch Plates Removal

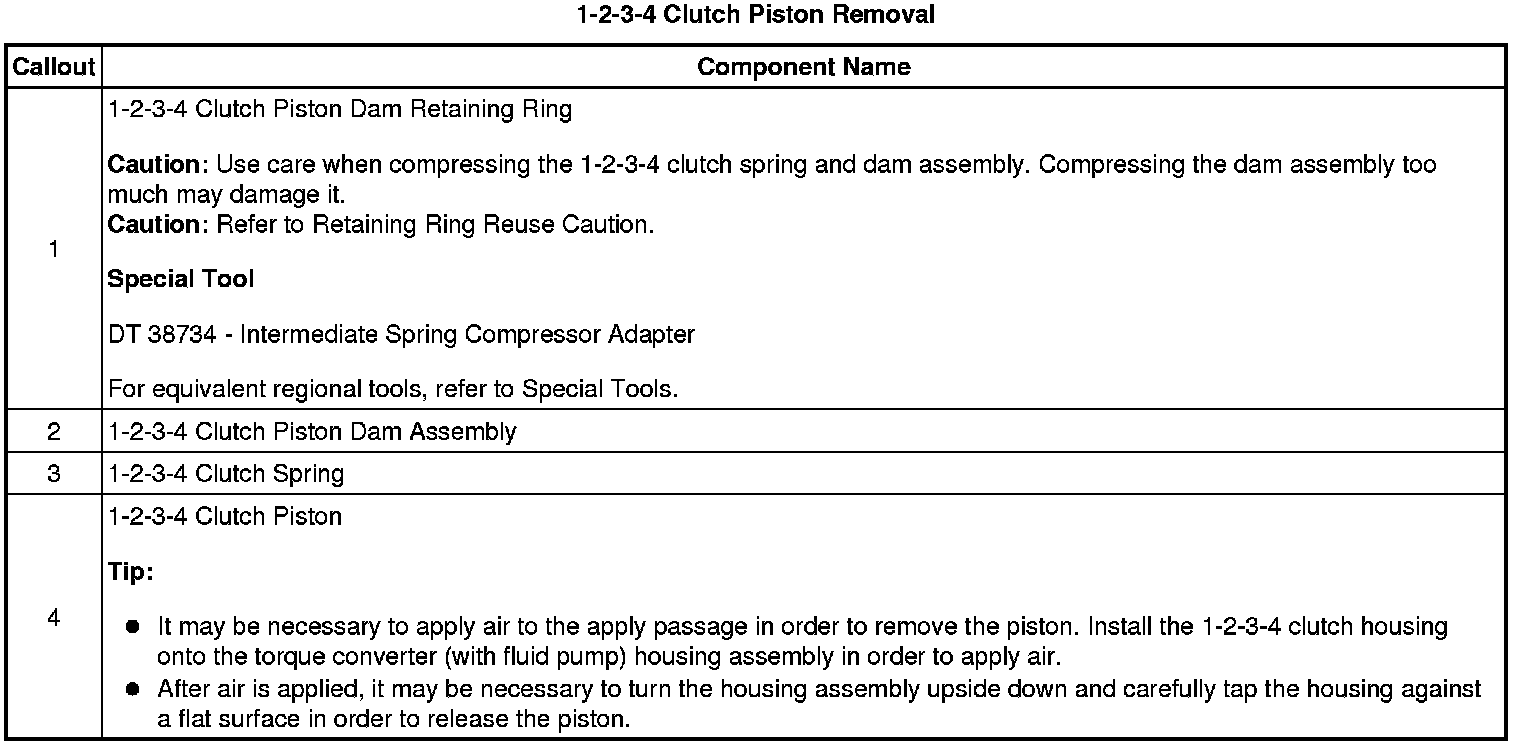

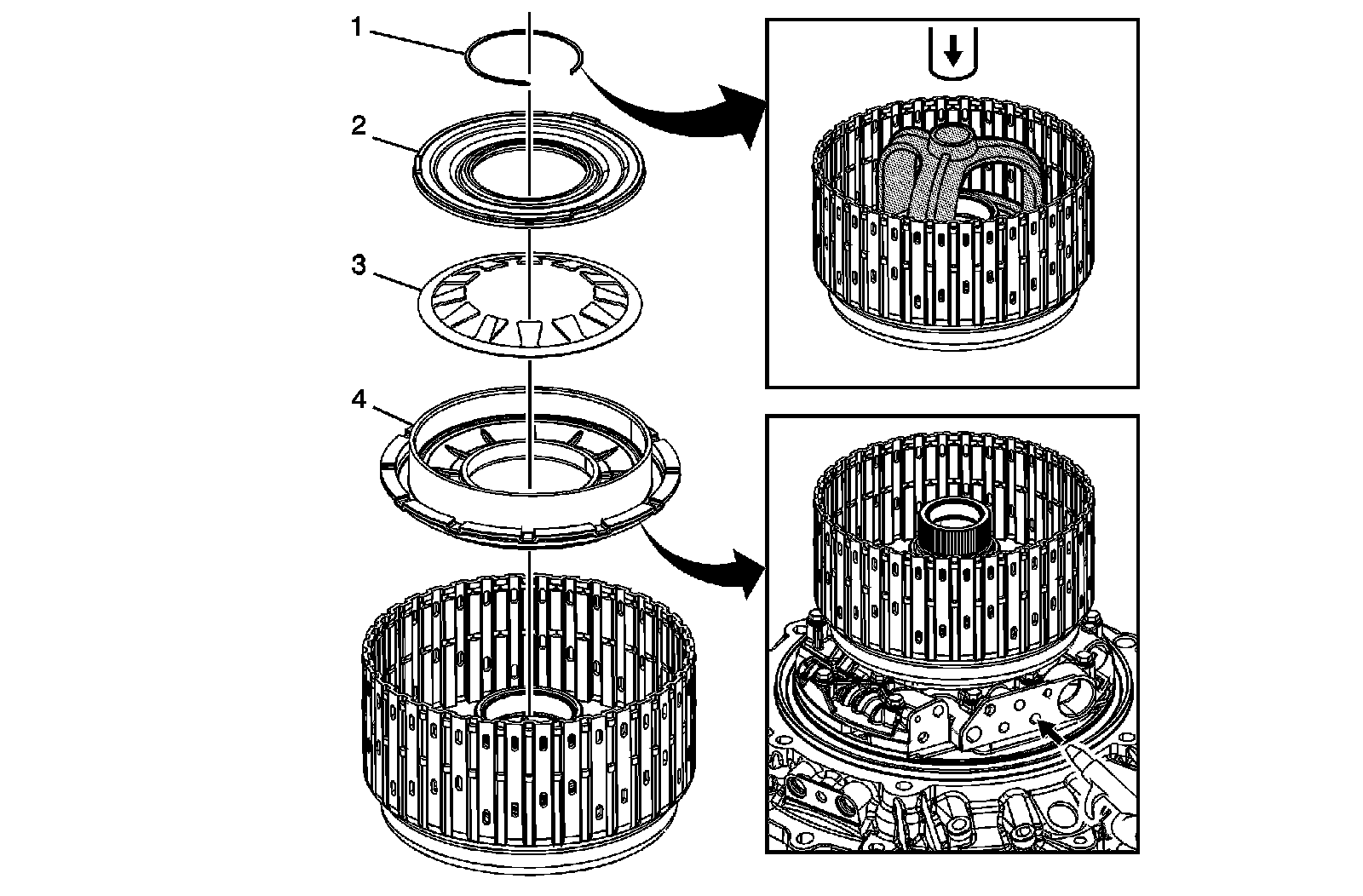

1-2-3-4 Clutch Piston Removal

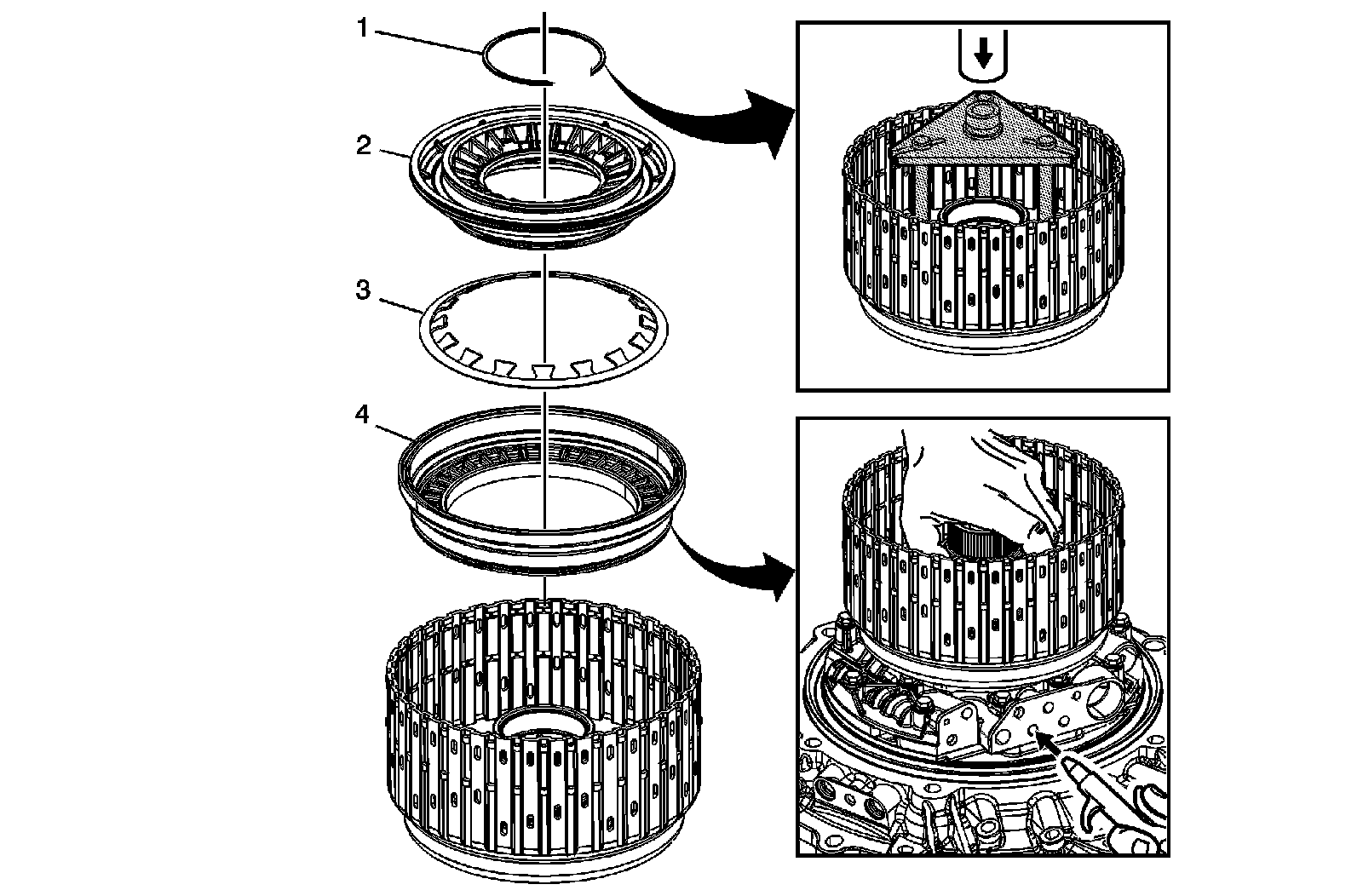

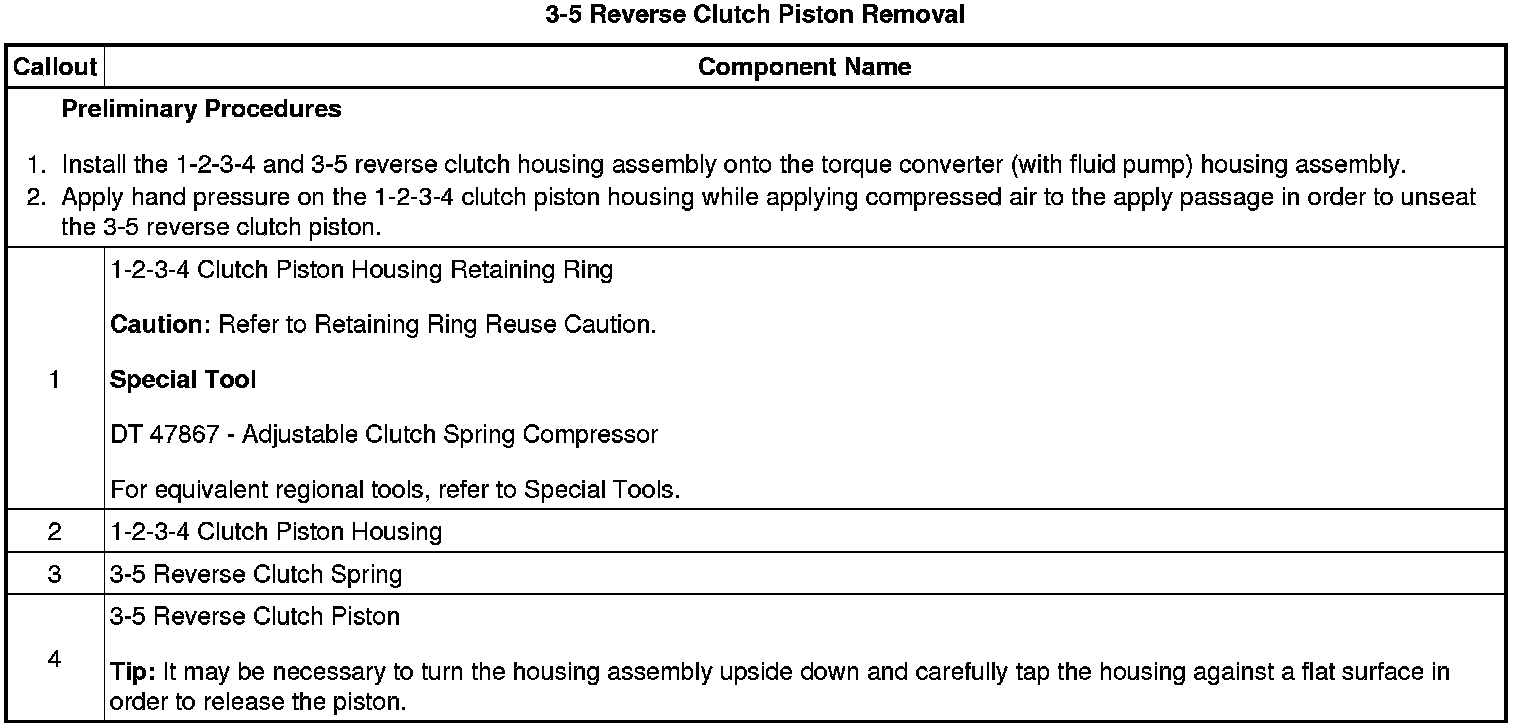

3-5 Reverse Clutch Piston Removal

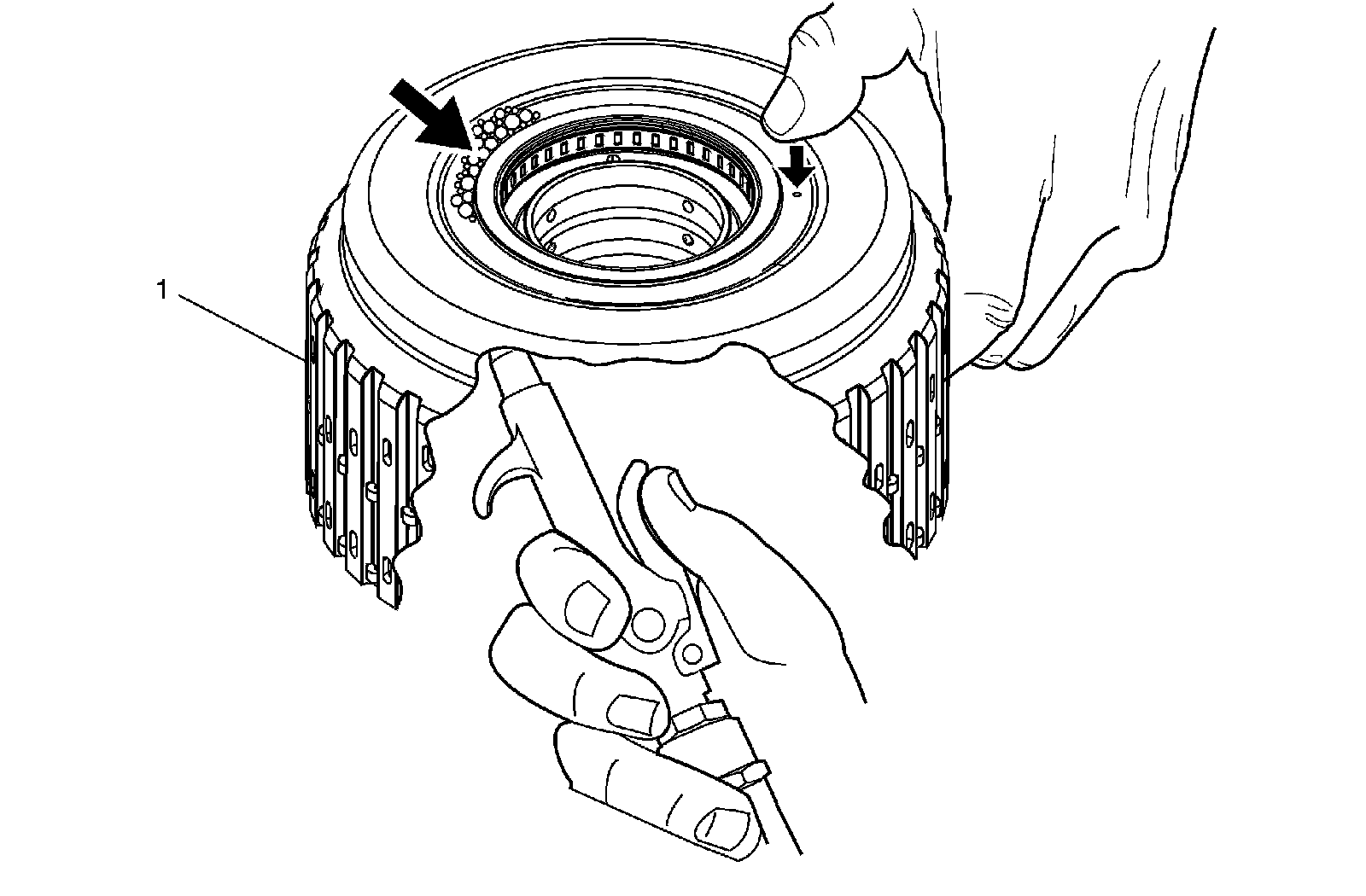

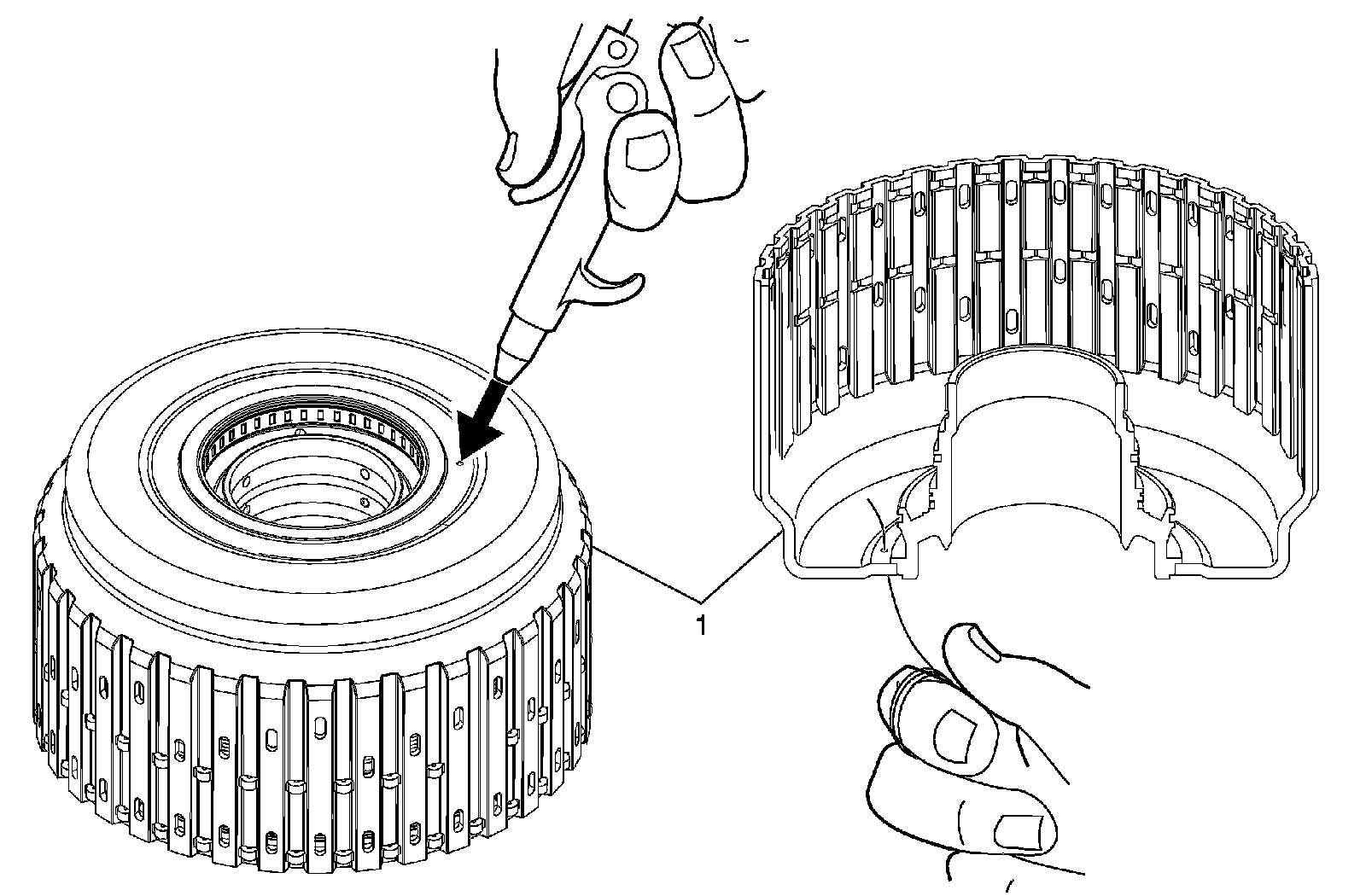

3-5 Reverse Clutch Air Bleed Inspection (6L80/6L90)










3-5 Reverse Clutch Housing Inspection Disassembled

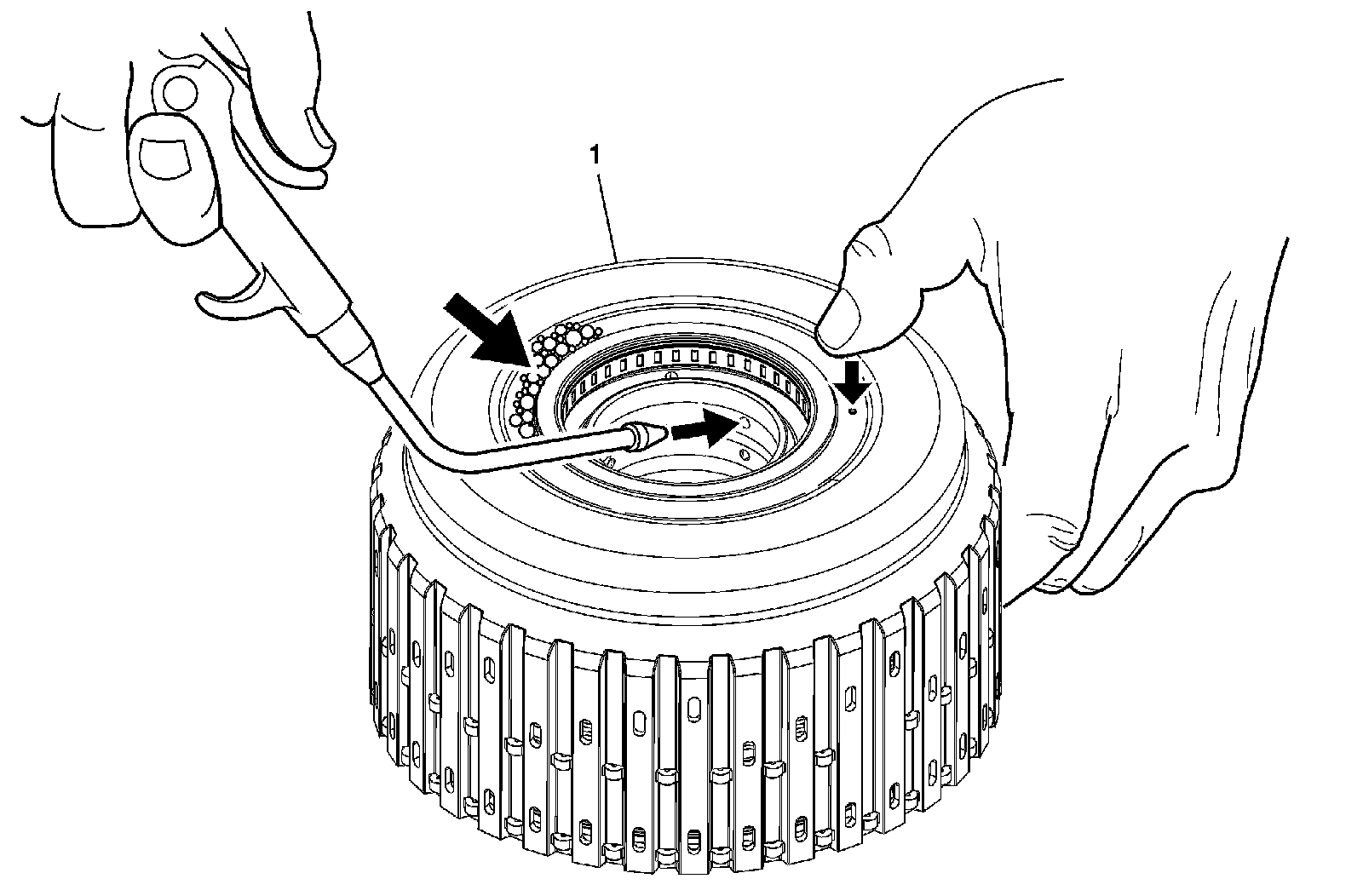

3-5 Reverse Clutch Housing Inspection Assembled

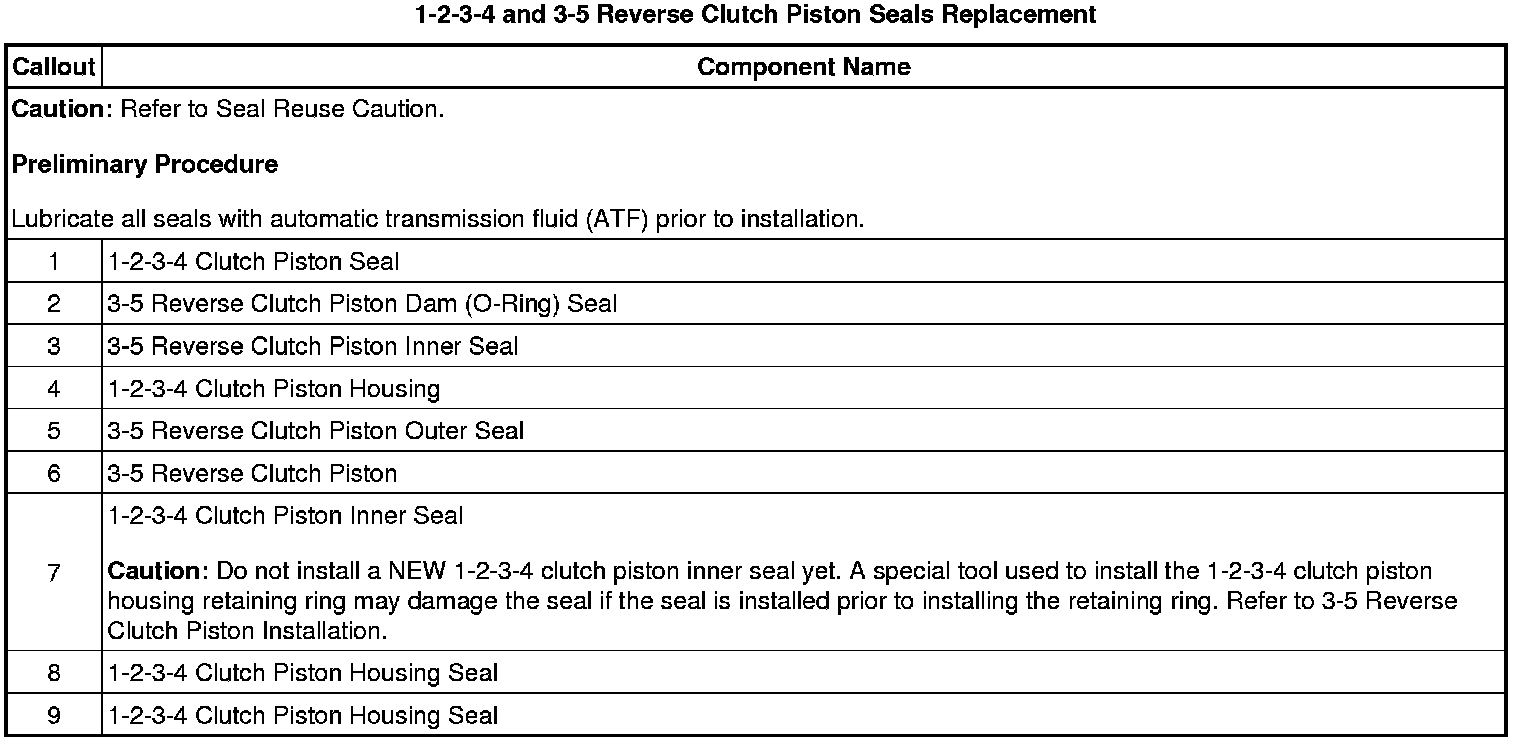

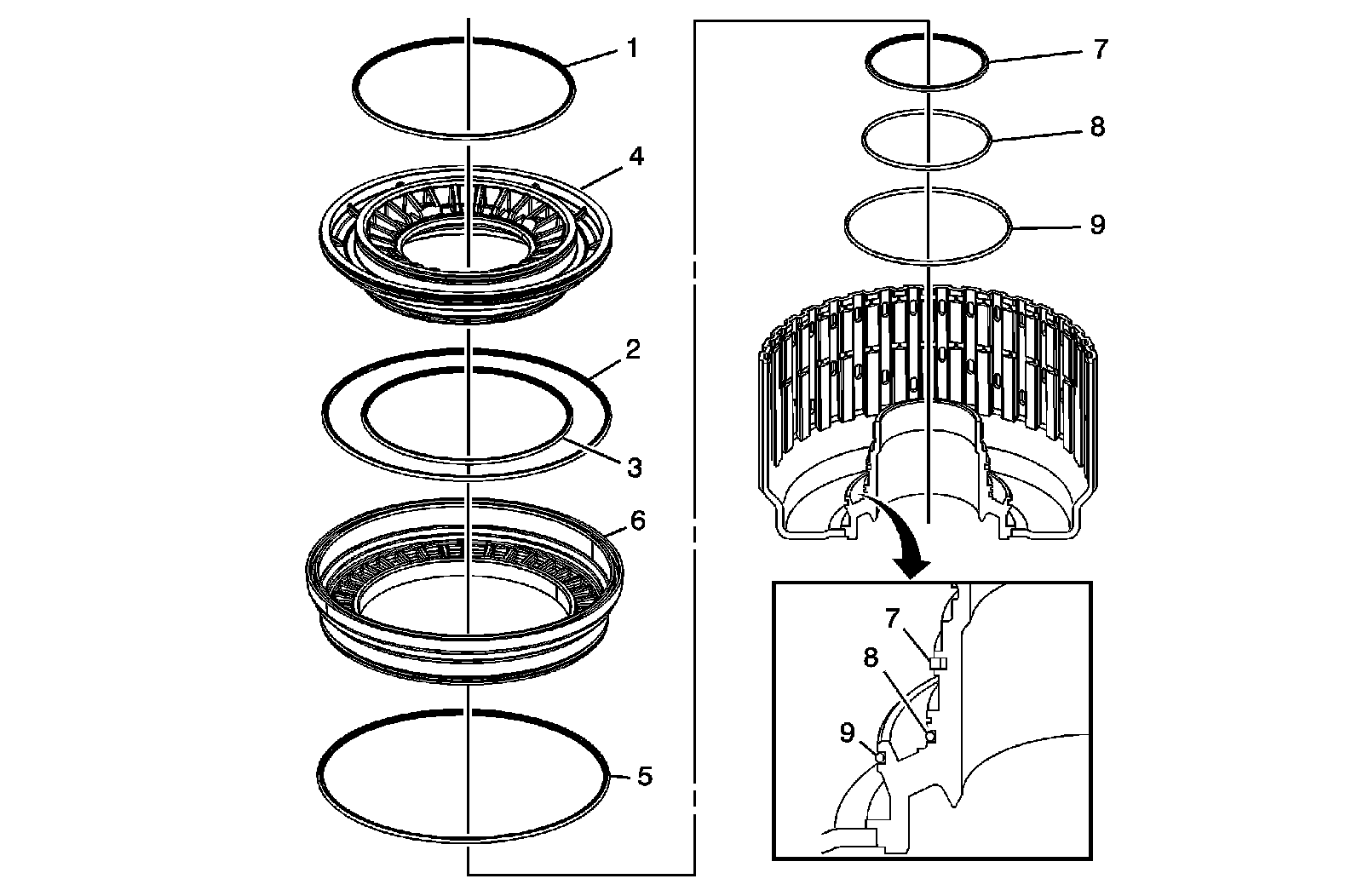

1-2-3-4 and 3-5 Reverse Clutch Piston Seals Replacement

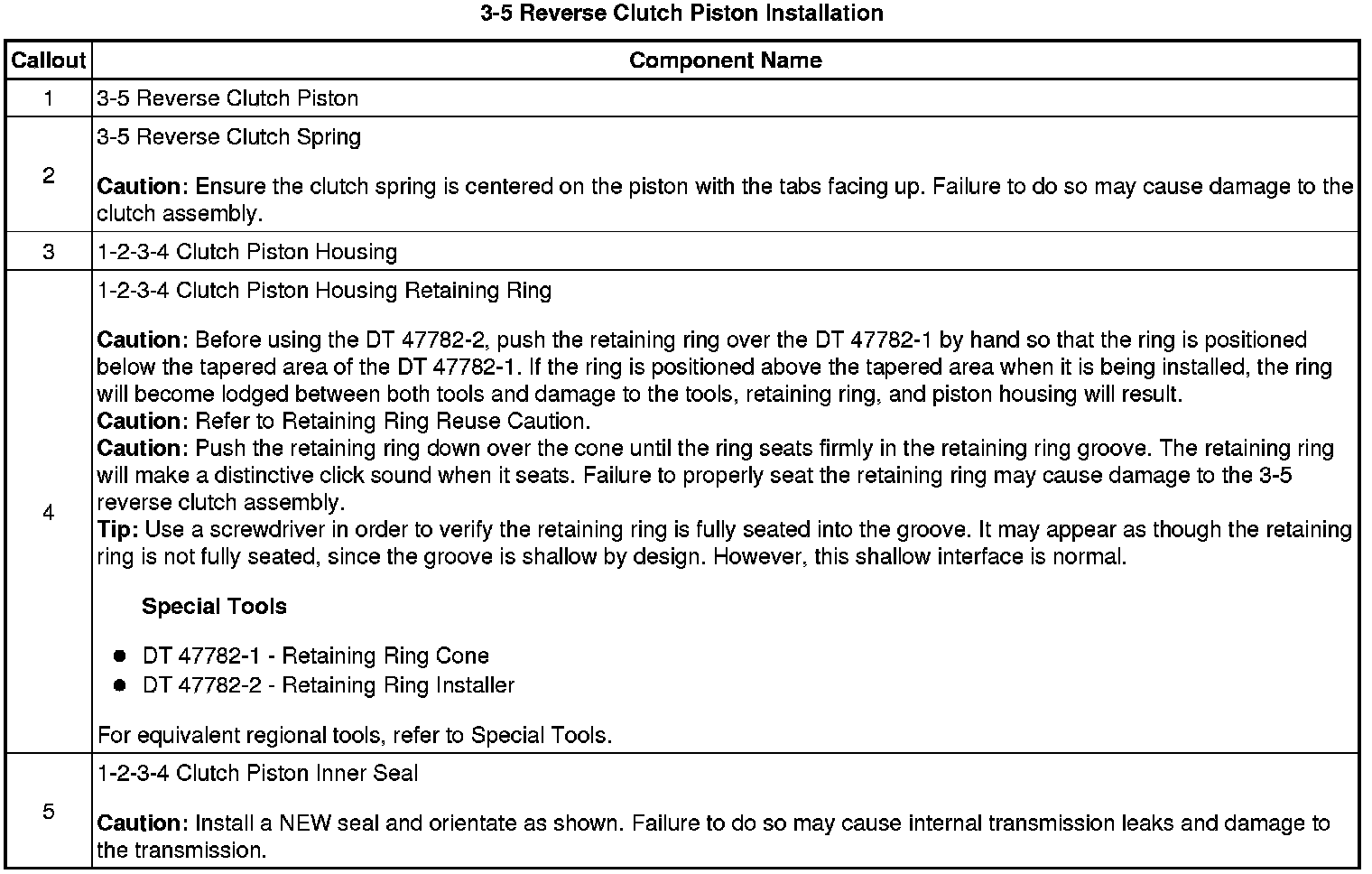

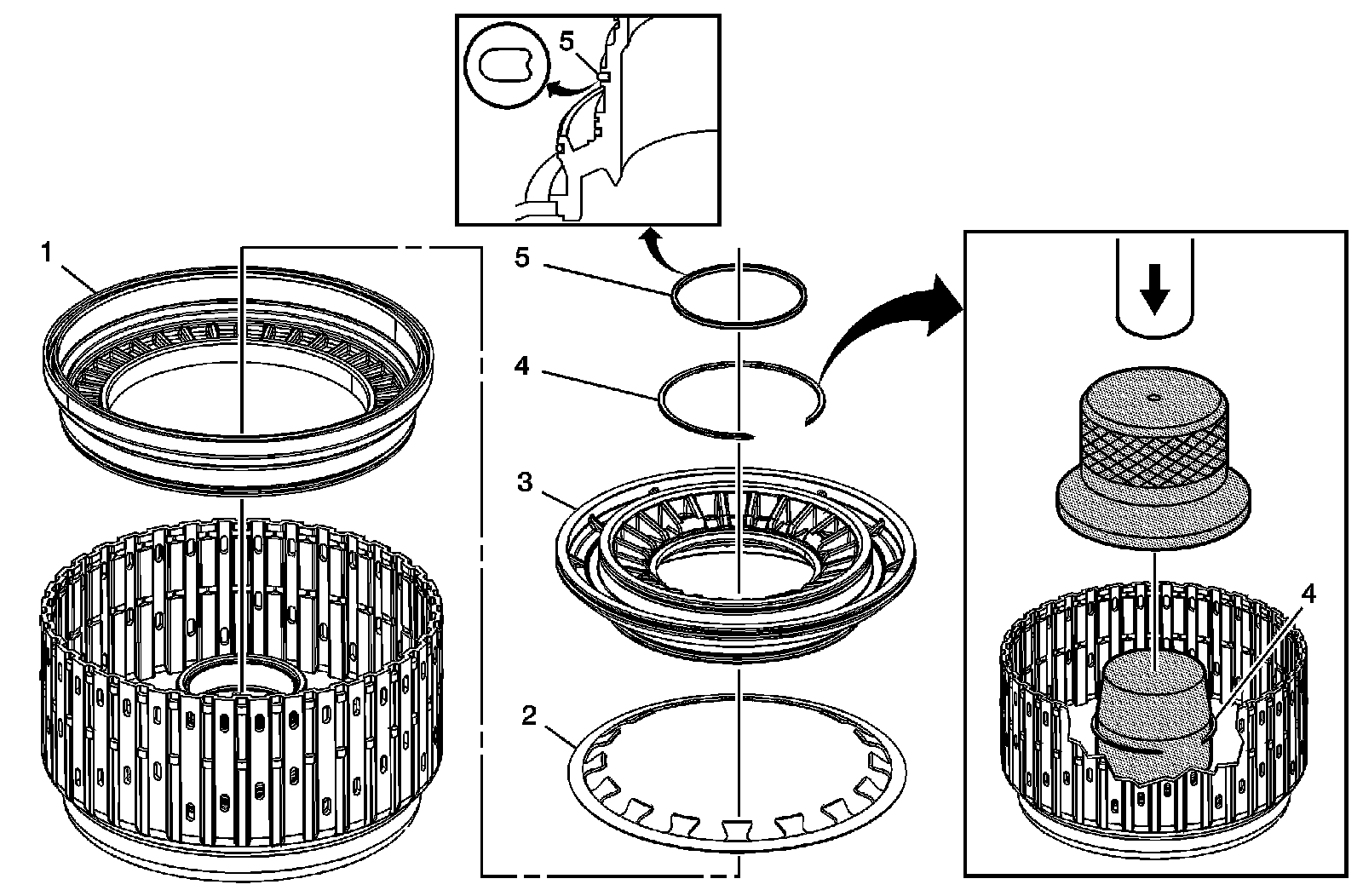

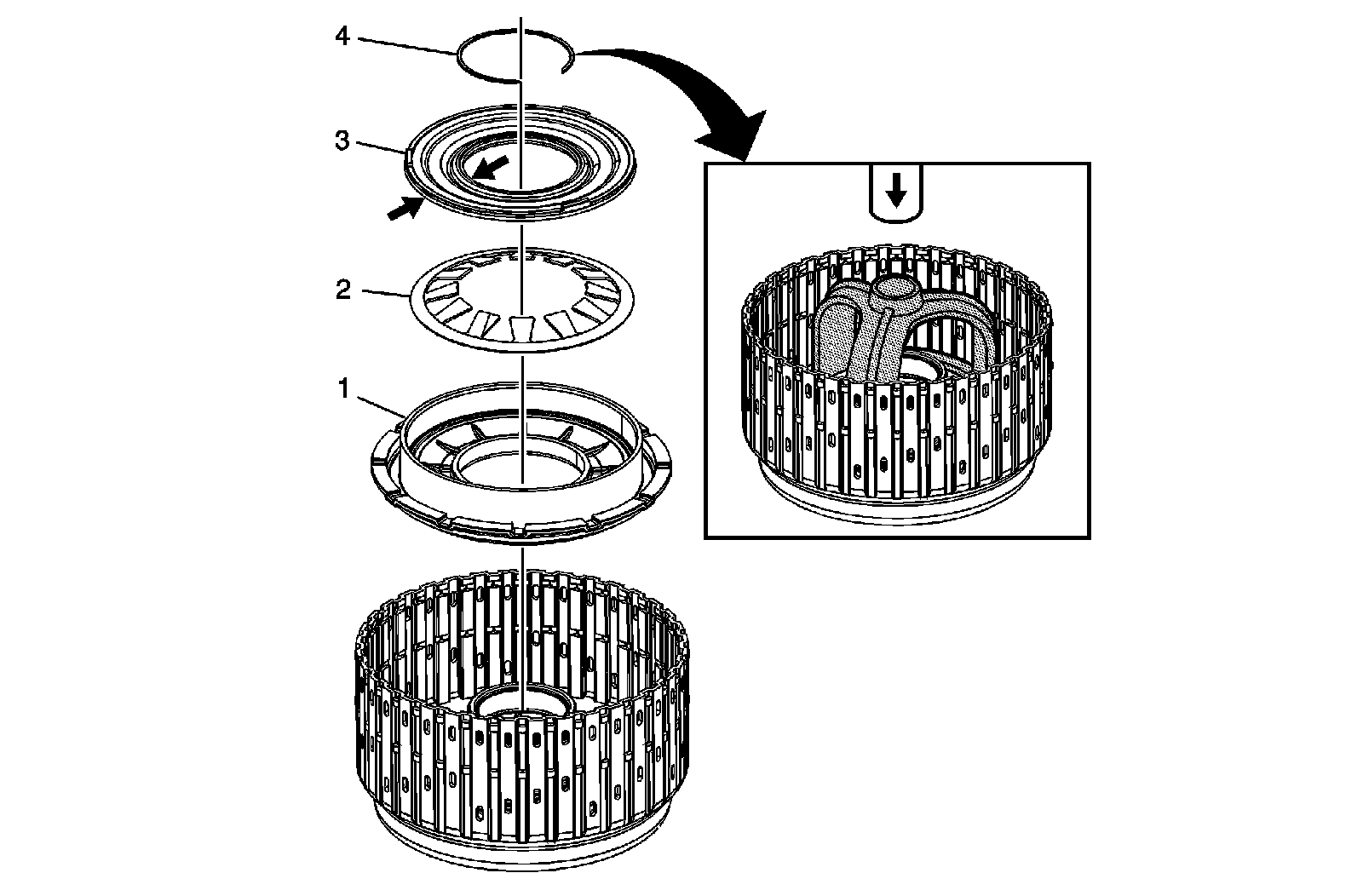

3-5 Reverse Clutch Piston Installation










1-2-3-4 Clutch Piston Installation

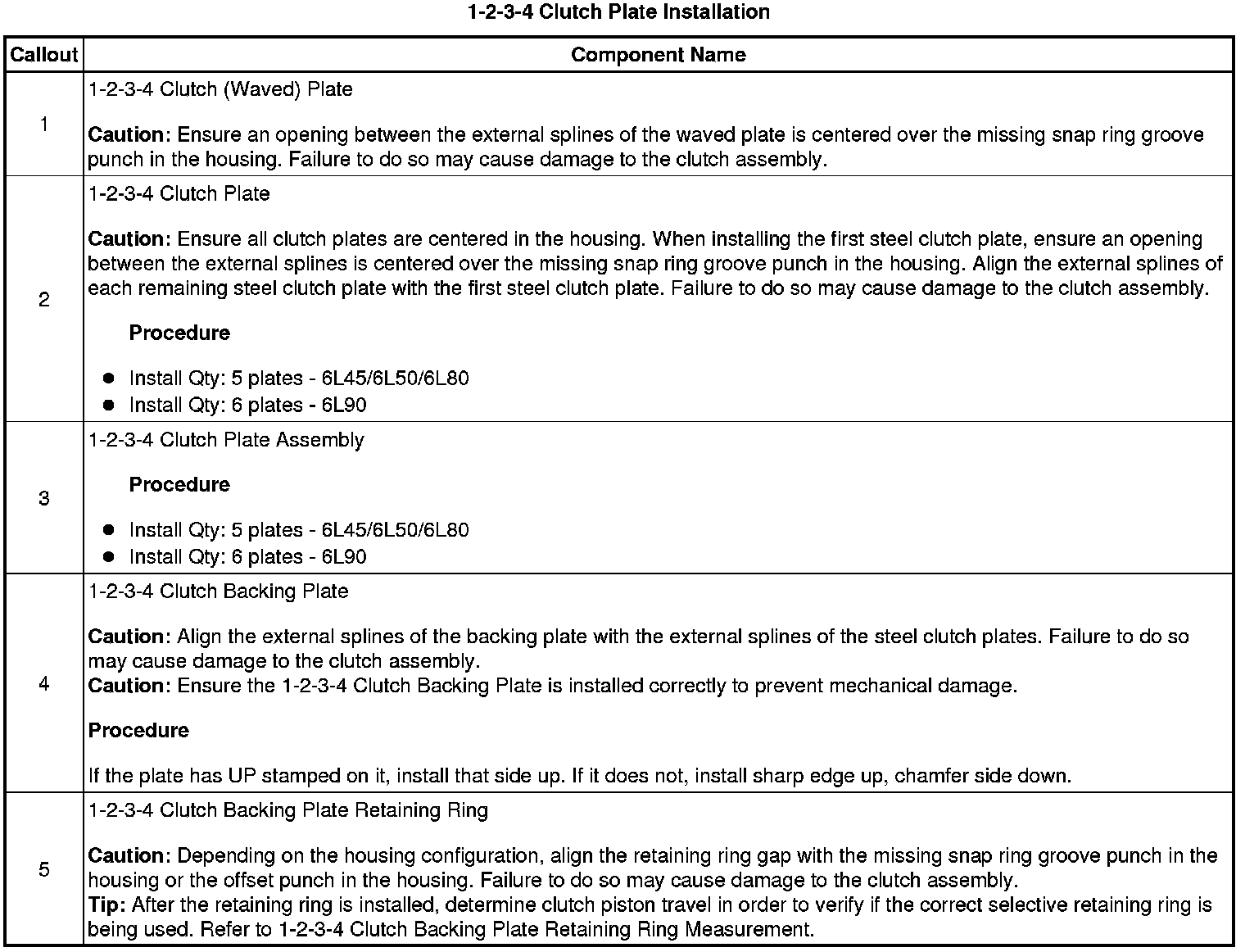

1-2-3-4 Clutch Plate Installation

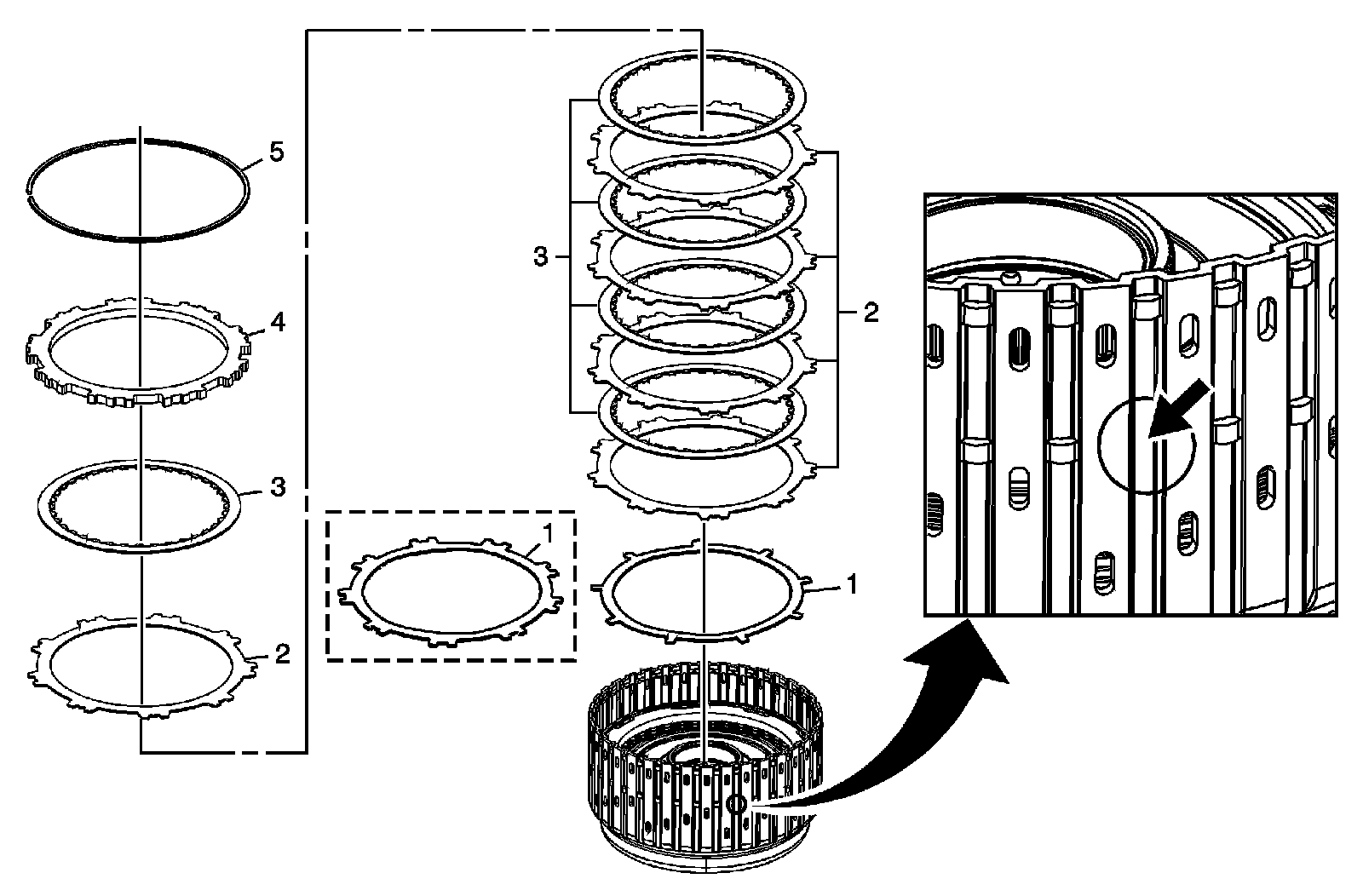

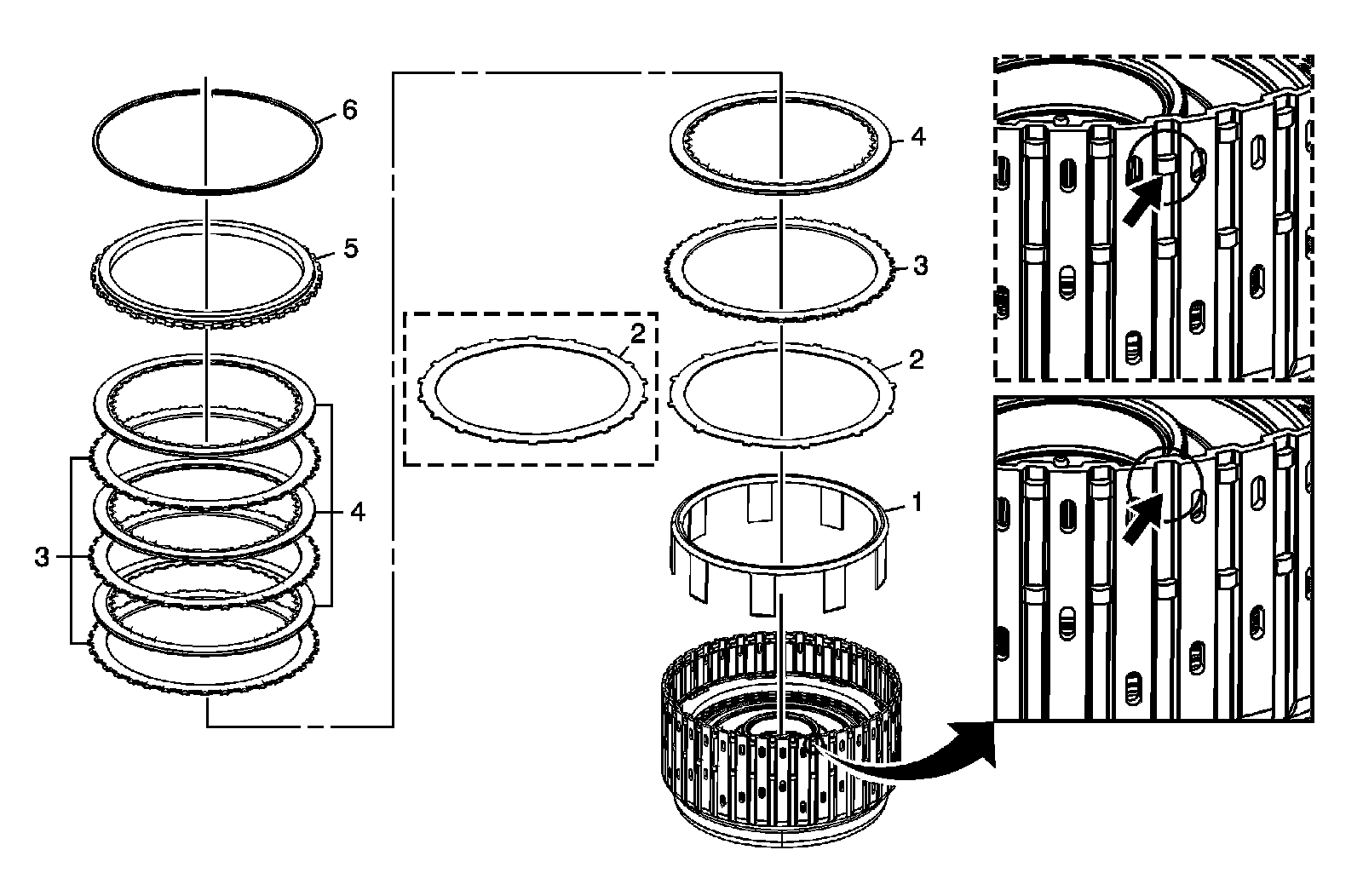

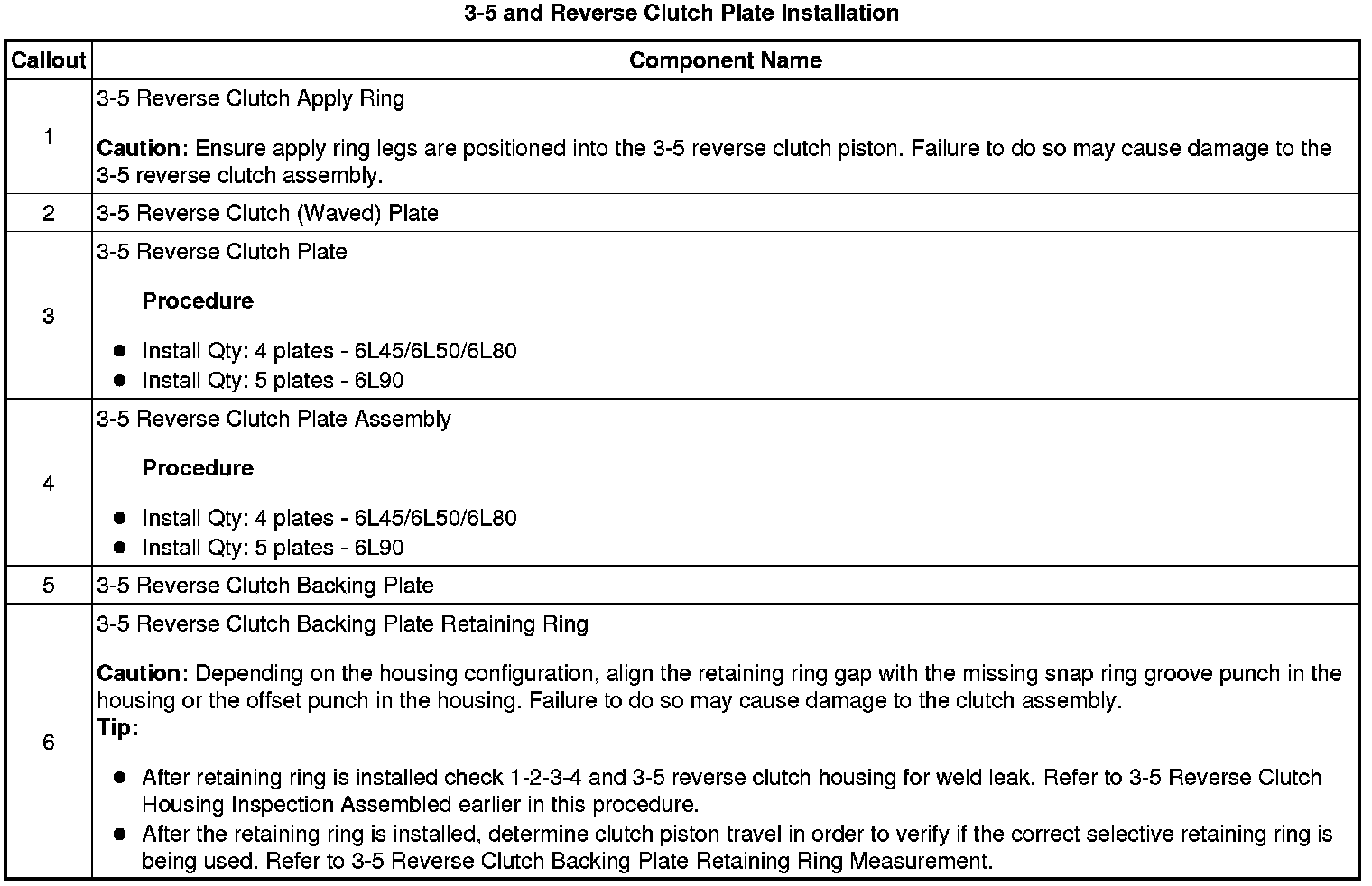

3-5 and Reverse Clutch Plate Installation

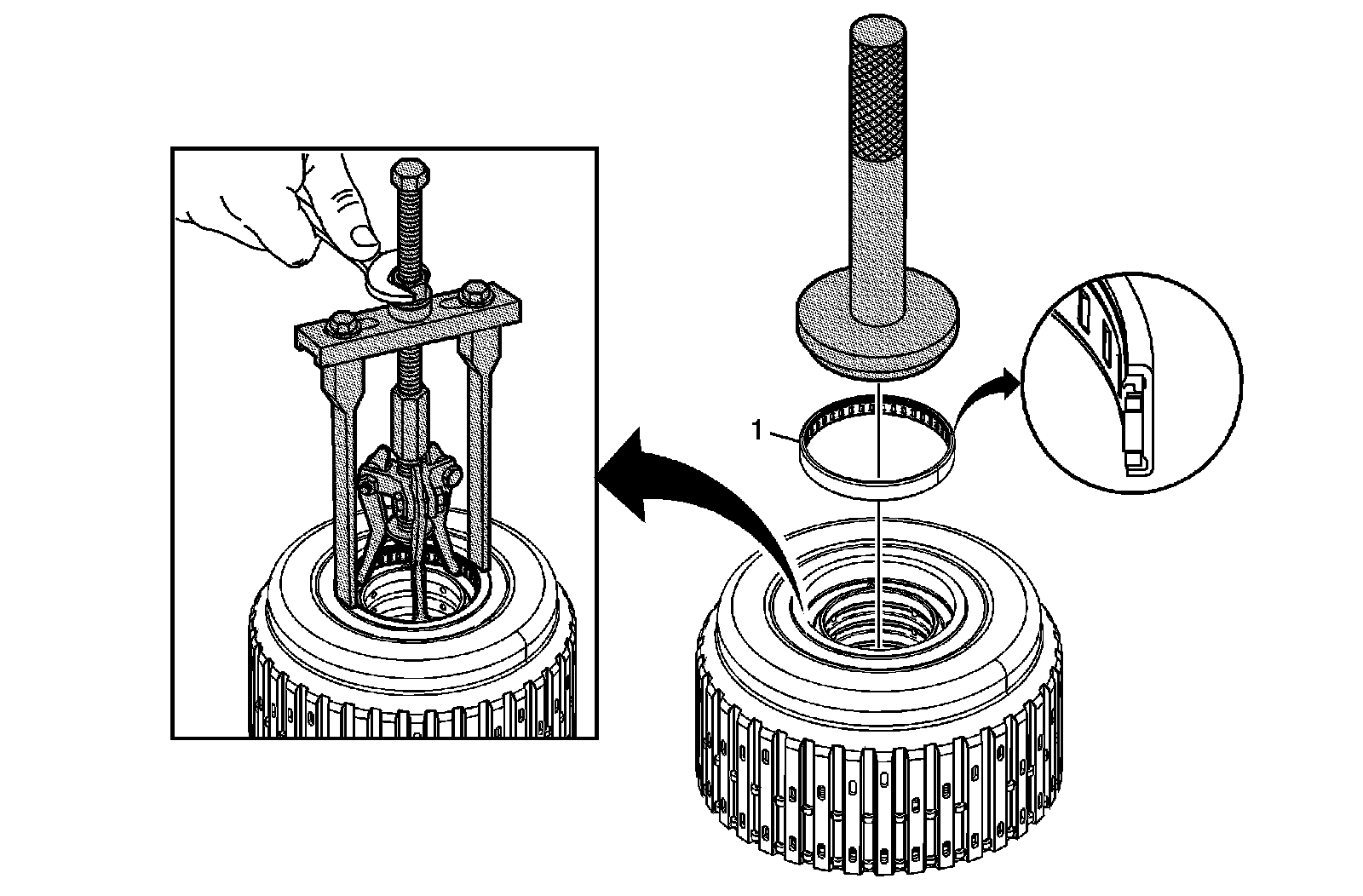

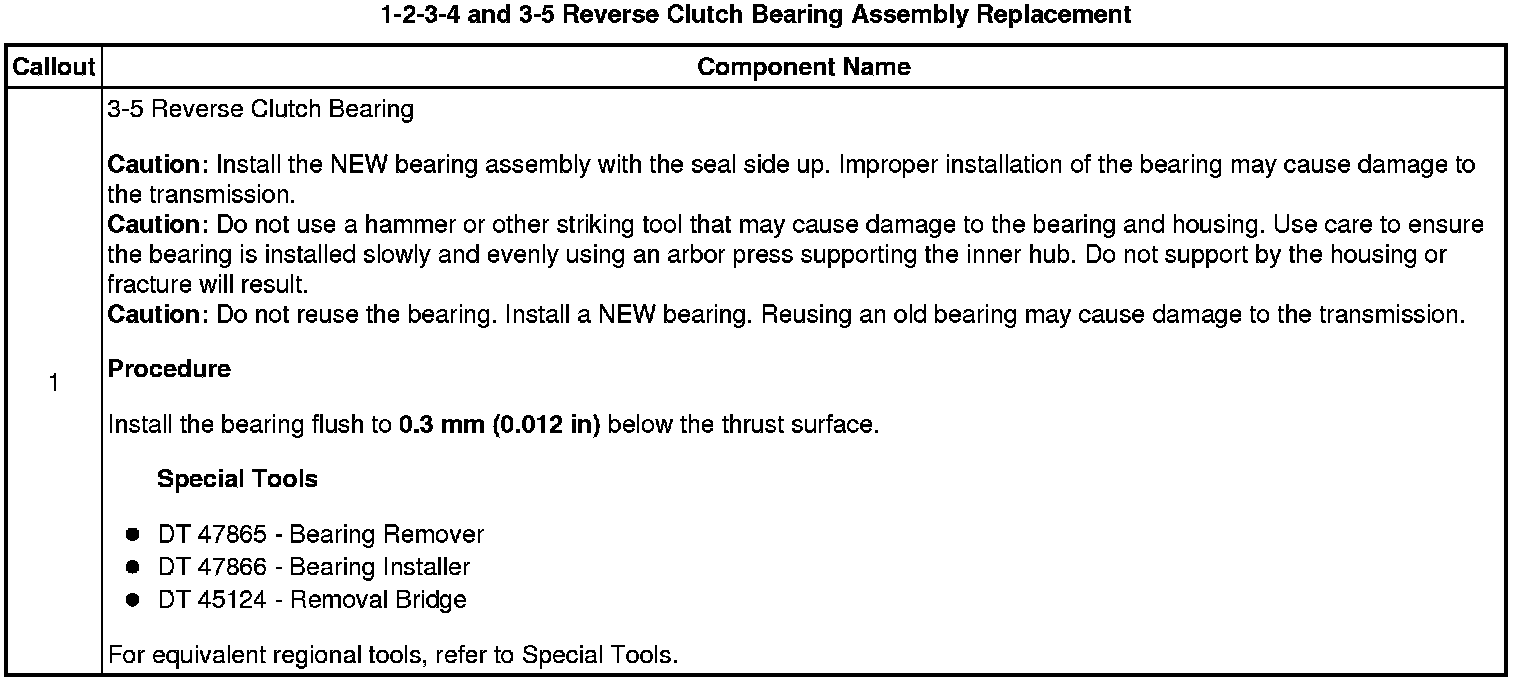

1-2-3-4 and 3-5 Reverse Clutch Bearing Assembly Replacement
