Shift Interlock Solenoid: Locations




Instrument Panel/Center Console Component Views

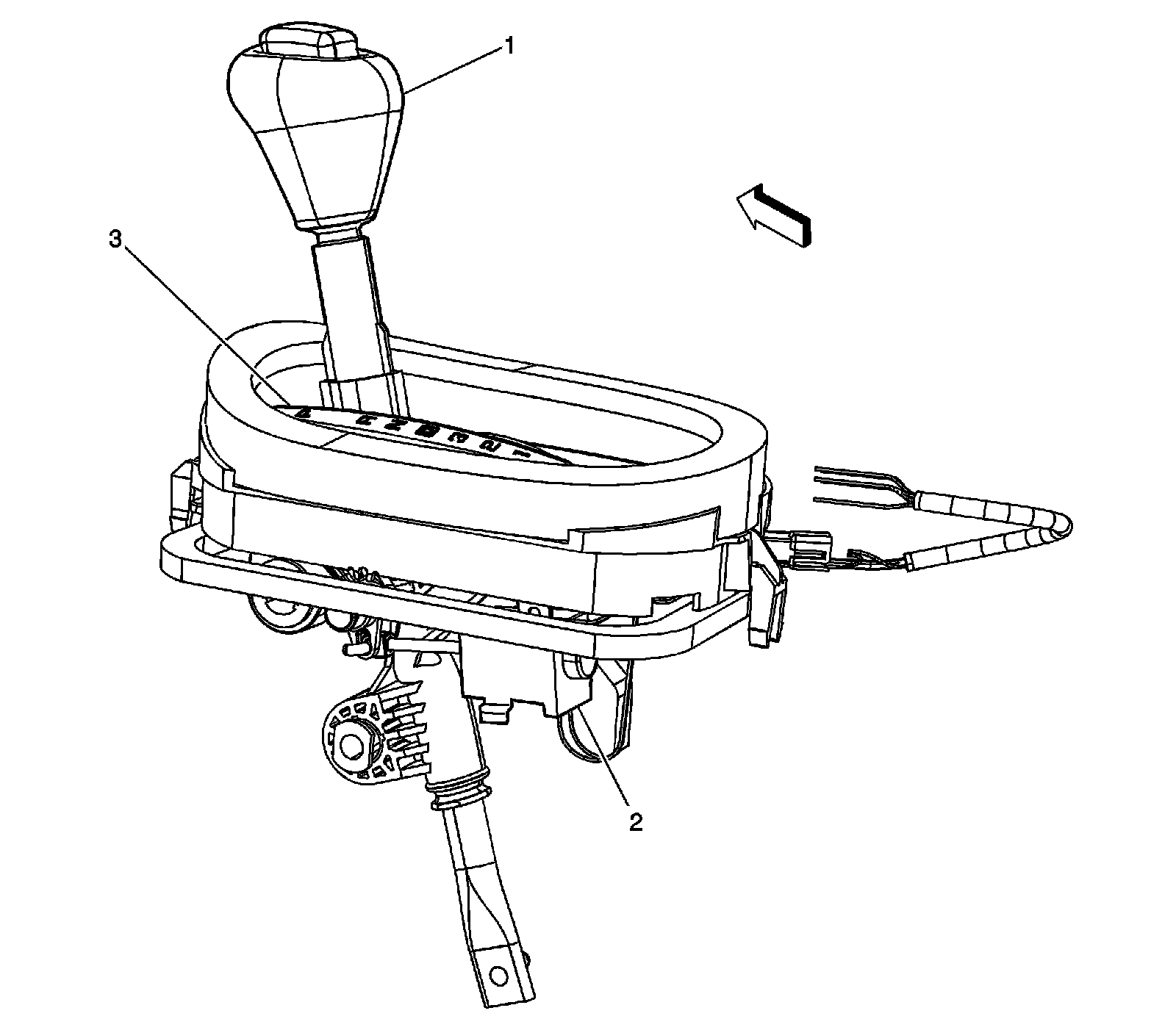

Floor Shift Assembly (MYC)





1 - Automatic Transmission Shift Lever

2 - Automatic Transmission Shift Lock Control Solenoid

3 - Automatic Transmission Shift Lever Position Indicator
