Inflatable Restraint Roof Rail Module - Right (ASF)
Inflatable Restraint Roof Rail Module - Right (ASF)

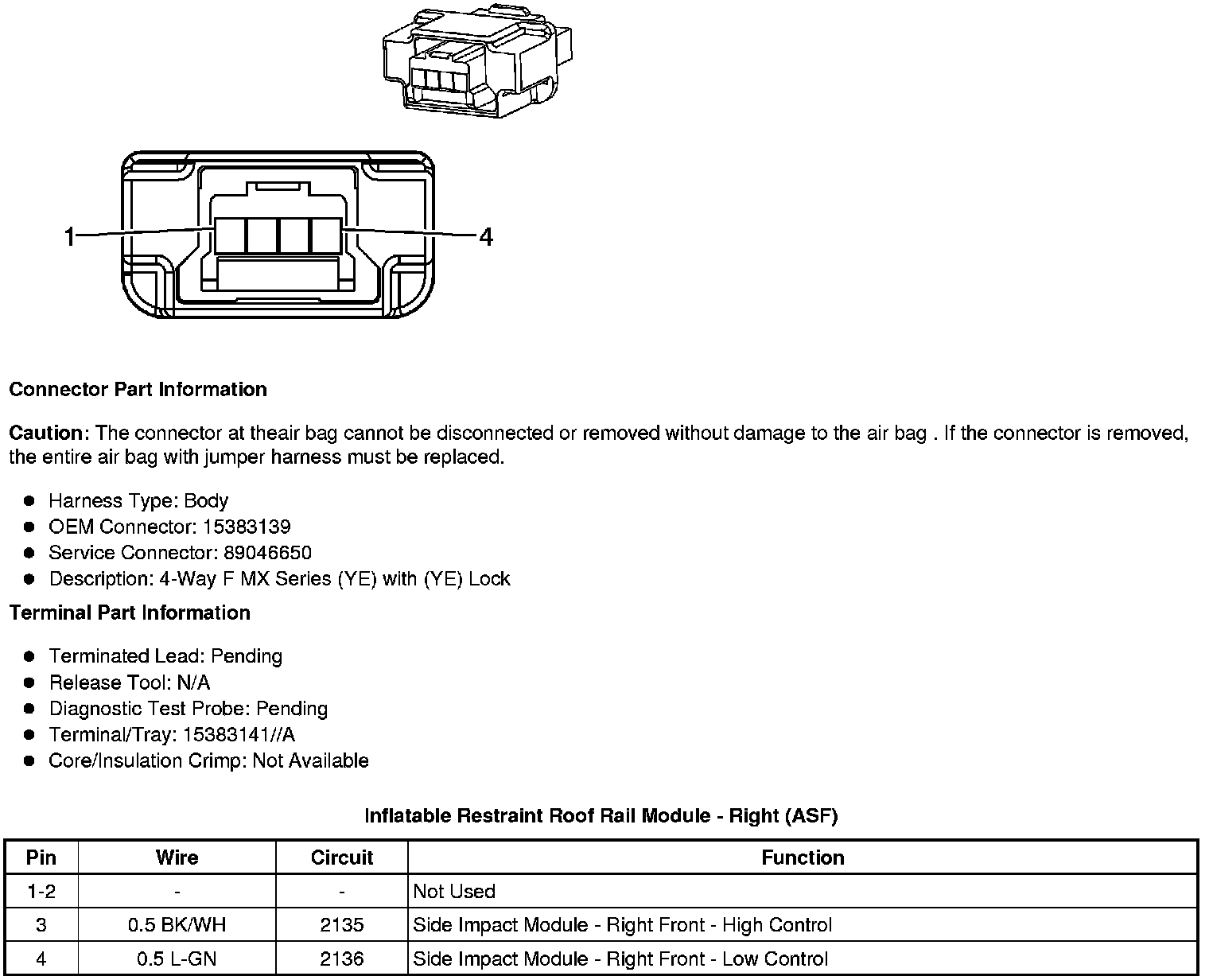

Component Connector End Views
Inflatable Restraint Roof Rail Module - Right (ASF)
