Home
>>
Chevrolet
>>
2012
>>
Colorado 4WD L5-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Diagrams
>>
Ignition Coil 5
Ignition Coil 5

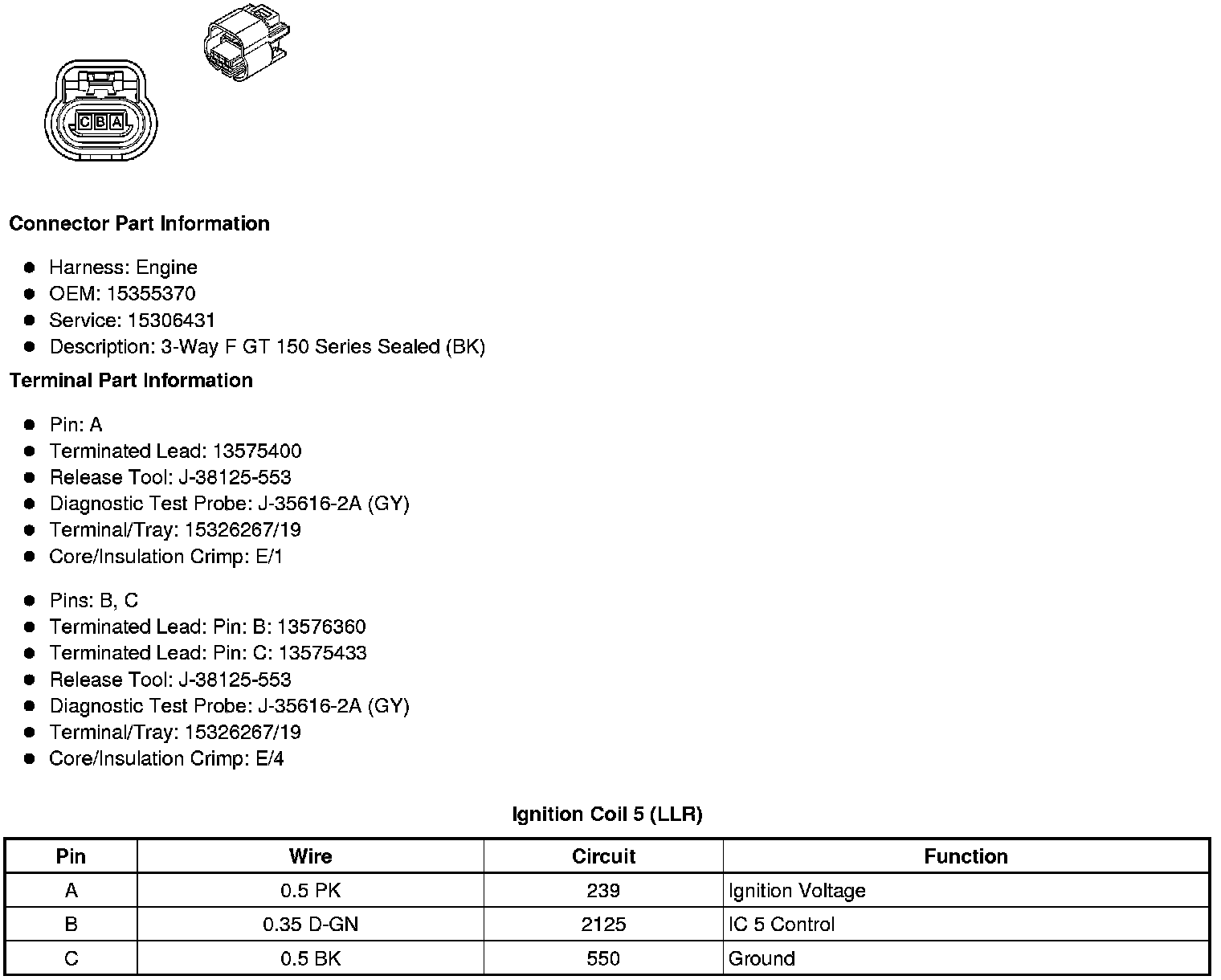

Component Connector End Views
Ignition Coil
5 (LLR)
