Instrument Panel Lower Airbag Replacement (Passengers Side)

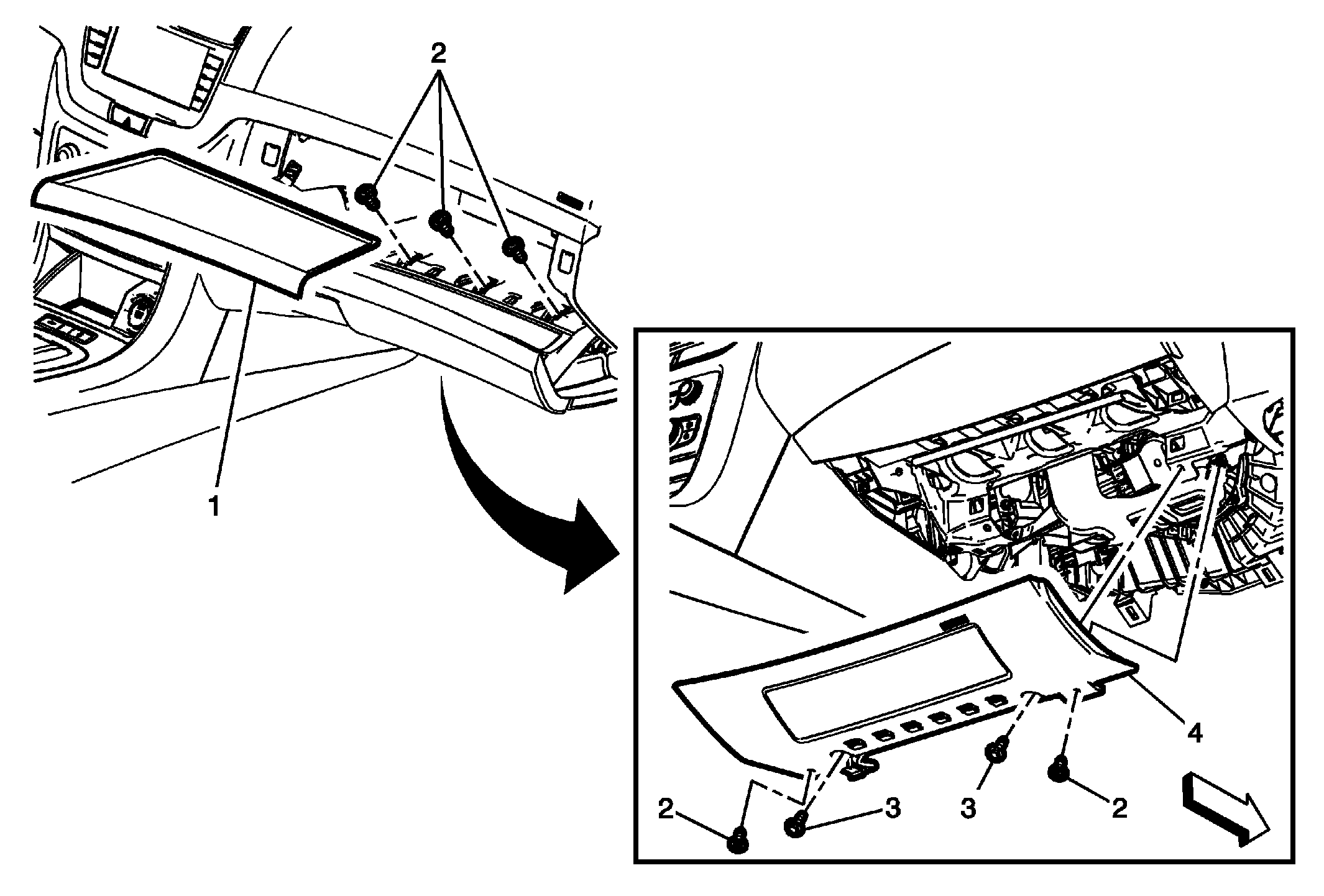

Fig 1: Instrument Panel Lower Airbag (Passengers Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Instrument Panel Tray
2	Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 5) CAUTION: Refer to Fastener Caution .
3	Instrument Panel Inflatable Restraint Module Fastener (Qty: 2) Tighten 9 N.m (80 lb in)
4	Instrument Panel Lower Airbag Assembly Procedure Ensure that the instrument panel inflatable restraint module is fully deployed before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping . Enable the SIR system. Refer to SIR Disabling and Enabling .
