Console Trim Plate Replacement (9C3)

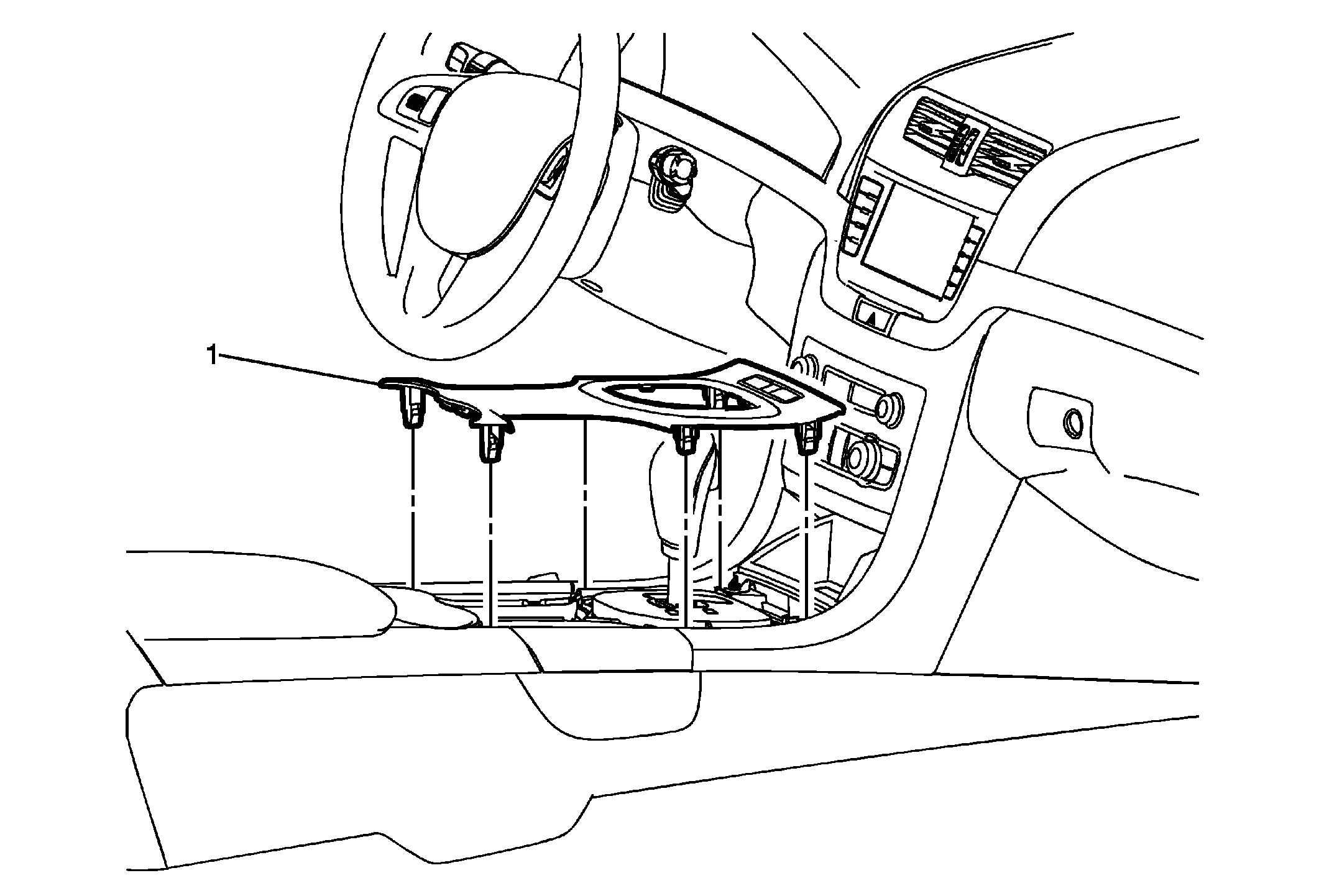

Fig 1: Console Trim Plate (9C3)
GM2546809Courtesy of GENERAL MOTORS COMPANY
Console Trim Plate Replacement (9C3)

Callout Component Name
1 Front Floor Console Front Cover

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the front floor console front cover to the console assembly.
  2. Disconnect the electrical connections.
  3. When replacing the cover, transfer all necessary components.
