Power, Ground, and Subsystem References Wiring Schematics

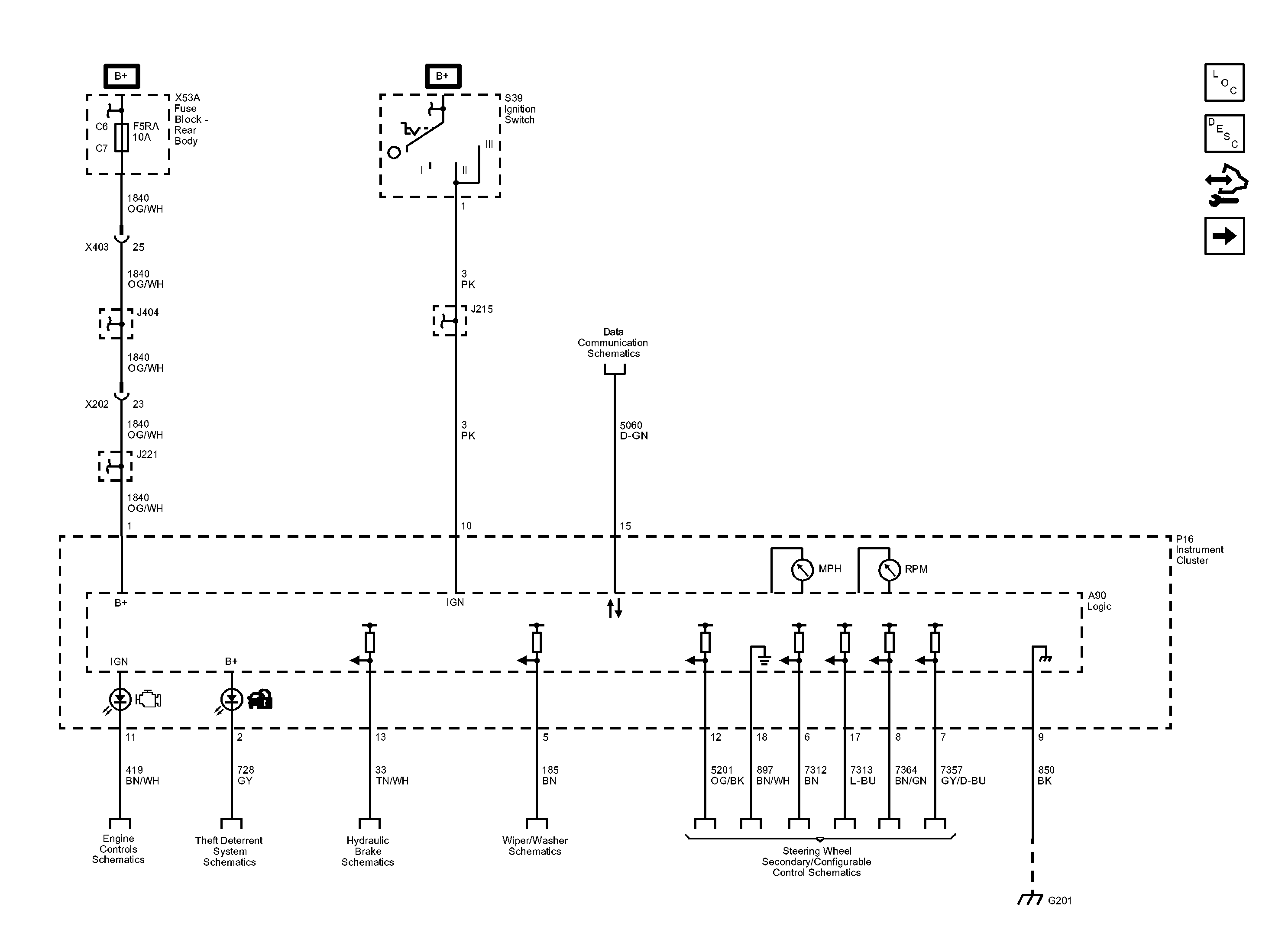

Fig 1: Power, Ground, and Subsystem References Wiring Schematics

GM2662645

Courtesy of GENERAL MOTORS COMPANY
