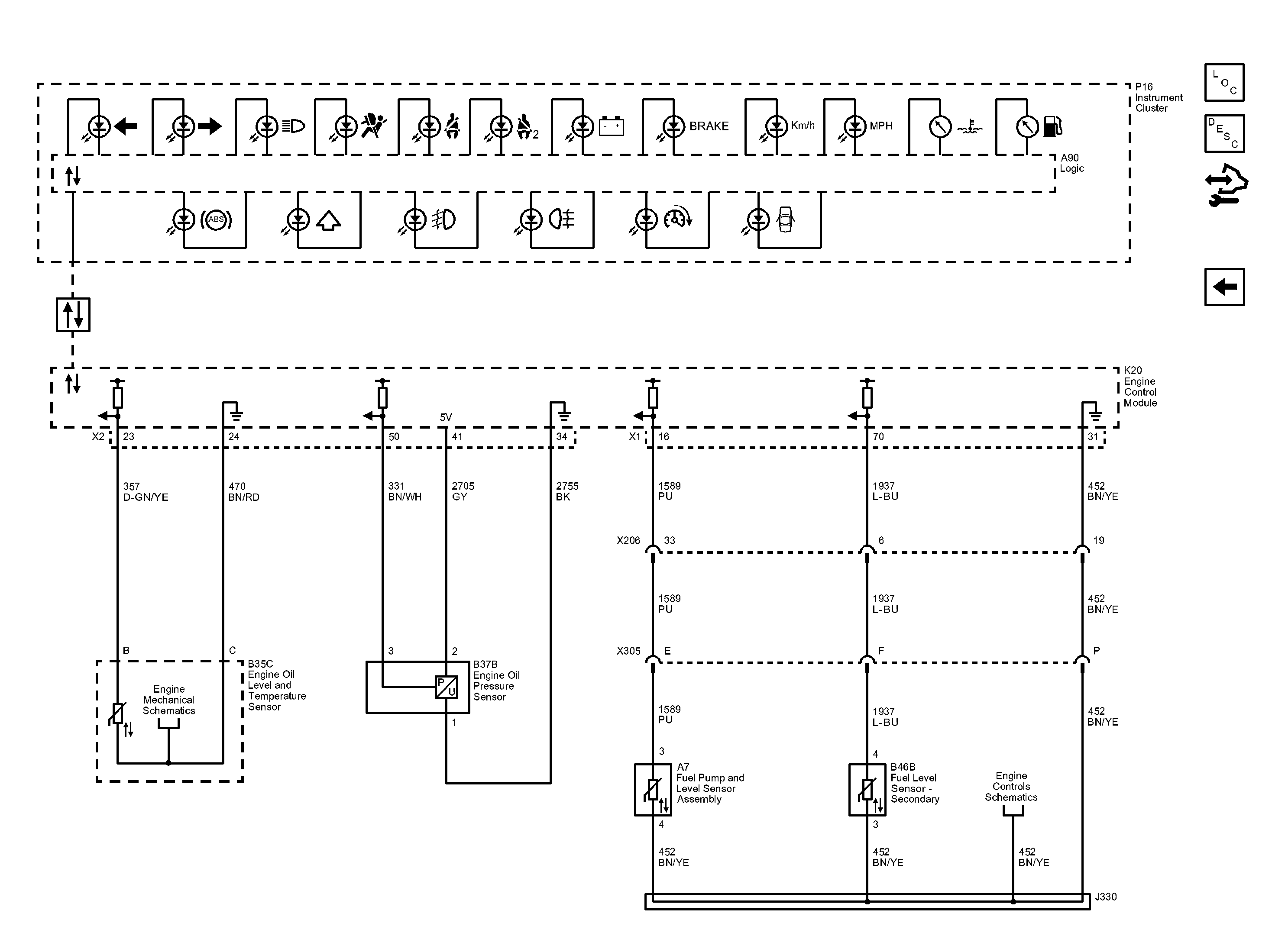

Home >> Chevrolet >> 2012 >> Caprice 6.0 2 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Indicators and Gauges Wiring Schematics
