Headlamp Washer Pump: Locations

Wheels/Vehicle Underbody Component Views

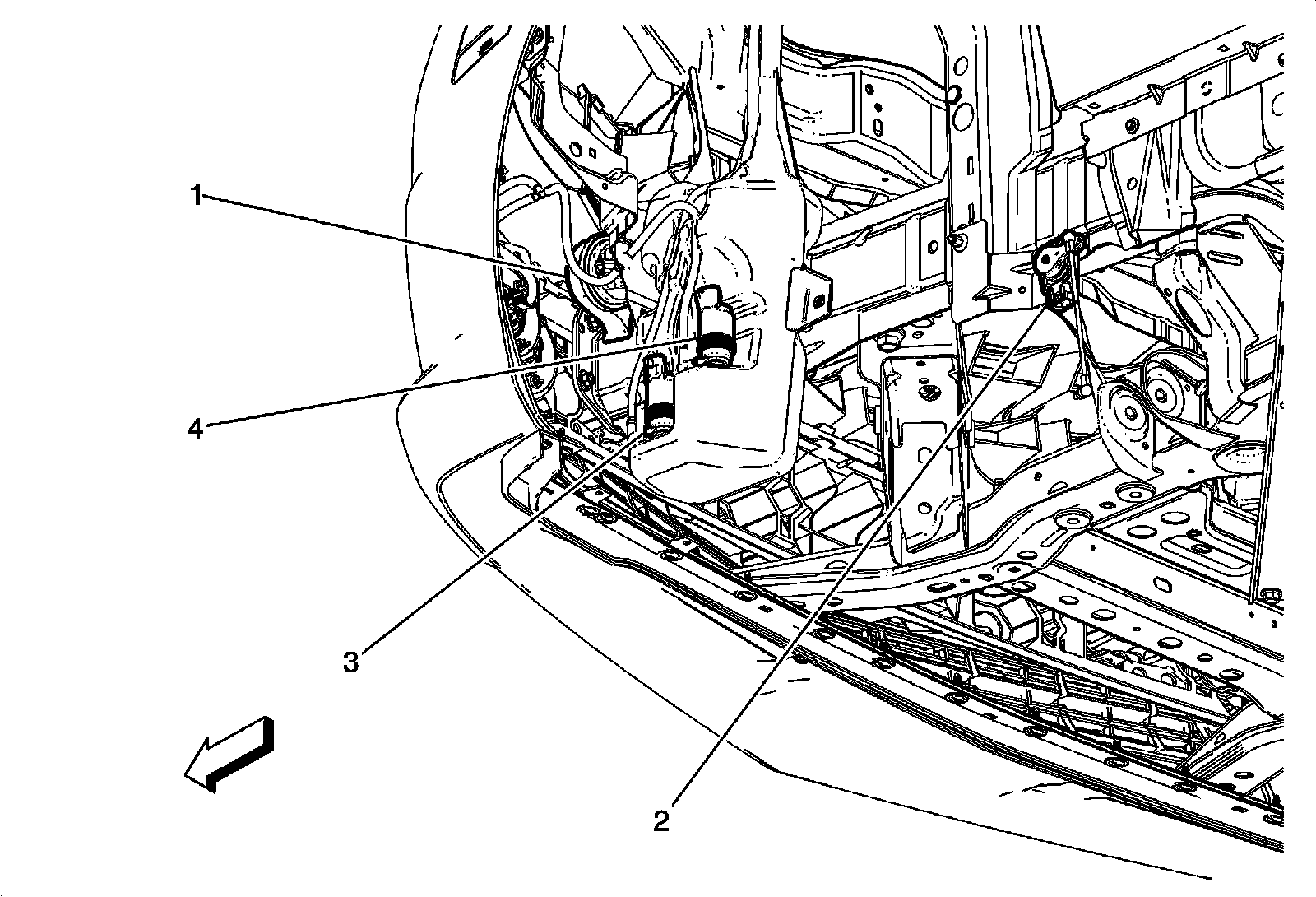

Under the Left Front of the Vehicle Components





1 - P12B Horn - Low Note

2 - B51F Suspension Height Sensor - Front (TR7/F55)

3 - G24 Windshield Washer Pump

4 - G16 Headlamp Washer Fluid Pump (T90)
