Right Side of the Luggage Compartment Components (Convertible)

Luggage Compartment/Rear of Vehicle Component Views

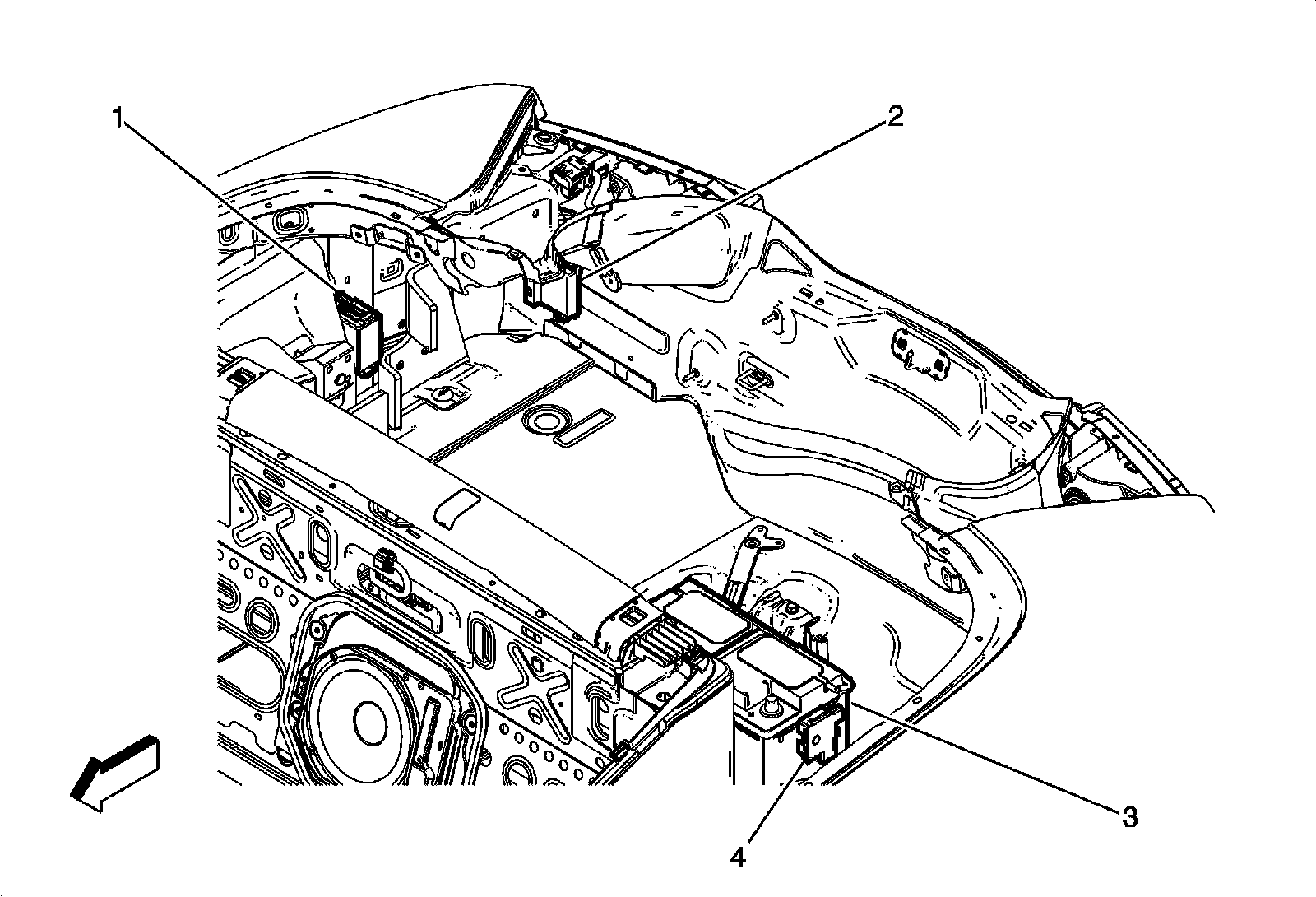

Right Side of the Luggage Compartment Components (Convertible)





1 - X53A Fuse Block- Rear Body

2 - K41 Front and Rear Parking Assist Control Module (UD7)

3 - C1 Battery

4 - X50D Fuse Block- Battery
