Passenger Compartment From Top Right Components (Coupe)




Passenger Compartment/Roof Component Views

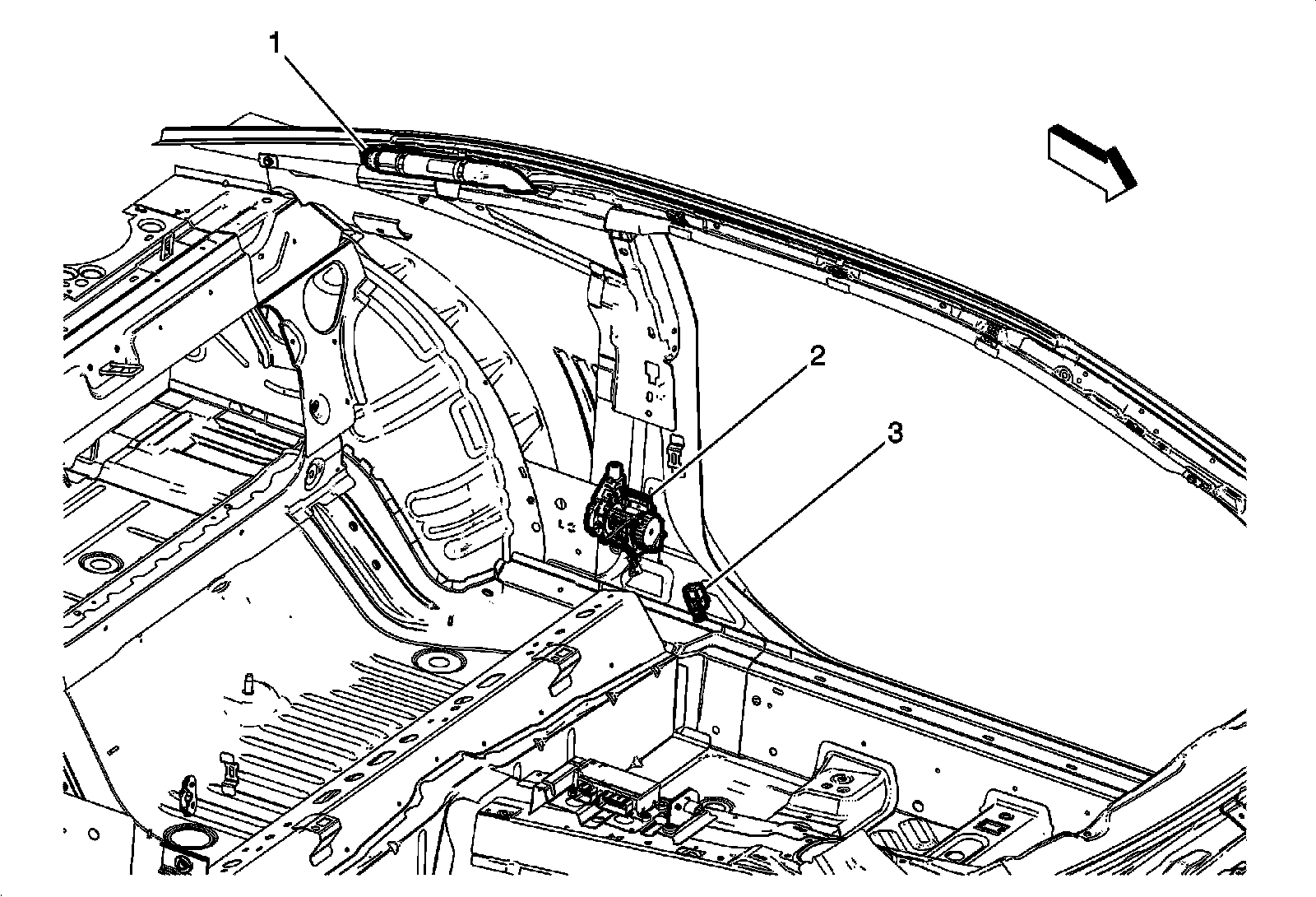

Passenger Compartment From Top Right Components (Coupe)





1 - F105L Roof Rail Air Bag- Left

2 - F112D Seat Belt Retractor Pretensioner- Driver

3 - B63L Side Impact Sensor- Left
